TECO CP-2005.11NSNN

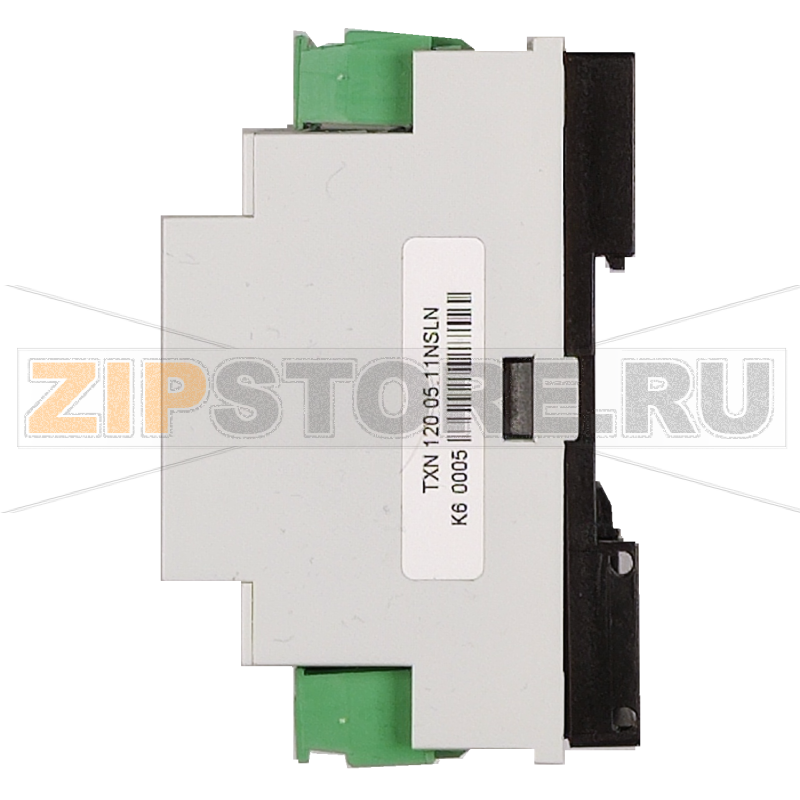

Каталожный номер TXN 120 05.11NSNN
Розничная цена
1891 EUR с НДС
array(34) { ["id"]=> string(6) "446860" ["product_id"]=> string(6) "509129" ["id_1c"]=> NULL ["sku"]=> string(17) "TXN 120 05.11NSNN" ["sort"]=> string(1) "1" ["name"]=> string(0) "" ["image_id"]=> NULL ["price"]=> float(188354) ["primary_price"]=> string(15) "2059.9753167526" ["purchase_price"]=> float(0) ["compare_price"]=> float(0) ["count"]=> NULL ["available"]=> string(1) "1" ["stock_base_ratio"]=> NULL ["order_count_min"]=> NULL ["order_count_step"]=> NULL ["status"]=> string(1) "1" ["dimension_id"]=> NULL ["file_name"]=> string(0) "" ["file_size"]=> string(1) "0" ["file_description"]=> NULL ["virtual"]=> string(1) "0" ["ymleasyimport_price_id"]=> string(32) "06140267e13d79c673e3b0f8481665d5" ["id_xmlimport"]=> NULL ["stock"]=> array(0) { } ["unconverted_currency"]=> string(3) "EUR" ["currency"]=> string(3) "RUB" ["frontend_price"]=> float(188354) ["unconverted_price"]=> float(1891) ["frontend_compare_price"]=> float(0) ["unconverted_compare_price"]=> float(0) ["original_price"]=> float(188354) ["original_compare_price"]=> float(0) ["features"]=> array(0) { } }
188354 с НДС
Последнее обновление базы:
-
+
Купить в 1 клик
Скидки от суммы заказа
Гарантия от производителя
Ходовые товары на складе
Наличный и безналичный расчет
Доставка по России и СНГ
Добавлено в корзину!

Товаров: 0

На сумму: 0

Продолжить покупки
Оформить заказ
Описание
Оплата
Доставка
Гарантия
Инструкции

Описание товара

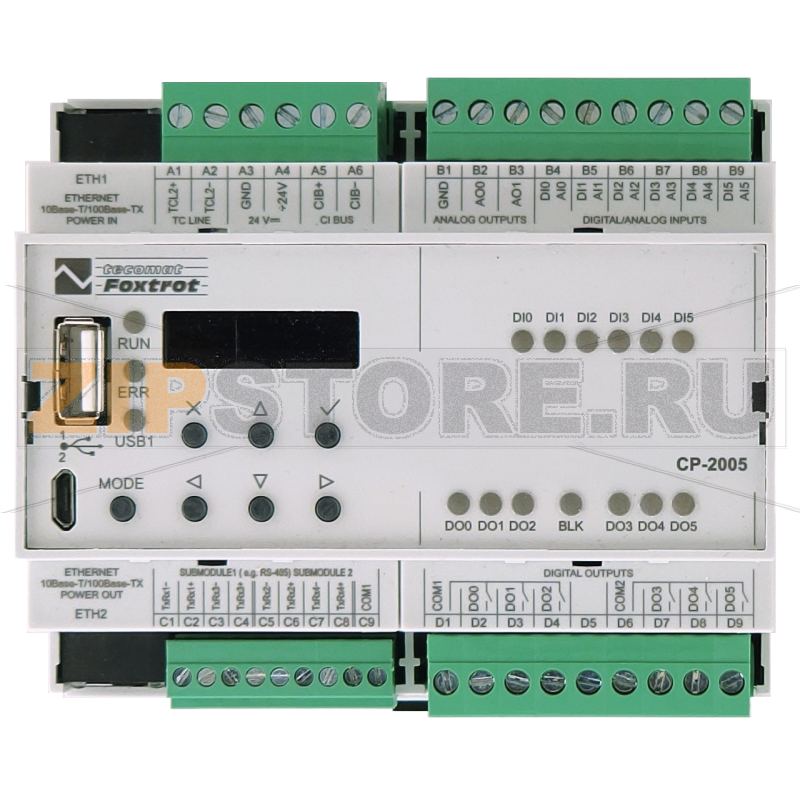

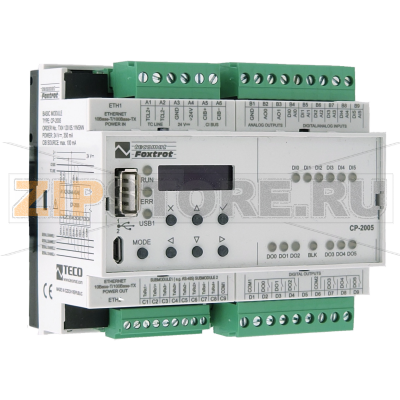

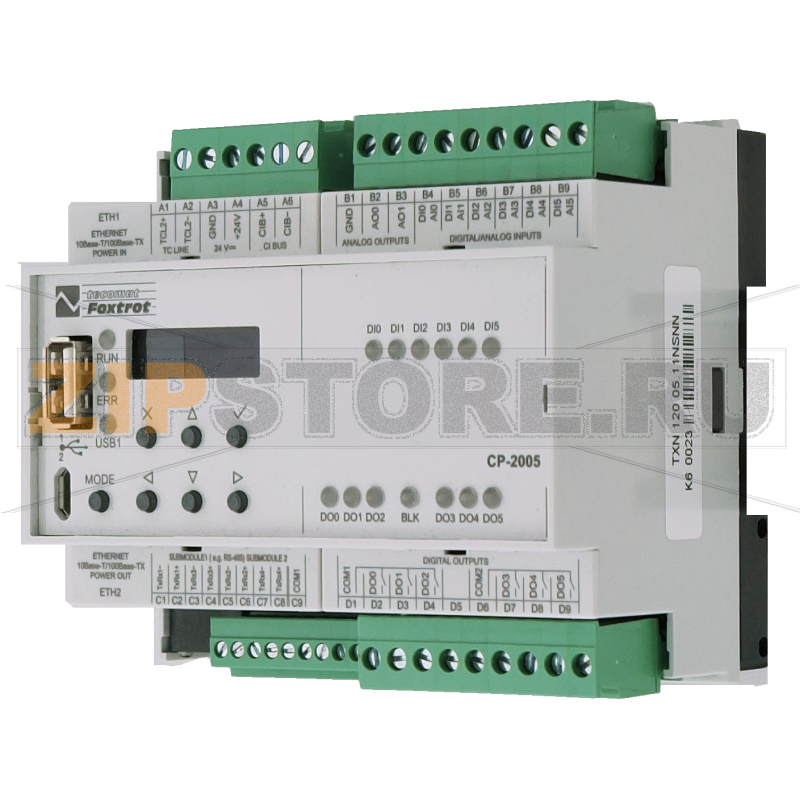

CP-2005 is a second-generation Foxtrot basic module, which is an optimal combination of a central unit with an integrated combination of 12 digital and analog inputs and outputs, compact size occupying a width of 6 modules on a DIN rail. It is thus possible to have a variant with a built-in LTE modem for direct connection to the Internet via a mobile operator.
Of course, there are masters of both system expansion buses - TCL2 (up to 10 addressable modules) and two-wire CIB Common Installation Bus® (up to 32 addressable modules). It can therefore be extended in the same way as other basic modules.

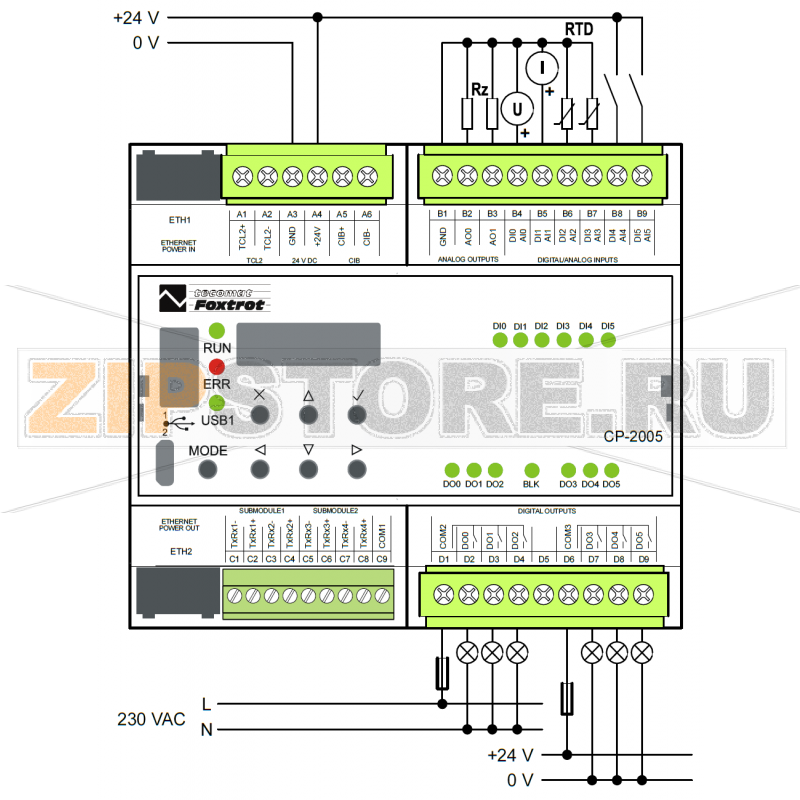

It is equipped with a total of 12 I / Os:
  •     six multipurpose inputs, each of which can be used either as analog or as binary
  •     two analog outputs for proportional control of various connected devices.
  •     six separate relay outputs organized into two groups of three with their own common terminal

Communication capabilities of the basic module CP-2005:
  •     2x Ethernet interface 100 Mbit / s, each with up to 32 simultaneous connections (programming and general IP communication)
  •     USB micro (programming)
  •     USB A for Flas memory, WiFi adapter (client and AP - Access point) etc.
  •     Variant with built-in LTE modem for direct wireless connection to the Internet via a mobile network operator

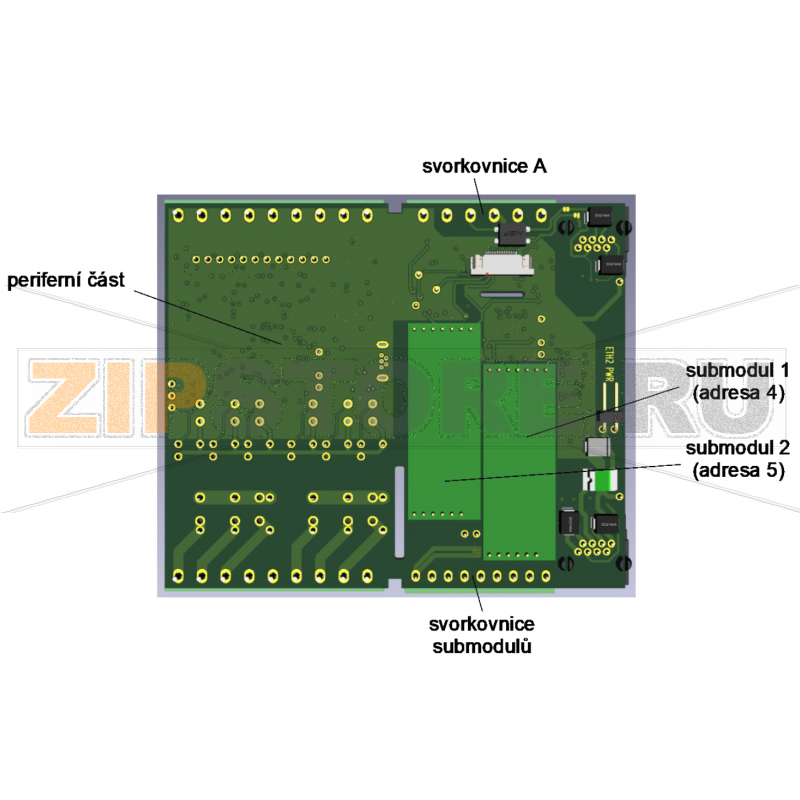

  •     Slots for up to 4 optional serial interfaces RS-485, RS-232

24 V DC power supply, possibility of direct connection of a backup battery for uninterrupted operation in case of 230 V AC mains failures.

CP-2005 is equipped with a new powerful central unit (CPU series L) with memory
  •     1 MB for user program,
  •     128 MB internal disk for storing files with parallel access from the LAN as a network disk,
  •     16MB fast RAM disk
  •     128/256 kB Datalobox
  •     microSD card slot up to 1 TB
  •     File management is provided by a journaling file system
  •     Local communication with the user via OLED display (4 lines / graphic) and 6-key keyboard
