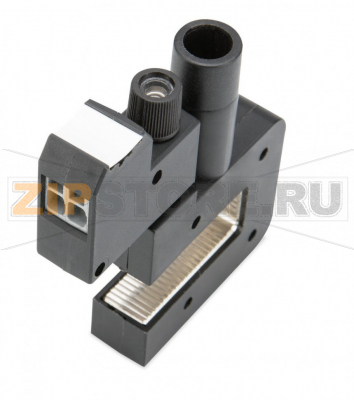

Power tap; for busbar; with fuse; Clamping connection Wago 855-8015

Name: Power tap; for busbar; with fuse; Clamping connection Wago 855-8015
Brand: Wago
SKU: 855-8015

Каталожный номер 855-8015

Power tap; for busbar; with fuse; Clamping connection Wago 855-8015 Short description:WAGO's Voltage Taps serve as busbar taps for measuring L- or N-conductors and are equipped with an integrated SIBA fuse with indicator. The built-in fuse is located directly above the voltage-carrying busbar. In the event of an overload and short circuit, the downstream measurement unit is safely disconnected before major damage occurs.The voltage taps can be mounted directly on the busbar. Clamp mount via Allen screw is performed using an insulated Allen wrench and provides an excellent contact between the busbar and the fuse. This ensures high operational safety and short-circuit protection.The measurement line is connected via Push-in CAGE CLAMP®, the universal connection technology for all conductor types that provides the simplicity of push-in terminations. Rigid conductors, such as solid and stranded conductors, as well as fine-stranded conductors with ferrules, can be terminated by simply pushing them in – no operating tool needed. The connection unit with a fuse and Push-in CAGE CLAMP® rotates (±120°). This creates additional added value by directly guiding subsequent wiring into the cable channel.In addition, the voltage taps can be labeled with two different marking options.Features:Fuse-protected voltage tap for measurement purposesSafe protection through integrated fuse with indicator (measurement line/device)WAGO push-in termination technologyWAGO labeling options (WMB markers or marking strips)Примечание:Spare fuse: WAGO 855-8020...

Power tap; for busbar; with fuse; Clamping connection Wago 855-8015 - Power tap; for busbar; with fuse; Clamping connection Wago 855-8015

Розничная цена

73.98 $ с НДС

array(34) { ["id"]=> string(6) "171154" ["product_id"]=> string(6) "233768" ["id_1c"]=> NULL ["sku"]=> string(8) "855-8015" ["sort"]=> string(1) "0" ["name"]=> string(8) "855-8015" ["image_id"]=> NULL ["price"]=> float(7029) ["primary_price"]=> string(9) "73.987254" ["purchase_price"]=> float(0) ["compare_price"]=> float(0) ["count"]=> NULL ["available"]=> string(1) "1" ["stock_base_ratio"]=> NULL ["order_count_min"]=> NULL ["order_count_step"]=> NULL ["status"]=> string(1) "1" ["dimension_id"]=> NULL ["file_name"]=> string(0) "" ["file_size"]=> string(1) "0" ["file_description"]=> NULL ["virtual"]=> string(1) "0" ["ymleasyimport_price_id"]=> NULL ["id_xmlimport"]=> NULL ["stock"]=> array(0) { } ["unconverted_currency"]=> string(3) "USD" ["currency"]=> string(3) "RUB" ["frontend_price"]=> float(7029) ["unconverted_price"]=> float(73.98) ["frontend_compare_price"]=> float(0) ["unconverted_compare_price"]=> float(0) ["original_price"]=> float(7029) ["original_compare_price"]=> float(0) ["features"]=> array(4) { ["brend"]=> array(1) { [1754]=> string(4) "Wago" } ["zakaz_kratno"]=> string(1) "1" ["min_zakaz"]=> string(1) "1" ["weight"]=> object(shopDimensionValue)#1041 (10) { ["id":"shopDimensionValue":private]=> string(1) "4" ["value":"shopDimensionValue":private]=> string(1) "0" ["unit":"shopDimensionValue":private]=> string(2) "kg" ["type":"shopDimensionValue":private]=> string(6) "weight" ["units":"shopDimensionValue":private]=> array(6) { ["t"]=> array(3) { ["value"]=> string(1) "t" ["title"]=> string(2) "т" ["description"]=> NULL } ["kg"]=> array(3) { ["value"]=> string(2) "kg" ["title"]=> string(4) "кг" ["description"]=> NULL } ["g"]=> array(3) { ["value"]=> string(1) "g" ["title"]=> string(2) "г" ["description"]=> NULL } ["mg"]=> array(3) { ["value"]=> string(2) "mg" ["title"]=> string(4) "мг" ["description"]=> NULL } ["lbs"]=> array(3) { ["value"]=> string(3) "lbs" ["title"]=> string(8) "фунт" ["description"]=> NULL } ["oz"]=> array(3) { ["value"]=> string(2) "oz" ["title"]=> string(10) "унция" ["description"]=> NULL } } ["selected":"shopDimensionValue":private]=> bool(false) ["value_base_unit":"shopDimensionValue":private]=> string(1) "0" ["base_code":"shopDimensionValue":private]=> NULL ["unit_name":"shopDimensionValue":private]=> string(4) "кг" ["format":"shopDimensionValue":private]=> bool(false) } } }

≈ 7029 ₽ с НДС

Последнее обновление базы:

Купить в 1 клик

Скидки от суммы заказа

Гарантия от производителя

Ходовые товары на складе

Наличный и безналичный расчет

Доставка по России и СНГ

Добавлено в корзину!

Товаров: 0

На сумму: 0

Описание

Оплата

Доставка

Гарантия

Инструкции

Описание товара

Short description:

WAGO's Voltage Taps serve as busbar taps for measuring L- or N-conductors and are equipped with an integrated SIBA fuse with indicator. The built-in fuse is located directly above the voltage-carrying busbar. In the event of an overload and short circuit, the downstream measurement unit is safely disconnected before major damage occurs.

The voltage taps can be mounted directly on the busbar. Clamp mount via Allen screw is performed using an insulated Allen wrench and provides an excellent contact between the busbar and the fuse. This ensures high operational safety and short-circuit protection.

The measurement line is connected via Push-in CAGE CLAMP®, the universal connection technology for all conductor types that provides the simplicity of push-in terminations. Rigid conductors, such as solid and stranded conductors, as well as fine-stranded conductors with ferrules, can be terminated by simply pushing them in – no operating tool needed. The connection unit with a fuse and Push-in CAGE CLAMP® rotates (±120°). This creates additional added value by directly guiding subsequent wiring into the cable channel.

In addition, the voltage taps can be labeled with two different marking options.

Features:

Fuse-protected voltage tap for measurement purposes
Safe protection through integrated fuse with indicator (measurement line/device)
WAGO push-in termination technology
WAGO labeling options (WMB markers or marking strips)

Примечание:

Spare fuse: WAGO 855-8020

Технические данные

Output – Voltage tap

Rated voltage	AC 400 V
Fuse (voltage path)	2 A; 450 V; F; 70 kA; 5 x 25 mm

Данные соединения

Технология соединения	Push-in CAGE CLAMP®
WAGO terminal	WAGO 2724 Series
Размеры одножильных проводников	0,2 … 6 mm? / 24 … 10 AWG
Тонкие многожильные проводники	0,2 … 6 mm? / 24 … 10 AWG
Длина снятия изоляции	10 … 12 mm / 0.39 … 0.47 inch
Busbar thickness (min.)	4 mm
Busbar thickness (max.)	15 mm

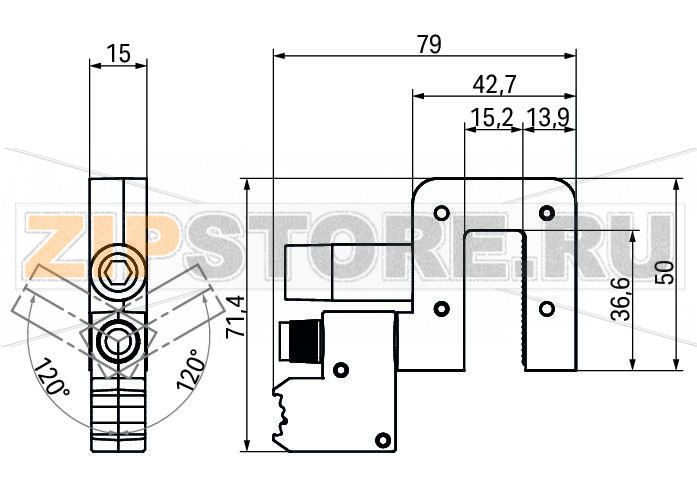

Geometrical Data

Ширина	79 mm / 3.11 inch
Высота	15 mm / 0.591 inch
Длина	72 mm / 2.835 inch

Механические данные

Тип монтажа	Clamp mount
Тип монтажа	Mounting on busbars

Material Data

Вес

160

Environmental Requirements

Surrounding air (operating) temperature	-25 … 70 °C
Surrounding air (storage) temperature	-40 … 85 °C
Relative humidity	5 … 85 % (no condensation)
Max. operating altitude	2000 m
Виброустойчивость	10g (industry; 5 … 2000 Hz; per IEC 60068-2-6); 4g (ship; 5 … 150 Hz; per IEC 60068-2-6)

Стандарты и спецификации:

Стандарты и спецификации

IEC 60947-7-3

Коммерческие данные

Тип упаковки	bag
Country of origin	NL
GTIN	4055143720076
Customs tariff number	85366990990

Характеристики

Производитель	Wago
Заказ кратно	1
Минимальный заказ	1
Вес	0 кг
