| General specifications | ||
|---|---|---|
| Switching function | Normally open (NO) | |
| Output type | NAMUR | |
| Rated operating distance | 35 mm | |
| Installation | flush | |
| Assured operating distance | 0 ... 35 mm | |
| Output type | 2-wire | |
| Nominal ratings | ||
| Nominal voltage | 8.2 V (Ri approx. 1 k&Omega) | |
| Switching frequency | 0 ... 1000 Hz | |
| Current consumption | ||
| Magnet detected | &ge 3 mA | |
| Magnet not detected | &le 1 mA | |
| Switching state indicator | LED, yellow | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| NAMUR | EN 60947-5-6:2000 | |
| Approvals and certificates | ||
| FM approval | ||
| Control drawing | 116-0165F | |
| CCC approval | CCC approval / marking not required for products rated &le36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) | |
| Mechanical specifications | ||
| Connection type | cable PVC , 5 m | |
| Core cross-section | 0.34 mm2 | |
| Housing material | anodized aluminum | |
| Sensing face | PBT | |
| Degree of protection | IP67 | |
| General information | ||
| Use in the hazardous area | see instruction manuals | |
| Category | 2G | |
| Производитель | Pepperl+Fuchs |
Все информационные материалы, представленные на сайте, носят справочный характер и не могут в полной мере передавать достоверную информацию о свойствах и характеристиках Датчик магнитного поля Magnetic field sensor MJ35-F12-1N-5M Pepperl+Fuchs.
Фотография на сайте служит дополнительным источником для определения совместимости запчастей с Вашим оборудованием, и не может являться основным. Основной источник по совместимости запчастей - актуальная документация производителя оборудования, из которой значимой информацией для заказа являются: название запчасти и каталожный номер.
Запасные части и комплектующие подбираются самостоятельно покупателем строго по каталожным номерам из официальных деталировок производителей. В случае, если номенклатура товара совпадает с фактически поставленной, но не подходит на оборудование - в ее замене или возврате может быть отказано.

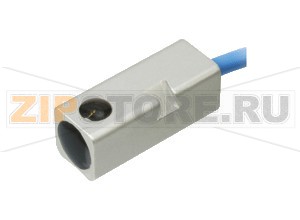

Цена Датчик магнитного поля Magnetic field sensor MJ35-F12-1N-5M Pepperl+Fuchs на сайте имеет информационный характер и может отличаться от цены в коммерческом предложении.
| General specifications | ||
|---|---|---|
| Switching function | Normally open (NO) | |
| Output type | Reed Contact | |
| Rated operating distance | 12.7 mm | |
| Installation | non-flush | |
| Mechanical life | 5 x 107 switching cycles | |
| Nominal ratings | ||
| Switching frequency | 100 Hz | |
| Repeat accuracy | &le 0.13 mm | |
| No-load supply current | &le 50 mA | |
| Reed bounce time | max. 0.5 ms | |
| Electrical specifications | ||
| Electrical rating | AC supply: 15 VA, 500 mA, 280 V RMS DC supply: 15 W, 500 mA, 400 V DC | |
| Ambient conditions | ||
| Ambient temperature | -20 ... 83 °C (-4 ... 181.4 °F) | |
| Mechanical specifications | ||
| Connection type | cable PVC , 1.83 m | |
| Core cross-section | 1.5 mm2 | |
| Housing material | aluminum | |
| Sensing face | aluminum | |
| Housing diameter | ||
| Degree of protection | IP68 | |
| Note | Full sensing range available for low carbon steel 25.4 x 76.2 x 6.35mm | |
| General specifications | ||
|---|---|---|
| Switching function | Normally open (NO) | |
| Output type | Reed Contact | |
| Rated operating distance | 61 mm | |
| Installation | non-flush | |
| Mechanical life | 1 x 107 switching cycles | |
| Nominal ratings | ||
| Operating voltage | 250 V DC, 1.0 A max, 15 W | |
| Hysteresis | 15.2 mm | |
| Release point | &le max. 76 mm | |
| Ambient conditions | ||
| Ambient temperature | -25 ... 85 °C (-13 ... 185 °F) | |
| Mechanical specifications | ||
| Connection type | cable PVC , 1.83 m | |
| Core cross-section | 16 AWG | |
| Housing material | aluminum | |
| Sensing face | aluminum | |
| Housing diameter | ||
| Degree of protection | IP68 | |
| Material | ||
| Activation target | 21FR1-B | |
| General specifications | ||
|---|---|---|
| Switching function | Normally open (NO) | |
| Output type | NPN | |
| Rated operating distance | Use either 41FY1 - 6.4 - 15.2 mm or 41FY2 - 7.6 - 19 mm | |
| Installation | non-flush | |
| Output polarity | DC | |
| Nominal ratings | ||
| Operating voltage | 10 ... 30 V DC | |
| Hysteresis | 5 ... 25 % | |
| Short-circuit protection | yes | |
| Voltage drop | &le 2.5 V DC | |
| Repeat accuracy | +/- 3 % | |
| Operating current | &le 200 mA | |
| Off-state current | &le 30 mA | |
| No-load supply current | &le 40 mA | |
| Indicators/operating means | ||
| LED indicator | switching state | |
| Electrical specifications | ||
| Electrical rating | 10 - 30 V DC | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| Ambient conditions | ||
| Ambient temperature | -30 ... 85 °C (-22 ... 185 °F) | |
| Mechanical specifications | ||
| Connection type | cable PVC , 2 m | |
| Core cross-section | 0.34 mm2 | |
| Housing material | Polycarbonate | |
| Sensing face | Polycarbonate | |
| Housing diameter | ||
| Degree of protection | IP67 | |
| General specifications | ||
|---|---|---|
| Switching function | Normally open (NO) | |
| Output type | Two-wire | |
| Rated operating distance | Use either 41FY1 - 6.4 - 15.2 mm or 41FY2 - 7.6 - 19 mm | |
| Installation | non-flush | |
| Output polarity | AC | |
| Nominal ratings | ||
| Operating voltage | 93 ... 132 V AC | |
| Hysteresis | 5 ... 25 % | |
| Short-circuit protection | NO | |
| Voltage drop | 6 V at 500 mA | |
| Momentary current (20 ms, 0.1 Hz) | 1.2 A | |
| Repeat accuracy | +/- 3 % | |
| Operating current | max. 500 mA | |
| Off-state current | &le 1.5 mA | |
| Indicators/operating means | ||
| LED indicator | switching state | |
| Electrical specifications | ||
| Electrical rating | 93 - 132 V AC | |
| Ambient conditions | ||
| Ambient temperature | -30 ... 85 °C (-22 ... 185 °F) | |
| Mechanical specifications | ||
| Connection type | cable PVC , 3 m | |
| Core cross-section | 0.34 mm2 | |
| Housing material | PBT | |
| Sensing face | PBT | |
| Housing diameter | ||
| Degree of protection | IP67 | |
| General specifications | ||
|---|---|---|
| Switching function | Normally open (NO) | |
| Output type | PNP | |
| Rated operating distance | 60 mm | |
| Installation | flush in non-magnetic metal | |
| Output polarity | DC | |
| Assured operating distance | 10 ... 48.6 mm | |
| Nominal ratings | ||
| Operating voltage | 10 ... 30 V | |
| Switching frequency | 0 ... 5000 Hz | |
| Hysteresis | 1 ... 10 % | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | &le 2.5 V | |
| Operating current | 0 ... 200 mA | |
| No-load supply current | &le 10 mA | |
| Switching state indicator | LED, yellow | |
| Functional safety related parameters | ||
| MTTFd | 3909 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Approvals and certificates | ||
| Protection class | III | |
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated &le36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 ... 75 °C (-13 ... 167 °F) | |
| Mechanical specifications | ||
| Connection type | cable PUR , 2 m | |
| Core cross-section | 0.14 mm2 | |
| Housing material | stainless steel 1.4404 / AISI 316L | |
| Sensing face | PBT | |
| Housing diameter | 8 mm | |
| Degree of protection | IP67 | |
| General specifications | ||
|---|---|---|
| Switching function | complementary | |
| Output type | PNP | |
| Installation | on the cylinder | |
| Output polarity | DC | |
| Switching range | typ. 50 mm | |
| Nominal ratings | ||
| Operating voltage | 10 ... 30 V DC | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | &le 1.5 V | |
| Operating current | 0 ... 100 mA | |
| No-load supply current | &le 30 mA | |
| Functional safety related parameters | ||
| MTTFd | 739 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| LED indicator | red: switching state output 1 yellow: switching state output 2 | |
| Approvals and certificates | ||
| EAC conformity | TR CU 020/2011 | |
| CCC approval | CCC approval / marking not required for products rated &le36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 ... 85 °C (-13 ... 185 °F) | |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) | |
| Mechanical specifications | ||
| Connection type | Connector M12 x 1 , 4-pin | |
| Housing material | Polyamide (PA) | |
| Sensing face | Polyamide (PA) | |
| Degree of protection | IP67 | |
| General specifications | ||
|---|---|---|
| Switching function | Normally open (NO) | |
| Output type | Two-wire | |
| Rated operating distance | Use either 41FY1 - 6.4 - 15.2 mm or 41FY2 - 7.6 - 19 mm | |
| Installation | non-flush | |
| Output polarity | AC | |
| Nominal ratings | ||
| Operating voltage | 93 ... 132 V AC | |
| Hysteresis | 5 ... 25 % | |
| Voltage drop | 6 V at 500 mA | |
| Momentary current (20 ms, 0.1 Hz) | 1.2 A | |
| Repeat accuracy | +/- 3 % | |
| Operating current | max. 500 mA | |
| Off-state current | &le 1.5 mA | |
| Indicators/operating means | ||
| LED indicator | switching state | |
| Electrical specifications | ||
| Electrical rating | 93 - 132 V AC | |
| Ambient conditions | ||
| Ambient temperature | -30 ... 85 °C (-22 ... 185 °F) | |
| Mechanical specifications | ||
| Connection type | M12 connector, male, 4-pin, B-coded | |
| Housing material | PBT | |
| Sensing face | PBT | |
| Housing diameter | ||
| Degree of protection | IP67 | |
| Note | no connection pin 3 and pin 4 | |
| General specifications | ||
|---|---|---|
| Switching function | Normally open (NO) | |
| Output type | PNP | |
| Rated operating distance | Use either 41FY1 - 6.4 - 15.2 mm or 41FY2 - 7.6 - 19 mm | |
| Installation | non-flush | |
| Output polarity | DC | |
| Nominal ratings | ||
| Operating voltage | 10 ... 30 V DC | |
| Hysteresis | 5 ... 25 % | |
| Short-circuit protection | yes | |
| Voltage drop | &le 2.5 V DC | |
| Repeat accuracy | +/- 3 % | |
| Operating current | &le 200 mA | |
| Off-state current | &le 30 mA | |
| No-load supply current | &le 40 mA | |
| Indicators/operating means | ||
| LED indicator | switching state | |
| Electrical specifications | ||
| Electrical rating | 10 - 30 V DC | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| Ambient conditions | ||
| Ambient temperature | -30 ... 85 °C (-22 ... 185 °F) | |
| Mechanical specifications | ||
| Connection type | cable PVC , 2 m | |
| Core cross-section | 0.34 mm2 | |
| Housing material | Polycarbonate | |
| Sensing face | Polycarbonate | |
| Housing diameter | ||
| Degree of protection | IP67 | |
| General specifications | ||
|---|---|---|
| Switching function | Normally open (NO) | |
| Output type | Two-wire | |
| Rated operating distance | Use either 41FY1 - 6.4 - 15.2 mm or 41FY2 - 7.6 - 19 mm | |
| Installation | non-flush | |
| Output polarity | AC | |
| Nominal ratings | ||
| Operating voltage | 24 V AC | |
| Voltage drop | 8 V at 500 mA | |
| Operating current | max. 500 mA | |
| Off-state current | 1.5 mA | |
| Indicators/operating means | ||
| LED indicator | switching state | |
| Electrical specifications | ||
| Electrical rating | 24 V AC | |
| Ambient conditions | ||
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) | |
| Mechanical specifications | ||
| Connection type | cable PVC , 5 m | |
| Core cross-section | 0.34 mm2 | |
| Housing material | Polycarbonate | |
| Sensing face | Polycarbonate | |
| Housing diameter | ||
| Degree of protection | IP67 | |
| General specifications | ||
|---|---|---|
| Switching function | Normally open (NO) | |
| Output type | Reed Contact | |
| Rated operating distance | 19.8 mm | |
| Installation | non-flush | |
| Output polarity | AC/DC | |
| Mechanical life | 3 x 107 operations | |
| Nominal ratings | ||
| Operating voltage | 100 V DC, 250 mA 115 V AC, 250 mA | |
| Hysteresis | &ge2.54 mm | |
| Contact resistance | 0.15 &Omega | |
| Insulation resistance | min. 100 M&Omega at 200 V | |
| Dielectric strength | 200 V AC, 60 Hz | |
| Release point | &le max. 43 mm | |
| Electrical specifications | ||
| Electrical rating | AC supply: 10 VA, 132 V AC, 750 mA DC supply: 10 W, 100 V DC, 300 mA | |
| Ambient conditions | ||
| Ambient temperature | -40 ... 125 °C (-40 ... 257 °F) | |
| Mechanical specifications | ||
| Housing material | Polycarbonate | |
| Sensing face | Polycarbonate | |
| Housing diameter | ||
| Degree of protection | IP68 | |
| General specifications | ||
|---|---|---|
| Switching function | Normally open (NO) | |
| Output type | PNP | |
| Rated operating distance | Use either 41FY1 - 6.4 - 15.2 mm or 41FY2 - 7.6 - 19 mm | |
| Installation | non-flush | |
| Output polarity | DC | |
| Nominal ratings | ||
| Operating voltage | 10 ... 30 V DC | |
| Hysteresis | 5 ... 25 % | |
| Short-circuit protection | yes | |
| Voltage drop | &le 2.5 V DC | |
| Repeat accuracy | +/- 3 % | |
| Operating current | &le 200 mA | |
| Off-state current | &le 30 mA | |
| No-load supply current | &le 40 mA | |
| Indicators/operating means | ||
| LED indicator | switching state | |
| Electrical specifications | ||
| Electrical rating | 10 - 30 V DC | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| Ambient conditions | ||
| Ambient temperature | -30 ... 85 °C (-22 ... 185 °F) | |
| Mechanical specifications | ||
| Connection type | Connector M12 x 1 , 4-pin | |
| Housing material | Polycarbonate | |
| Sensing face | Polycarbonate | |
| Housing diameter | ||
| Degree of protection | IP67 | |
