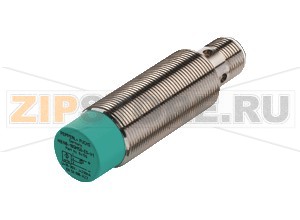

Индуктивный датчик Pepperl+Fuchs 84197 NBN8-18GM50-E2-V1 предназначен для бесконтактного обнаружения металлических объектов в промышленной автоматизации. Он стабильно работает в жёстких условиях производства, подходит для конвейерных линий, упаковочного и станочного оборудования, систем позиционирования и контроля наличия/прохождения изделий. Благодаря прочному корпусу и удобному подключению через разъём его легко интегрировать в существующие шкафы управления и ПЛК.
Датчик формирует устойчивый выходной сигнал при попадании металлической цели в зону чувствительности и обеспечивает наглядную индикацию состояния. Конструкция позволяет использовать устройство в условиях вибраций, запылённости и периодического воздействия влаги. На практике это снижает количество ошибочных срабатываний и упрощает диагностику на линии.
Типовые причины неисправностей:
Как понять, что датчик вышел из строя:
Рекомендации по установке и уходу:
Соблюдение этих рекомендаций продлевает ресурс Pepperl+Fuchs NBN8-18GM50-E2-V1, снижает простои и обеспечивает предсказуемую работу оборудования. При замене используйте оригинальные аксессуары и корректные по току/типу подключения нагрузки.
| Общие характеристики | ||
|---|---|---|
| Функция переключения | Нормально-разомкнутый (NO) | |
| Тип выхода | PNP | |
| Номинальная дальность срабатывания | 8 mm | |
| Монтаж | незаподлицо | |
| Полярность выхода | Постоянный ток (DC) | |
| Гарантированная зона срабатывания | 0... 6.48 mm ( -25... 70 °C (-13... 158 °F) ) 0... 6.08 mm ( -40... -25 °C (-40... -13 °F) ) | |
| Коэффициент снижения rAl | 0.5 | |
| Коэффициент снижения rCu | 0.4 | |
| Коэффициент снижения r304 | 0.7 | |
| Номинальные параметры | ||
| Рабочее напряжение | 10... 30 V | |
| Частота переключения | 0... 500 Hz | |
| Гистерезис | typ. 5% | |
| Защита от переполюсовки | есть | |
| Защита от короткого замыкания | импульсная | |
| Падение напряжения | &le 3 V | |
| Рабочий ток | 0... 200 mA | |
| Ток в выключенном состоянии | 0... 0.5 mA typ. 0.1 µA at 25 °C | |
| Ток потребления без нагрузки | &le 18 mA | |
| Индикация состояния | Многоточечный светодиод, жёлтый | |
| Параметры, относящиеся к функциональной безопасности | ||
| MTTFd | 1190 лет | |
| Срок эксплуатации (TM) | 20 лет | |
| Диагностическое покрытие (DC) | 0 % | |
| Одобрения и сертификаты | ||
| Соответствие ЕАС | TR CU 020/2011 | |
| Одобрение UL | cULus Listed, General Purpose | |
| Одобрение CSA | cCSAus Listed, General Purpose | |
| Одобрение CCC | Сертификация/маркировка CCC не требуется для изделий с напряжением &le36 V | |
| Условия окружающей среды | ||
| Температура окружающей среды | -40... 70 °C (-40... 158 °F) | |
| Механические характеристики | ||
| Тип подключения | Разъём M12 x 1, 4-контактный | |
| Материал корпуса | латунь, никелированная | |
| Лицевая поверхность | PBT | |
| Диаметр корпуса | 18 mm | |
| Степень защиты | IP67 | |
| Производитель | Pepperl+Fuchs |
