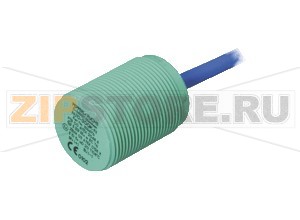

Индуктивный датчик Pepperl+Fuchs NJ15-30GK-N (артикул 106486) предназначен для бесконтактного обнаружения металлических объектов и широко применяется в системах автоматизации, контроля положения и подсчета изделий. Датчик выполнен в ударопрочном корпусе из PBT, устойчив к воздействию пыли и влаги и может использоваться в жестких условиях эксплуатации, включая повышенную влажность и загрязнения. Конструктивно это неутопленный индуктивный датчик с выходом по стандарту NAMUR и нормально замкнутой логикой, что обеспечивает надежную интеграцию с барьерами/усилителями соответствующего типа и системами безопасности.
Благодаря устойчивости к вибрациям и перепадам температур датчик применим на транспортерных линиях, упаковочных и фасовочных машинах, в приводах, исполнительных механизмах и узлах позиционирования. Степень защиты и прочный герметичный корпус делают NJ15-30GK-N подходящим для работающих на открытом воздухе участков, промышленных моек и мест с интенсивным запылением. При правильном подборе барьеров и соблюдении руководства по эксплуатации датчик допускается к применению во взрывоопасных зонах.
Типичные признаки неисправности включают отсутствие переключения при поднесении стандартной металлической мишени, нестабильную работу (дрожание, ложные срабатывания) или заметное снижение расстояния срабатывания. Для датчиков NAMUR характерен контроль токового уровня: если ток в цепи не меняется при появлении/исчезновении объекта, это говорит о проблеме с самим датчиком, кабелем или согласующим модулем. К косвенным симптомам относятся нагрев корпуса, повреждение оболочки кабеля, следы влаги в месте ввода кабеля, а также периодические ошибки на модуле барьера.
Наиболее частые причины выхода из строя:
Рекомендации по уходу и эксплуатации:
Следуя этим рекомендациям, вы обеспечите стабильную работу датчика NJ15-30GK-N и снизите риск неплановых простоев оборудования.
| Общие технические данные | ||
|---|---|---|
| Функция переключения | Нормально замкнутый (NC) | |
| Тип выхода | NAMUR | |
| Номинальная дальность срабатывания | 15 мм | |
| Монтаж | неутопленный | |
| Гарантированная дальность срабатывания | 0... 12,15 мм | |
| Коэффициент снижения rAl | 0,4 | |
| Коэффициент снижения rCu | 0,3 | |
| Коэффициент снижения r304 | 0,85 | |
| Номинальные параметры | ||
| Условия монтажа | ||
| A | 18 мм | |
| B | 30 мм | |
| C | 45 мм | |
| F | 90 мм | |
| Номинальное напряжение | 8,2 В (Ri прибл. 1 кΩ) | |
| Частота переключения | 0... 100 Гц | |
| Гистерезис | 1... 5 тип. 3 % | |
| Потребляемый ток | ||
| Объект не обнаружен | мин. 3 мА | |
| Объект обнаружен | ≤ 1 мА | |
| Параметры, связанные с функциональной безопасностью | ||
| MTTFd | 4560 лет | |
| Расчетный срок службы (TM) | 20 лет | |
| Диагностическое покрытие (DC) | 0 % | |
| Соответствие стандартам и директивам | ||
| Соответствие стандартам | ||
| NAMUR | EN 60947-5-6:2000 IEC 60947-5-6:1999 | |
| Одобрения и сертификаты | ||
| Одобрение FM | ||
| Чертеж контроля | 116-0165 | |
| Одобрение UL | cULus Listed, General Purpose | |
| Одобрение CSA | cCSAus Listed, General Purpose | |
| Одобрение CCC | Одобрение/маркировка CCC не требуется для изделий ≤36 В | |
| Условия окружающей среды | ||
| Температура окружающей среды | -25... 100 °C (-13... 212 °F) | |
| Механические характеристики | ||
| Тип подключения | кабель PVC, 2 м | |
| Сечение жилы | 0,75 мм2 | |
| Материал корпуса | PBT | |
| Активная поверхность | PBT | |
| Диаметр корпуса | 30 мм | |
| Степень защиты | IP66 / IP68 | |
| Кабель | ||
| Радиус изгиба | > 10 x диаметр кабеля | |
| Общая информация | ||
| Применение во взрывоопасной зоне | см. руководство по эксплуатации | |
| Категория | 2G 1D | |
| Производитель | Pepperl+Fuchs |
