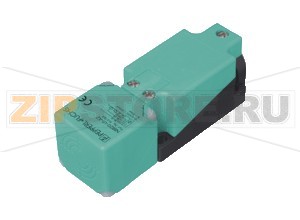

Inductive sensor NBN40-U1-E2 Pepperl+Fuchs (артикул 194779) — промышленный бесконтактный датчик для надежного обнаружения металлических объектов в автоматизированных системах. Он подходит для задач позиционирования, счета, контроля наличия детали и конечных положений на конвейерных линиях, в упаковочном, дерево- и металлообрабатывающем оборудовании. Конструкция с винтовыми клеммами упрощает ввод в эксплуатацию и обслуживание, а встроенные светодиодные индикаторы позволяют быстро оценить наличие питания и состояние выхода без измерительных приборов.
Датчик рассчитан на работу в жестких условиях: устойчив к вибрациям, загрязнениям, водяным струям высокой интенсивности и частым циклам включения/выключения. Нечувствительность к маслу и большинству производственных загрязнений, а также коррозионно-стойкое покрытие корпуса повышают ресурс при эксплуатации на открытых участках и в зонах мойки. Исполнение с «неутопленным» монтажом обеспечивает увеличенную дистанцию срабатывания и стабильную работу при правильном соблюдении монтажных отступов от металлоконструкций.
Благодаря выходу PNP с нормально разомкнутой логикой датчик совместим с большинством промышленных контроллеров и модулей дискретного ввода. Наличие защиты от переполюсовки и короткого замыкания снижает риск отказов при ошибках подключения, а низкий собственный ток потребления облегчает интеграцию в энергоэффективные системы.
Признаки того, что запчасть вышла из строя или работает некорректно:
Типичные причины поломок:
Как самостоятельно проверить работоспособность:
Рекомендации по уходу и эксплуатации:
При следовании этим рекомендациям Inductive sensor NBN40-U1-E2 Pepperl+Fuchs (194779) обеспечивает длительную и стабильную работу, снижая остановы оборудования и трудозатраты на обслуживание.
| Общие характеристики | ||
|---|---|---|
| Функция переключения | Нормально разомкнутый (NO) | |
| Тип выхода | PNP | |
| Номинальное расстояние срабатывания | 40 мм | |
| Установка | неутопленный монтаж | |
| Полярность выхода | Постоянный ток (DC) | |
| Гарантированное расстояние срабатывания | 0... 32,4 мм | |
| Фактическое расстояние срабатывания | 36... 44 мм | |
| Коэффициент снижения rAl | 0,31 | |
| Коэффициент снижения rCu | 0,3 | |
| Коэффициент снижения r304 | 0,74 | |
| Коэффициент снижения rBrass | 0,39 | |
| Номинальные параметры | ||
| Рабочее напряжение | 10... 30 В DC | |
| Частота переключения | 0... 180 Гц | |
| Гистерезис | тип. 5 % | |
| Защита от переполюсовки | да | |
| Защита от короткого замыкания | импульсная | |
| Падение напряжения | ≤ 2 В | |
| Рабочий ток | 0... 200 мА | |
| Ток в выключенном состоянии | 0... 0,5 мА, тип. 0,01 мА | |
| Потребляемый ток без нагрузки | ≤ 20 мА | |
| Индикатор питания | Светодиод, зелёный | |
| Индикатор состояния переключения | Светодиод, жёлтый | |
| Параметры функциональной безопасности | ||
| MTTFd | 1510 лет | |
| Наработка на миссию (TM) | 20 лет | |
| Диагностическое покрытие (DC) | 0 % | |
| Одобрения и сертификаты | ||
| Соответствие EAC | ТР ТС 020/2011 | |
| Одобрение UL | cULus Listed, общего назначения | |
| Одобрение CCC | Одобрение/маркировка CCC не требуется для изделий с номиналом ≤36 В | |
| Условия окружающей среды | ||
| Диапазон температуры окружающей среды | -25... 85 °C (-13... 185 °F) | |
| Механические характеристики | ||
| Тип подключения | винтовые клеммы | |
| Информация по подключению | На одну клемму допускается подключение не более двух проводников одинакового сечения! момент затяжки 1,2 Н·м ± 10 % | |
| Сечение проводника | до 2,5 мм2 | |
| Минимальное сечение проводника | без наконечника 0,5 мм2, с наконечником 0,34 мм2 | |
| Максимальное сечение проводника | без наконечника 2,5 мм2, с наконечником 1,5 мм2 | |
| Материал корпуса | ПА/металл с эпоксидным порошковым покрытием | |
| Чувствительная поверхность | ПА | |
| Степень защиты | IP68 / IP69K | |
| Масса | 225 г | |
| Примечание | Момент затяжки: 1,8 Н·м (корпус) | |
| Производитель | Pepperl+Fuchs |
