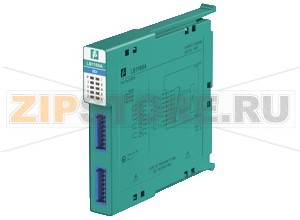

![Компонент цифрового входа Digital Input LB1109A Pepperl+Fuchs SlotsOccupied slots1SupplyConnectionbackplane busRated voltage12 V DC , only in connection with the power supplies LB9***Power consumption1.2 WInternal busConnectionbackplane busInterfacemanufacturer-specific bus to standard com unitDigital inputNumber of channels8Sensor interfaceConnectionNAMUR sensorConnection [2]volt-free contactConnectionTerminals 1+, 2-, 3+, 4-, 5+, 6-, 7+, 8-, 9+, 10-, 11+, 12-, 13+,14-, 15+, 16-Rated valuesacc. to EN 60947-5-6 (NAMUR)Switching point/switching hysteresis1.2 ... 2.1 mA / ± 0.2 mAVoltage8.2 VInternal resistor1 k&OmegaLine fault detectioncan be switched on/off for each channel via configuration toolConnectionmechanical switch with additional resistors (see connection diagram) proximity switches without additional wiringShort-circuit< 360 &OmegaOpen-circuit< 0.35 mAMinimum pulse duration15 msIndicators/settingsLED indicatorPower LED (P) green: supply Diagnostic LED (I) red: module fault , red flashing: communication error , white: fixed parameter set (parameters from com unit are ignored) , white flashing: requests parameters from com unit Status LED (1-8) red: line fault (lead breakage or short circuit) , yellow: signal (per channel)Directive conformityElectromagnetic compatibilityDirective 2014/30/EUEN 61326-1ConformityElectromagnetic compatibilityNE 21Degree of protectionIEC 60529Ambient conditionsAmbient temperature-20 ... 60 °C (-4 ... 140 °F)Storage temperature-25 ... 85 °C (-13 ... 185 °F)Shock resistanceshock type I, shock duration 11 ms, shock amplitude 15 g, number of shocks 18Vibration resistancefrequency range 10 ... 150 Hz transition frequency: 57.56 Hz, amplitude/acceleration ± 0.075 mm/1 g 10 cyclesfrequency range 5 ... 100 Hz transition frequency: 13.2 Hz amplitude/acceleration ± 1 mm/0.7 g 90 minutes at each resonanceDamaging gasdesigned for operation in environmental conditions acc. to ISA-S71.04-1985, severity level G3Mechanical specificationsDegree of protectionIP20 when mounted on backplaneConnectionremovable front connector with spring terminal (0.14 ... 0.5 mm2)Massapprox. 90 gDimensions16 x 100 x 102 mm (0.63 x 3.9 x 4 inch)Data for application in connection with hazardous areasEU-Type Examination CertificateEXA 13 ATEX 0036XMarking II 3(1) G Ex nA [ia Ga] IIC T4 Gc I (M1) [Ex ia Ma] I II (1) D [Ex ia Da] IIICInputVoltage10 VCurrent12 mAPower30 mW (linear characteristic)Galvanic isolationInput/power supply, internal bussafe electrical isolation acc. to EN 60079-11, voltage peak value 375 VDirective conformityDirective 2014/34/EUEN 60079-0:2011 EN 60079-11:2011 EN 60079-15:2010International approvalsATEX approvalEXA 13 ATEX 0036XUL approvalE106378IECEx approvalEXA 13.0003XApproved forEx nA [ia Ga] IIC T4 Gc [Ex ia Da] IIIC [Ex ia Ma] IMarine approvalLloyd Register15/20021Bureau Veritas Marine22449/B0 BV](/wa-data/public/shop/products/62/21/152162/images/58943/58943.970.jpg "223078-digital-input-lb1109a-pepperl-fuchs.jpg")
Товаров: 0
На сумму: 0
| Slots | ||
|---|---|---|
| Occupied slots | 1 | |
| Supply | ||
| Connection | backplane bus | |
| Rated voltage | 12 V DC , only in connection with the power supplies LB9*** | |
| Power consumption | 1.2 W | |
| Internal bus | ||
| Connection | backplane bus | |
| Interface | manufacturer-specific bus to standard com unit | |
| Digital input | ||
| Number of channels | 8 | |
| Sensor interface | ||
| Connection | NAMUR sensor | |
| Connection [2] | volt-free contact | |
| Connection | Terminals 1+, 2-, 3+, 4-, 5+, 6-, 7+, 8-, 9+, 10-, 11+, 12-, 13+,14-, 15+, 16- | |
| Rated values | acc. to EN 60947-5-6 (NAMUR) | |
| Switching point/switching hysteresis | 1.2 ... 2.1 mA / ± 0.2 mA | |
| Voltage | 8.2 V | |
| Internal resistor | 1 k&Omega | |
| Line fault detection | can be switched on/off for each channel via configuration tool | |
| Connection | mechanical switch with additional resistors (see connection diagram) proximity switches without additional wiring | |
| Short-circuit | < 360 &Omega | |
| Open-circuit | < 0.35 mA | |
| Minimum pulse duration | 15 ms | |
| Indicators/settings | ||
| LED indicator | Power LED (P) green: supply Diagnostic LED (I) red: module fault , red flashing: communication error , white: fixed parameter set (parameters from com unit are ignored) , white flashing: requests parameters from com unit Status LED (1-8) red: line fault (lead breakage or short circuit) , yellow: signal (per channel) | |
| Directive conformity | ||
| Electromagnetic compatibility | ||
| Directive 2014/30/EU | EN 61326-1 | |
| Conformity | ||
| Electromagnetic compatibility | NE 21 | |
| Degree of protection | IEC 60529 | |
| Ambient conditions | ||
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) | |
| Storage temperature | -25 ... 85 °C (-13 ... 185 °F) | |
| Shock resistance | shock type I, shock duration 11 ms, shock amplitude 15 g, number of shocks 18 | |
| Vibration resistance | frequency range 10 ... 150 Hz transition frequency: 57.56 Hz, amplitude/acceleration ± 0.075 mm/1 g 10 cycles frequency range 5 ... 100 Hz transition frequency: 13.2 Hz amplitude/acceleration ± 1 mm/0.7 g 90 minutes at each resonance | |
| Damaging gas | designed for operation in environmental conditions acc. to ISA-S71.04-1985, severity level G3 | |
| Mechanical specifications | ||
| Degree of protection | IP20 when mounted on backplane | |
| Connection | removable front connector with spring terminal (0.14 ... 0.5 mm2) | |
| Mass | approx. 90 g | |
| Dimensions | 16 x 100 x 102 mm (0.63 x 3.9 x 4 inch) | |
| Data for application in connection with hazardous areas | ||
| EU-Type Examination Certificate | EXA 13 ATEX 0036X | |
| Marking |  II 3(1) G Ex nA [ia Ga] IIC T4 Gc I (M1) [Ex ia Ma] I II (1) D [Ex ia Da] IIIC | |
| Input | ||
| Voltage | 10 V | |
| Current | 12 mA | |
| Power | 30 mW (linear characteristic) | |
| Galvanic isolation | ||
| Input/power supply, internal bus | safe electrical isolation acc. to EN 60079-11, voltage peak value 375 V | |
| Directive conformity | ||
| Directive 2014/34/EU | EN 60079-0:2011 EN 60079-11:2011 EN 60079-15:2010 | |
| International approvals | ||
| ATEX approval | EXA 13 ATEX 0036X | |
| UL approval | E106378 | |
| IECEx approval | EXA 13.0003X | |
| Approved for | Ex nA [ia Ga] IIC T4 Gc [Ex ia Da] IIIC [Ex ia Ma] I | |
| Marine approval | ||
| Lloyd Register | 15/20021 | |
| Bureau Veritas Marine | 22449/B0 BV | |
| Производитель | Pepperl+Fuchs |
