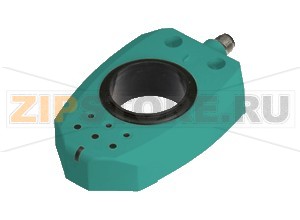

Индуктивная система позиционирования Ind. angular measuring system PMI360DV-F130-IU2E0-V15 Pepperl+Fuchs

Name: Индуктивная система позиционирования Ind. angular measuring system PMI360DV-F130-IU2E0-V15 Pepperl+Fuchs
Brand: Pepperl+Fuchs
SKU: 225670

Каталожный номер 225670

Индуктивная система позиционирования Ind. angular measuring system PMI360DV-F130-IU2E0-V15 Pepperl+Fuchs General specificationsMeasurement rangemax. 360° min. 90°Adjustment range2 switch frames programmable , min. 5°, max. 360°Rotational speedmax. 100 min-1Nominal ratingsOperating voltage18 ... 30 V DCReverse polarity protectionreverse polarity protectedRepeat accuracy&plusmn 0.25 °Resolution0.2 °Temperature drift0.02 ° / °C (-25 °C ... 70 °C)No-load supply current&le 45 mAIndicators/operating meansLED yellow 1switching state, Switching output 1LED yellow 2switching state, Switching output 2LED PWR/ERRStatus display LED, green/red (Power on / missing actuator / keylock)LED U/IActivator within measuring rangeSwitching outputOutput type2 switch outputs NPN, NO , reverse polarity protected , short-circuit protected , programmableOperating current&le 100 mASwitching hysteresis1 °Voltage drop&le 3 VShort-circuit protectionpulsingAnalog outputOutput typecurrent output or voltage output (load dependend) 4 ... 20 mA (RL < 400 &Omega) 0 ... 10 V (RL > 3.3 k&Omega)Linearity error&plusmn 0.6 ° , (with original actuator)Compliance with standards and directivesStandard conformityStandardsEN 60947-5-2:2007 IEC 60947-5-2:2007Approvals and certificatesUL approvalcULus Listed, General Purpose, Class 2 Power SourceCCC approvalCCC approval / marking not required for products rated &le36 VAmbient conditionsAmbient temperature-25 ... 70 °C (-13 ... 158 °F)Mechanical specificationsConnection type5-pin, M12 x 1 connectorDegree of protectionIP67MaterialHousingPBTTargetmild steel, e. g. 1.0037, SR235JR (formerly St37-2)Mass180 g

Скидки от суммы заказа

Гарантия от производителя

Ходовые товары на складе

Наличный и безналичный расчет

Доставка по России и СНГ

Добавлено в корзину!

Товаров: 0

На сумму: 0

Описание

Оплата

Доставка

Гарантия

Инструкции

Описание товара

General specifications
Measurement range		max. 360° min. 90°
Adjustment range		2 switch frames programmable , min. 5°, max. 360°
Rotational speed		max. 100 min^-1
Nominal ratings
Operating voltage		18 ... 30 V DC
Reverse polarity protection		reverse polarity protected
Repeat accuracy		± 0.25 °
Resolution		0.2 °
Temperature drift		0.02 ° / °C (-25 °C ... 70 °C)
No-load supply current		&le 45 mA
Indicators/operating means
LED yellow 1		switching state, Switching output 1
LED yellow 2		switching state, Switching output 2
LED PWR/ERR		Status display LED, green/red (Power on / missing actuator / keylock)
LED U/I		Activator within measuring range
Switching output
Output type		2 switch outputs NPN, NO , reverse polarity protected , short-circuit protected , programmable
Operating current		&le 100 mA
Switching hysteresis		1 °
Voltage drop		&le 3 V
Short-circuit protection		pulsing
Analog output
Output type		current output or voltage output (load dependend) 4 ... 20 mA (R_L < 400 &Omega) 0 ... 10 V (R_L > 3.3 k&Omega)
Linearity error		± 0.6 ° , (with original actuator)
Compliance with standards and directives
Standard conformity
	Standards	EN 60947-5-2:2007 IEC 60947-5-2:2007
Approvals and certificates
UL approval		cULus Listed, General Purpose, Class 2 Power Source
CCC approval		CCC approval / marking not required for products rated &le36 V
Ambient conditions
Ambient temperature		-25 ... 70 °C (-13 ... 158 °F)
Mechanical specifications
Connection type		5-pin, M12 x 1 connector
Degree of protection		IP67
Material
	Housing	PBT
	Target	mild steel, e. g. 1.0037, SR235JR (formerly St37-2)
Mass		180 g

Характеристики

Производитель

Pepperl+Fuchs

Важная информация

Все информационные материалы, представленные на сайте, носят справочный характер и не могут в полной мере передавать достоверную информацию о свойствах и характеристиках Индуктивная система позиционирования Ind. angular measuring system PMI360DV-F130-IU2E0-V15 Pepperl+Fuchs.

Фотография на сайте служит дополнительным источником для определения совместимости запчастей с Вашим оборудованием, и не может являться основным. Основной источник по совместимости запчастей - актуальная документация производителя оборудования, из которой значимой информацией для заказа являются: название запчасти и каталожный номер.

Запасные части и комплектующие подбираются самостоятельно покупателем строго по каталожным номерам из официальных деталировок производителей. В случае, если номенклатура товара совпадает с фактически поставленной, но не подходит на оборудование - в ее замене или возврате может быть отказано.

Цена Индуктивная система позиционирования Ind. angular measuring system PMI360DV-F130-IU2E0-V15 Pepperl+Fuchs на сайте имеет информационный характер и может отличаться от цены в коммерческом предложении.
