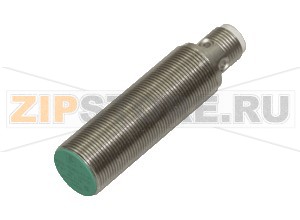

Индуктивный датчик 231731 — NEB12-18GM50-E2-V1 от Pepperl+Fuchs предназначен для бесконтактного обнаружения металлических объектов в системах промышленной автоматизации. Он обеспечивает стабильное срабатывание в условиях вибраций, пыли и технологических загрязнений, что делает его актуальным для конвейерных линий, упаковочного и обрабатывающего оборудования, робототехники, станков и сборочных комплексов. Корпус цилиндрической формы и стандартный промышленный разъём упрощают интеграцию в типовые места установки и позволяют быстро заменять датчик без доработок на месте.
NEB12-18GM50-E2-V1 использует индуктивный принцип: датчик создаёт электромагнитное поле и фиксирует его изменение при приближении металлической цели. Отсутствие механического контакта снижает износ и повышает ресурс, а встроенная индикация состояния облегчает наладку и первичную диагностику. Конструкция «почти заподлицо» позволяет монтировать датчик в металлические элементы оборудования с минимальными требованиями к выступанию чувствительной части. При этом важно учитывать влияние материала цели: для цветных металлов расстояние срабатывания ниже, чем для стали, поэтому настройку лучше проводить на реальной детали из того же материала и размеров.
Типовые применения включают контроль конечных положений приводов, детекцию наличия детали на паллете, подсчёт изделий, синхронизацию механизмов, контроль закрытия/открытия узлов, а также отслеживание зубьев/меток на вращающихся элементах. Индикация состояния позволяет быстро понять, видит ли датчик цель, что удобно при поиске причины нештатной работы линии.
Индуктивный датчик NEB12-18GM50-E2-V1 Pepperl+Fuchs сочетает надёжность, удобство монтажа и простую диагностику. При корректной установке и соблюдении рекомендаций по эксплуатации он обеспечивает длительную и стабильную работу в большинстве промышленных сценариев.
| Общие характеристики | ||
|---|---|---|
| Функция переключения | Нормально разомкнутый (NO) | |
| Тип выхода | PNP | |
| Номинальное расстояние срабатывания | 12 мм | |
| Установка | квази заподлицо | |
| Полярность выхода | Постоянный ток (DC) | |
| Гарантированное расстояние срабатывания | 0... 9,72 мм | |
| Эталонная цель | низкоуглеродистая сталь, напр. 1.0037, SR235JR (ранее St37-2) 36 мм x 36 мм x 1 мм | |
| Коэффициент снижения rAl | 0,26 | |
| Коэффициент снижения rCu | 0,2 | |
| Коэффициент снижения r304 | 0,63 | |
| Коэффициент снижения rBrass | 0,33 | |
| Номинальные параметры | ||
| Условия монтажа | ||
| A | в стали 1.0037 (St37): 4 мм | |
| B | 14 мм | |
| C | 36 мм | |
| F | 36 мм | |
| Рабочее напряжение | 10... 30 В | |
| Частота переключения | 0... 500 Гц | |
| Гистерезис | 0,12... 1,8 мм | |
| Защита от неправильной полярности | да | |
| Защита от короткого замыкания | импульсная | |
| Устойчивость к перегрузке | да | |
| Защита от обрыва провода | да | |
| Защита от индуцированных перенапряжений | да | |
| Подавление бросков напряжения | да | |
| Пульсации | 10 % | |
| Падение напряжения | ≤ 2 В | |
| Повторяемость | 0,6 мм | |
| Рабочий ток | 0... 200 мА | |
| Ток в выключенном состоянии | ≤ 10 µА | |
| Потребляемый ток без нагрузки | ≤ 11 мА | |
| Индикатор состояния переключения | Светодиод, жёлтый | |
| Параметры, связанные с функциональной безопасностью | ||
| MTTFd | 2650 лет | |
| Срок службы (TM) | 20 лет | |
| Диагностическое покрытие (DC) | 0 % | |
| Одобрения и сертификаты | ||
| Соответствие ЕАС | ТР ТС 020/2011 | |
| Одобрение UL | cULus Listed, для общего назначения | |
| Одобрение CCC | Одобрение/маркировка CCC не требуются для изделий с номиналом ≤36 В | |
| Условия окружающей среды | ||
| Температура окружающей среды | -25... 85 °C (-13... 185 °F) | |
| Температура хранения | -40... 85 °C (-40... 185 °F) | |
| Механические характеристики | ||
| Тип подключения | Разъём M12 x 1, 3 контакта | |
| Материал корпуса | латунь, никелированная | |
| Рабочая поверхность | PBT | |
| Диаметр корпуса | 18 мм | |
| Степень защиты | IP67 | |
| Масса | 50 г | |
| Производитель | Pepperl+Fuchs |

Все информационные материалы, представленные на сайте, носят справочный характер и не могут в полной мере передавать достоверную информацию о свойствах и характеристиках Индуктивный датчик Inductive sensor NEB12-18GM50-E2-V1 Pepperl+Fuchs.
Фотография на сайте служит дополнительным источником для определения совместимости запчастей с Вашим оборудованием, и не может являться основным. Основной источник по совместимости запчастей - актуальная документация производителя оборудования, из которой значимой информацией для заказа являются: название запчасти и каталожный номер.
Запасные части и комплектующие подбираются самостоятельно покупателем строго по каталожным номерам из официальных деталировок производителей. В случае, если номенклатура товара совпадает с фактически поставленной, но не подходит на оборудование - в ее замене или возврате может быть отказано.
Цена Индуктивный датчик Inductive sensor NEB12-18GM50-E2-V1 Pepperl+Fuchs на сайте имеет информационный характер и может отличаться от цены в коммерческом предложении.
| General specifications | ||
|---|---|---|
| Switching function | Normally open (NO) | |
| Output type | PNP | |
| Rated operating distance | 12 mm | |
| Installation | non-flush | |
| Output polarity | DC | |
| Assured operating distance | 0 ... 9.72 mm | |
| Reduction factor rAl | 1 | |
| Reduction factor rCu | 1 | |
| Reduction factor r304 | 1 | |
| Reduction factor rSt37 | 1 | |
| Nominal ratings | ||
| Operating voltage | 10 ... 30 V DC | |
| Switching frequency | 0 ... 500 Hz | |
| Hysteresis | typ. 5 % | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | &le 2 V | |
| Rated insulation voltage | 60 V | |
| Operating current | 0 ... 200 mA | |
| Off-state current | 0 ... 0.5 mA typ. 0.1 µA at 25 °C | |
| No-load supply current | &le 12 mA | |
| Constant magnetic field | 200 mT | |
| Alternating magnetic field | 200 mT | |
| Switching state indicator | Multihole-LED, yellow | |
| Functional safety related parameters | ||
| MTTFd | 1393 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Approvals and certificates | ||
| Protection class | II | |
| Rated insulation voltage | 60 V | |
| Rated impulse withstand voltage | 800 V | |
| UL approval | cULus Listed, General Purpose Class 2 power source | |
| CSA approval | cCSAus Listed, General Purpose Class 2 power source | |
| CCC approval | CCC approval / marking not required for products rated &le36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) | |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) | |
| Mechanical specifications | ||
| Connection type | Connector M12 x 1 , 4-pin | |
| Housing material | Brass, PTFE coated | |
| Sensing face | PPS | |
| Housing diameter | 18 mm | |
| Degree of protection | IP67 | |
| Mass | 43 g | |
| General information | ||
| Scope of delivery | 2 self locking nuts in scope of delivery | |
