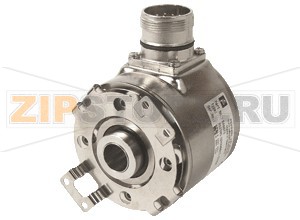

Инкрементальный поворотный шифратор Incremental rotary encoder RSI58O-02YAAR61T-01024 Pepperl+Fuchs

Name: Инкрементальный поворотный шифратор Incremental rotary encoder RSI58O-02YAAR61T-01024 Pepperl+Fuchs
Brand: Pepperl+Fuchs
SKU: 248673

Каталожный номер 248673

Инкрементальный поворотный шифратор Incremental rotary encoder RSI58O-02YAAR61T-01024 Pepperl+Fuchs General specificationsDetection typephotoelectric samplingPulse count1024Functional safety related parametersMTTFd140 aMission Time (TM)20 aL10h2 E+9Diagnostic Coverage (DC)0 %Electrical specificationsOperating voltage10 ... 30 V DCNo-load supply currentmax. 60 mAOutputOutput typepush-pull, incrementalVoltage drop< 4.4 VLoad currentmax. per channel 40 mA , short-circuit prtected (not&nbspwith&nbspUb), reverse polarity protectedOutput frequencymax. 200 kHzRise time400 nsConnectionConnectortype 9416 (M23), 12-pinStandard conformityDegree of protectionDIN&nbspEN&nbsp60529, IP65, IP66, IP68Climatic testingStatic climatic testingDIN&nbspEN&nbsp60068-2-78 , no moisture condensationCyclic climatic testingDIN&nbspEN&nbsp60068-2-30 55&nbsp°C, 6 cyclesSalt spray testDIN EN 60068-2-52 , 672 hEmitted interferenceEN&nbsp61000-6-4:2007/A1:2011Noise immunityEN&nbsp61000-6-2:2005Shock resistanceDIN&nbspEN&nbsp60068-2-27, 100&nbspg, 3&nbspmsVibration resistanceDIN&nbspEN&nbsp60068-2-6, 10&nbspg, 10&nbsp...&nbsp2000&nbspHzApprovals and certificatesUL approvalcULus Listed, General Purpose, Class 2 Power SourceAmbient conditionsOperating temperature-40 ... 60 °C (-40 ... 140 °F)Storage temperature-40 ... 70 °C (-40 ... 158 °F)Mechanical specificationsMaterialHousingaluminum, coated, salt water resistantFlangealuminum, coated, salt water resistantShaftstainless steel 1.4404 / AISI 316LMassapprox. 280 gRotational speedmax. 100 min -1Moment of inertia&le 35 gcm2Starting torque&le 4.5 NcmShaft loadAngle offset1 °Axial offsetmax. 1 mm

Розничная цена

482 $ с НДС ≈ 45792 ₽ с НДС

Последнее обновление базы:

Купить в 1 клик

Скидки от суммы заказа

Гарантия от производителя

Ходовые товары на складе

Наличный и безналичный расчет

Доставка по России и СНГ

Добавлено в корзину!

Товаров: 0

На сумму: 0

Описание

Оплата

Доставка

Гарантия

Инструкции

Описание товара

General specifications
Detection type		photoelectric sampling
Pulse count		1024
Functional safety related parameters
MTTF_d		140 a
Mission Time (T_M)		20 a
L_10h		2 E+9
Diagnostic Coverage (DC)		0 %
Electrical specifications
Operating voltage		10 ... 30 V DC
No-load supply current		max. 60 mA
Output
Output type		push-pull, incremental
Voltage drop		< 4.4 V
Load current		max. per channel 40 mA , short-circuit prtected (not with U_b), reverse polarity protected
Output frequency		max. 200 kHz
Rise time		400 ns
Connection
Connector		type 9416 (M23), 12-pin
Standard conformity
Degree of protection		DIN EN 60529, IP65, IP66, IP68
Climatic testing
	Static climatic testing	DIN EN 60068-2-78 , no moisture condensation
	Cyclic climatic testing	DIN EN 60068-2-30 55 °C, 6 cycles
	Salt spray test	DIN EN 60068-2-52 , 672 h
Emitted interference		EN 61000-6-4:2007/A1:2011
Noise immunity		EN 61000-6-2:2005
Shock resistance		DIN EN 60068-2-27, 100 g, 3 ms
Vibration resistance		DIN EN 60068-2-6, 10 g, 10 ... 2000 Hz
Approvals and certificates
UL approval		cULus Listed, General Purpose, Class 2 Power Source
Ambient conditions
Operating temperature		-40 ... 60 °C (-40 ... 140 °F)
Storage temperature		-40 ... 70 °C (-40 ... 158 °F)
Mechanical specifications
Material
	Housing	aluminum, coated, salt water resistant
	Flange	aluminum, coated, salt water resistant
	Shaft	stainless steel 1.4404 / AISI 316L
Mass		approx. 280 g
Rotational speed		max. 100 min ^-1
Moment of inertia		&le 35 gcm²
Starting torque		&le 4.5 Ncm
Shaft load
	Angle offset	1 °
	Axial offset	max. 1 mm

Характеристики

Производитель

Pepperl+Fuchs

Важная информация

Все информационные материалы, представленные на сайте, носят справочный характер и не могут в полной мере передавать достоверную информацию о свойствах и характеристиках Инкрементальный поворотный шифратор Incremental rotary encoder RSI58O-02YAAR61T-01024 Pepperl+Fuchs.

Фотография на сайте служит дополнительным источником для определения совместимости запчастей с Вашим оборудованием, и не может являться основным. Основной источник по совместимости запчастей - актуальная документация производителя оборудования, из которой значимой информацией для заказа являются: название запчасти и каталожный номер.

Запасные части и комплектующие подбираются самостоятельно покупателем строго по каталожным номерам из официальных деталировок производителей. В случае, если номенклатура товара совпадает с фактически поставленной, но не подходит на оборудование - в ее замене или возврате может быть отказано.

Цена Инкрементальный поворотный шифратор Incremental rotary encoder RSI58O-02YAAR61T-01024 Pepperl+Fuchs на сайте имеет информационный характер и может отличаться от цены в коммерческом предложении.

Клиенты

Рекомендуем

Инкрементальный поворотный шифратор General Purpose Incremental Encoder RVI58N-*******1 Pepperl+Fuchs

Каталожный номер: T151794

General specifications
Detection type		photoelectric sampling
Pulse count		max. 5000
Functional safety related parameters
MTTF_d		140 a
Mission Time (T_M)		20 a
L_10h		70 E+9 at 6000 rpm
Diagnostic Coverage (DC)		0 %
Electrical specifications
Operating voltage		10 ... 30 V DC
No-load supply current		max. 60 mA
Output
Output type		push-pull, incremental
Voltage drop		< 3 V
Load current		max. per channel 40 mA , short-circuit protected, reverse polarity protected
Output frequency		max. 200 kHz
Rise time		400 ns
Connection
Connector		type 9416 (M23), 12-pin, type 9416L (M23), 12-pin or M12 connector, 8-pin
Cable		&empty7.8 mm, 6 x 2 x 0.14 mm², 1 m
Standard conformity
Degree of protection		DIN EN 60529, IP65
Climatic testing		DIN EN 60068-2-78 , no moisture condensation
Emitted interference		EN 61000-6-4:2007/A1:2011
Noise immunity		EN 61000-6-2:2005
Shock resistance		DIN EN 60068-2-27, 100 g, 3 ms
Vibration resistance		DIN EN 60068-2-6, 10 g, 10 ... 2000 Hz
Approvals and certificates
UL approval		cULus Listed, General Purpose, Class 2 Power Source
Ambient conditions
Operating temperature
	Glass disk	-5 ... 80 °C (23 ... 176 °F) , movable cable -20 ... 80 °C (-4 ... 176 °F) , fixed cable
	Plastic disk	-5 ... 60 °C (23 ... 140 °F) , movable cable -20 ... 60 °C (-4 ... 140 °F) , fixed cable
Storage temperature
	Glass disk	-40 ... 85 °C (-40 ... 185 °F)
	Plastic disk	-40 ... 70 °C (-40 ... 158 °F)
Mechanical specifications
Material
	Housing	powder coated aluminum
	Flange	3.1645 aluminum
	Shaft	Stainless steel 1.4305 / AISI 303
Mass		approx. 350 g
Rotational speed		max. 12000 min ^-1
Moment of inertia		&le 25 gcm²
Starting torque		&le 1.5 Ncm
Shaft load
	Axial	40 N at max. 6000 min^-1 10 N at max. 12000 min^-1
	Radial	60 N at max. 6000 min^-1 20 N at max. 12000 min^-1

Инкрементальный поворотный шифратор Incremental rotary encoder TVI58N Pepperl+Fuchs

Каталожный номер: T26260

General specifications
Detection type		photoelectric sampling
Pulse count		max. 1500
Electrical specifications
Operating voltage		4.75 ... 30 V DC 5 V DC for RS-422
No-load supply current		max. 55 mA
Output
Output type		push-pull, incremental or RS-422, incremental
Voltage drop		&le 2.5 V (< 2.5 V)
Load current		max. per channel 30 mA , short-circuit protected (max. per channel 20 mA, conditionally short-circuit proof)
Output frequency		max. 100 kHz (max. 100 kHz)
Rise time		980 ns (225 ns)
De-energized delay		980 ns (225 ns)
Connection
Cable		&empty6 mm, 8 x 0.14 mm², 0.5 m, UL-Style 2571
Standard conformity
Degree of protection		DIN EN 60529, IP54
Climatic testing		DIN EN 60068-2-3, no moisture condensation
Emitted interference		EN 61000-6-4:2007/A1:2011
Noise immunity		EN 61000-6-2:2005
Shock resistance		DIN EN 60068-2-27, 100 g, 6 ms
Vibration resistance		DIN EN 60068-2-6, 10 g, 10 ... 2000 Hz
Approvals and certificates
UL approval		cULus Listed, General Purpose, Class 2 Power Source
Ambient conditions
Operating temperature		-10 ... 70 °C (14 ... 158 °F)
Storage temperature		-40 ... 80 °C (-40 ... 176 °F)
Mechanical specifications
Material
	Housing	aluminum, blank
	Flange	3.1645 aluminum
	Shaft	Stainless steel 1.4305 / AISI 303
Mass		approx. 220 g
Rotational speed		max. 6000 min ^-1
Moment of inertia		&le 20 gcm²
Starting torque		&le 0.5 Ncm
Shaft load
	Axial	20 N
	Radial	40 N

Инкрементальный поворотный шифратор Incremental rotary encoder 10-****1 Pepperl+Fuchs

Каталожный номер: T2365

General specifications
Pulse count		max. 5000
Electrical specifications
Operating voltage		10 ... 30 V DC
No-load supply current		max. 80 mA
Output
Output type		push-pull, incremental
Voltage drop		< 4 V
Load current		max. per channel 40 mA , short-circuit protected, reverse polarity protected
Output frequency		max. 100 kHz
Rise time		250 ns
De-energized delay		250 ns
Connection
Connector		type 42306 (M16), 6-pin type 42308 (M16), 8-pin type 9414 (M16), 5-pin type 9416 (M23), 12-pin
Cable		&empty6 mm, 4 x 2 x 0.14 mm², 2 m
Standard conformity
Degree of protection		DIN EN 60529, IP65
Climatic testing		DIN EN 60068-2-3, no moisture condensation
Emitted interference		EN 61000-6-4:2007/A1:2011
Noise immunity		EN 61000-6-2:2005
Approvals and certificates
UL approval		cULus Listed, General Purpose, Class 2 Power Source
Ambient conditions
Operating temperature
	Glass disk	-20 ... 70 °C (-4 ... 158 °F)
	Plastic disk	-20 ... 60 °C (-4 ... 140 °F)
Storage temperature
	Glass disk	-40 ... 70 °C (-40 ... 158 °F)
	Plastic disk	-40 ... 60 °C (-40 ... 140 °F)
Mechanical specifications
Material
	Combination 1	housing: diecast zinc flange: aluminum 3.1645 shaft: stainless steel 1.4305 / AISI 303
	Combination 2 (Inox)	housing: stainless steel flange: stainless steel shaft: stainless steel
Mass		approx. 335 g (combination 1) approx. 1400 g (combination 2)
Rotational speed		max. 10000 min ^-1
Moment of inertia		&le 30 gcm²
Starting torque		&le 1.5 Ncm
Shaft load
	Axial	60 N
	Radial	80 N

Инкрементальный поворотный шифратор Incremental rotary encoder 14-14361 Pepperl+Fuchs

Каталожный номер: T2442

General specifications
Detection type		photoelectric sampling
Pulse count		max. 5000
Electrical specifications
Operating voltage		10 ... 30 V DC
No-load supply current		max. 80 mA
Interface
Resolution
	Overall resolution
Output
Output type		push-pull, incremental
Voltage drop		< 4 V
Load current		max. per channel 40 mA , short-circuit protected, reverse polarity protected
Output frequency		max. 100 kHz
Rise time		250 ns
De-energized delay		250 ns
Connection
Cable		&empty11.2 mm, 9-core, 2 m
Standard conformity
Degree of protection		DIN EN 60529, IP66
Emitted interference		EN 61000-6-4:2007/A1:2011
Noise immunity		EN 61000-6-2:2005
Ambient conditions
Operating temperature
	Gas Ex-area	-40 ... 55 °C (-40 ... 131 °F)
	Dust Ex-area	-30 ... 55 °C (-22 ... 131 °F)
Storage temperature
	Gas Ex-area	-40 ... 70 °C (-40 ... 158 °F)
	Dust Ex-area	-30 ... 70 °C (-22 ... 158 °F)
Mechanical specifications
Material
	Housing	3.1645 aluminum
	Flange	3.1645 aluminum
	Shaft	Stainless steel 1.4305 / AISI 303
Mass		approx. 3000 g
Rotational speed		max. 6000 min ^-1
Moment of inertia		400 gcm²
Starting torque		< 5 Ncm
Shaft load
	Axial	60 N
	Radial	80 N
Data for application in connection with hazardous areas
EC-Type Examination Certificate		ZELM 02 ATEX 0078 X
	Group, category, type of protection	II 2G Ex db IIC T6 Gb II 2D Ex tb IIIC T80°C Db IP66
Directive conformity
	Directive 94/9/EC	EN 60079-0:2012 EN 60079-1:2007 EN 60079-31:2009

Инкрементальный поворотный шифратор Incremental rotary encoder RVS58N-*******Z Pepperl+Fuchs

Каталожный номер: T48582

General specifications
Detection type		photoelectric sampling
Pulse count		1024 and 2048
Functional safety related parameters
MTTF_d		1060 a
Mission Time (T_M)		20 a
L_10h		70 E+9 at 6000 rpm
Diagnostic Coverage (DC)		0 %
Electrical specifications
Operating voltage		5 V ± 5 %
No-load supply current		max. 70 mA
Output
Output type		sine / cosine
Amplitude		1 V_ss ± 10 %
Load current		max. per channel 20 mA , short-circuit protected, reverse polarity protected
Output frequency		max. 200 kHz (3 dB limit)
Connection
Connector		type 9416 (M23), 12-pin, type 9416L (M23), 12-pin
Cable		&empty7.8 mm, 6 x 2 x 0.14 mm², 1 m
Standard conformity
Degree of protection		DIN EN 60529, IP65
Climatic testing		DIN EN 60068-2-78 , no moisture condensation
Emitted interference		EN 61000-6-4:2007/A1:2011
Noise immunity		EN 61000-6-2:2005
Shock resistance		DIN EN 60068-2-27, 100 g, 3 ms
Vibration resistance		DIN EN 60068-2-6, 10 g, 10 ... 2000 Hz
Approvals and certificates
UL approval		cULus Listed, General Purpose, Class 2 Power Source
Ambient conditions
Operating temperature		-5 ... 80 °C (23 ... 176 °F) , movable cable -20 ... 80 °C (-4 ... 176 °F), fixed cable
Storage temperature		-40 ... 100 °C (-40 ... 212 °F)
Mechanical specifications
Material
	Housing	powder coated aluminum
	Flange	aluminum
	Shaft	Stainless steel
Mass		approx. 350 g
Rotational speed		max. 12000 min ^-1
Moment of inertia		&le 25 gcm²
Starting torque		&le 1.5 Ncm
Shaft load
	Axial	40 N at max. 6000 min^-1 10 N at max. 12000 min^-1
	Radial	60 N at max. 6000 min^-1 20 N at max. 12000 min^-1

Инкрементальный поворотный шифратор General Purpose Incremental Encoder RHI58N-*******X Pepperl+Fuchs

Каталожный номер: T10713

General specifications
Detection type		photoelectric sampling
Pulse count		max. 5000
Functional safety related parameters
MTTF_d		140 a
Mission Time (T_M)		20 a
L_10h		70 E+9 at 6000 rpm
Diagnostic Coverage (DC)		0 %
Electrical specifications
Operating voltage		10 ... 30 V DC
No-load supply current		max. 50 mA
Output
Output type		RS 422, incremental
Load current		max. per channel 20 mA , conditionally short-circuit proof (not with U_b), reverse polarity protected
Output frequency		max. 200 kHz
Rise time		100 ns
Connection
Cable		&empty7.8 mm, 6 x 2 x 0.14 mm², 1 m
Standard conformity
Degree of protection		DIN EN 60529, IP54
Climatic testing		DIN EN 60068-2-78 , no moisture condensation
Emitted interference		EN 61000-6-4:2007/A1:2011
Noise immunity		EN 61000-6-2:2005
Shock resistance		DIN EN 60068-2-27, 100 g, 3 ms
Vibration resistance		DIN EN 60068-2-6, 10 g, 10 ... 2000 Hz
Approvals and certificates
UL approval		cULus Listed, General Purpose, Class 2 Power Source
Ambient conditions
Operating temperature
	Glass disk	-5 ... 80 °C (23 ... 176 °F) , movable cable -20 ... 80 °C (-4 ... 176 °F), fixed cable
	Plastic disk	-5 ... 60 °C (23 ... 140 °F) , movable cable -20 ... 60 °C (-4 ... 140 °F), fixed cable
Storage temperature
	Glass disk	-40 ... 85 °C (-40 ... 185 °F)
	Plastic disk	-40 ... 70 °C (-40 ... 158 °F)
Mechanical specifications
Material
	Housing	powder coated aluminum
	Flange	3.1645 aluminum
	Shaft	Stainless steel 1.4305 / AISI 303
Mass		approx. 290 g
Rotational speed		max. 6000 min ^-1
Moment of inertia		&le 40 gcm²
Starting torque		&le 1.5 Ncm
Shaft load
	Angle offset	1 °
	Axial offset	max. 1 mm

Инкрементальный поворотный шифратор Incremental Encoder for special applications RHI58N-0BAYYR61Y-01024 Pepperl+Fuchs

Каталожный номер: 285717

General specifications
Detection type		photoelectric sampling
Pulse count		max. 1024
Functional safety related parameters
MTTF_d		140 a
Mission Time (T_M)		20 a
L_10h		70 E+9 at 6000 rpm
Diagnostic Coverage (DC)		0 %
Electrical specifications
Operating voltage		10 ... 30 V DC
No-load supply current		max. 60 mA
Output
Output type		push-pull, incremental
Voltage drop		< 3 V
Load current		max. per channel 40 mA , short-circuit protected, reverse polarity protected
Output frequency		max. 200 kHz
Rise time		400 ns
Connection
Cable		200 mm cable with M12 connector, 8-pin
Standard conformity
Degree of protection		DIN EN 60529, IP54
Climatic testing		DIN EN 60068-2-78 , no moisture condensation
Emitted interference		EN 61000-6-4:2007
Noise immunity		EN 61000-6-2:2005
Shock resistance		DIN EN 60068-2-27, 100 g, 3 ms
Vibration resistance		DIN EN 60068-2-6, 10 g, 10 ... 2000 Hz
Approvals and certificates
UL approval		cULus Listed, General Purpose, Class 2 Power Source
Ambient conditions
Operating temperature
	Plastic disk	-5 ... 60 °C (23 ... 140 °F) , movable cable -30 ... 60 °C (-4 ... 140 °F), fixed cable
Storage temperature
	Plastic disk	-40 ... 70 °C (-40 ... 158 °F)
Mechanical specifications
Material
	Housing	powder coated aluminum
	Flange	3.1645 aluminum
	Shaft	Stainless steel 1.4305 / AISI 303
Mass		approx. 290 g
Rotational speed		max. 6000 min ^-1
Moment of inertia		&le 40 gcm²
Starting torque		&le 1.5 Ncm
Shaft load
	Angle offset	1 °
	Axial offset	max. 1 mm

Инкрементальный поворотный шифратор Incremental rotary encoder TSI40N Pepperl+Fuchs

Каталожный номер: T30768

General specifications
Detection type		photoelectric sampling
Pulse count		max. 2048
Electrical specifications
Operating voltage		4.75 ... 30 V DC 5 V DC for RS-422
No-load supply current		max. 55 mA
Output
Output type		push-pull, incremental or RS-422, incremental
Voltage drop		&le 2.5 V (< 2.5 V)
Load current		max. per channel 30 mA , short-circuit protected (max. per channel 20 mA, conditionally short-circuit proof)
Output frequency		max. 100 kHz (max. 100 kHz)
Rise time		980 ns (225 ns)
De-energized delay		980 ns (225 ns)
Connection
Cable		&empty6 mm, 8 x 0,128 mm², cable length see order code
Standard conformity
Degree of protection		DIN EN 60529, IP54
Climatic testing		DIN EN 60068-2-3, no moisture condensation
Emitted interference		EN 61000-6-4:2007/A1:2011
Noise immunity		EN 61000-6-2:2005
Shock resistance		DIN EN 60068-2-27, 100 g, 6 ms
Vibration resistance		DIN EN 60068-2-6, 10 g, 10 ... 2000 Hz
Approvals and certificates
UL approval		cULus Listed, General Purpose, Class 2 Power Source
Ambient conditions
Operating temperature		-10 ... 70 °C (14 ... 158 °F) up to 1024 pulses , -10 ... 60 °C (14 ... 140 °F) from > 1024 pulses
Storage temperature		-25 ... 85 °C (-13 ... 185 °F)
Mechanical specifications
Shaft dimensions		see type code
Material
	Housing	Polycarbonate
	Flange	3.1645 aluminum
	Shaft	Stainless steel 1.4305 / AISI 303
Mass		approx. 180 g
Rotational speed		max. 6000 min ^-1
Moment of inertia		&le 4.3 gcm²
Starting torque		&le 0.2 Ncm
Shaft load
	Angle offset	1 °
	Axial offset	max. 1 mm
Life span		&ge 2 x 10⁹ revolutions (max. shaft loading)

Инкрементальный поворотный шифратор Incremental rotary encoder 10-****X Pepperl+Fuchs

Каталожный номер: T2406

General specifications
Pulse count		max. 5000
Electrical specifications
Operating voltage		10 ... 30 V DC
No-load supply current		max. 150 mA
Output
Output type		RS 422, incremental
Load current		max. per channel 20 mA , conditionally short-circuit proof, reverse polarity protected
Output frequency		max. 100 kHz
Rise time		100 ns
De-energized delay		100 ns
Connection
Connector		type 42306 (M16), 6-pin type 42308 (M16), 8-pin type 9414 (M16), 5-pin type 9416 (M23), 12-pin
Cable		&empty6 mm, 4 x 2 x 0.14 mm², 2 m
Standard conformity
Degree of protection		DIN EN 60529, IP65
Climatic testing		DIN EN 60068-2-3, no moisture condensation
Emitted interference		EN 61000-6-4:2007/A1:2011
Noise immunity		EN 61000-6-2:2005
Approvals and certificates
UL approval		cULus Listed, General Purpose, Class 2 Power Source
Ambient conditions
Operating temperature
	Glass disk	-20 ... 70 °C (-4 ... 158 °F)
	Plastic disk	-20 ... 60 °C (-4 ... 140 °F)
Storage temperature
	Glass disk	-40 ... 70 °C (-40 ... 158 °F)
	Plastic disk	-40 ... 60 °C (-40 ... 140 °F)
Mechanical specifications
Material
	Combination 1	housing: diecast zinc flange: aluminum 3.1645 shaft: stainless steel 1.4305 / AISI 303
	Combination 2 (Inox)	housing: stainless steel flange: stainless steel shaft: stainless steel
Mass		approx. 335 g (combination 1) approx. 1400 g (combination 2)
Rotational speed		max. 10000 min ^-1
Moment of inertia		&le 30 gcm²
Starting torque		&le 1.5 Ncm
Shaft load
	Axial	60 N
	Radial	80 N

Инкрементальный поворотный шифратор Incremental rotary encoder MNI20N Pepperl+Fuchs

Каталожный номер: T158322

Описание оборудования
Magnetic, Non Contact

Инкрементальный поворотный шифратор Incremental Encoder for special applications RVI58N-*******X Pepperl+Fuchs

Каталожный номер: T151796

General specifications
Detection type		photoelectric sampling
Pulse count		max. 50000
Functional safety related parameters
MTTF_d		140 a
Mission Time (T_M)		20 a
L_10h		70 E+9 at 6000 rpm
Diagnostic Coverage (DC)		0 %
Electrical specifications
Operating voltage		10 ... 30 V DC
No-load supply current		max. 50 mA
Output
Output type		RS 422, incremental
Load current		max. per channel 20 mA , conditionally short-circuit proof (not with U_b), reverse polarity protected
Output frequency		max. 200 kHz
Rise time		100 ns
Connection
Connector		type 9416 (M23), 12-pin, type 9416L (M23), 12-pin or M12 connector, 8-pin
Cable		&empty7.8 mm, 6 x 2 x 0.14 mm², 1 m
Standard conformity
Degree of protection		DIN EN 60529, IP65
Climatic testing		DIN EN 60068-2-78 , no moisture condensation
Emitted interference		EN 61000-6-4:2007/A1:2011
Noise immunity		EN 61000-6-2:2005
Shock resistance		DIN EN 60068-2-27, 100 g, 3 ms
Vibration resistance		DIN EN 60068-2-6, 10 g, 10 ... 2000 Hz
Approvals and certificates
UL approval		cULus Listed, General Purpose, Class 2 Power Source
Ambient conditions
Operating temperature		-5 ... 80 °C (23 ... 176 °F) , movable cable -20 ... 80 °C (-4 ... 176 °F) , fixed cable -40 ... 80 °C (-40 ... 176 °F) with Option T , fixed cable
Storage temperature		-40 ... 85 °C (-40 ... 185 °F)
Mechanical specifications
Material
	Housing	powder coated aluminum
	Flange	3.1645 aluminum
	Shaft	Stainless steel 1.4305 / AISI 303
Mass		approx. 350 g
Rotational speed		max. 12000 min ^-1
Moment of inertia		&le 25 gcm²
Starting torque		&le 1.5 Ncm
Shaft load
	Axial	40 N at max. 6000 min^-1 10 N at max. 12000 min^-1
	Radial	60 N at max. 6000 min^-1 20 N at max. 12000 min^-1

Инкрементальный поворотный шифратор Incremental rotary encoder RVI58L Pepperl+Fuchs

Каталожный номер: T42185

General specifications
Detection type		photoelectric sampling
Pulse count		max. 25000 , see table
Functional safety related parameters
MTTF_d		200 a
Mission Time (T_M)		25 a
L_10h		70 E+9 at 6000 rpm
Diagnostic Coverage (DC)		0 %
Electrical specifications
Operating voltage		10 ... 30 V DC or 5 V DC
No-load supply current		max. 100 mA
Output
Output type		push-pull, incremental or RS 422, incremental
Load current		max. per channel 40 mA , short-circuit prtected (not with U_b), reverse polarity protected
Output frequency		max. 600 kHz
Rise time		170 ns
Connection
Cable		2 m fixed cable
Approvals and certificates
ECOLAB		material compatibility attested for: P3-topactive DES P3-topax 19 P3-topax 56 P3-topax 66 P3-topax 91 de-mineralized water as zero value
Ambient conditions
Operating temperature		-20 ... 80 °C (-4 ... 176 °F)
Storage temperature		-20 ... 80 °C (-4 ... 176 °F)
Mechanical specifications
Degree of protection		IP67 / IP69K
Material
	Housing	stainless steel V4A
	Flange	stainless steel V4A
	Shaft	stainless steel V4A
Mass		approx. 600 g
Rotational speed		max. 3600 min ^-1
Starting torque		approx. 1 Ncm at room temperature
Shaft load
	Axial	max. 100 N
	Radial	max. 100 N
Life span		&ge 1 x 10⁹ revolutions (max. shaft loading)
