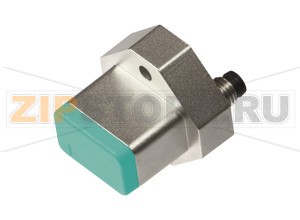

| General specifications | ||
|---|---|---|
| Switching element function | Analog voltage output | |
| Installation | flush | |
| Object distance | max. 2.5 mm | |
| Measurement range | 0 ... 14 mm | |
| Nominal ratings | ||
| Operating voltage | 18 ... 30 V DC | |
| Reverse polarity protection | reverse polarity protected | |
| Linearity error | ± 0.3 mm | |
| Repeat accuracy | ± 0.05 mm | |
| Resolution | 33 µm | |
| Temperature drift | ± 0.5 mm | |
| No-load supply current | &le 20 mA | |
| Operating voltage indicator | LED green | |
| Functional safety related parameters | ||
| MTTFd | 490 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Interface | ||
| Interface type | IO-Link | |
| Mode | COM 2 (38.4 kBaud) | |
| Value range | 0000h ... 7000h | |
| Analog output | ||
| Output type | voltage output 0 ... 10 V | |
| Load resistor | &ge 2000 &Omega | |
| Short-circuit protection | limited to 6 mA | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Standards | EN 60947-5-2:2007 EN 60947-5-2/A1:2012 IEC 60947-5-2:2007 IEC 60947-5-2 AMD 1:2012 IEC 61131-9:2013 | |
| Approvals and certificates | ||
| UL approval | cULus Listed, Class 2 Power Source, Type 1 enclosure | |
| CCC approval | CCC approval / marking not required for products rated &le36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) | |
| Mechanical specifications | ||
| Connection type | M8 x 1 connector, 4-pin | |
| Housing material | diecast zinc, not laquered or coated | |
| Degree of protection | IP67 | |
| Material | ||
| Target | mild steel, e. g. 1.0037, SR235JR (formerly St37-2) | |
| Note | The data relating to accuracy only apply to a distance to the object to be detected of 1 ... 2.5 mm. | |
| Производитель | Pepperl+Fuchs |
Все информационные материалы, представленные на сайте, носят справочный характер и не могут в полной мере передавать достоверную информацию о свойствах и характеристиках Индуктивная система позиционирования Inductive positioning system PMI14V-F112-U-IO-V31 Pepperl+Fuchs.
Фотография на сайте служит дополнительным источником для определения совместимости запчастей с Вашим оборудованием, и не может являться основным. Основной источник по совместимости запчастей - актуальная документация производителя оборудования, из которой значимой информацией для заказа являются: название запчасти и каталожный номер.
Запасные части и комплектующие подбираются самостоятельно покупателем строго по каталожным номерам из официальных деталировок производителей. В случае, если номенклатура товара совпадает с фактически поставленной, но не подходит на оборудование - в ее замене или возврате может быть отказано.
Цена Индуктивная система позиционирования Inductive positioning system PMI14V-F112-U-IO-V31 Pepperl+Fuchs на сайте имеет информационный характер и может отличаться от цены в коммерческом предложении.
| General specifications | ||
|---|---|---|
| Switching element function | analog, current or voltage output | |
| Object distance | max. 6 mm | |
| Measurement range | 0 ... 210 mm | |
| Nominal ratings | ||
| Operating voltage | 18 ... 30 V DC | |
| Reverse polarity protection | reverse polarity protected | |
| Linearity error | ± 0.4 mm | |
| Repeat accuracy | ± 0.2 mm | |
| Resolution | 210 µm | |
| Temperature drift | ± 0.5 mm (-25 °C ... 70 °C) | |
| No-load supply current | &le 40 mA | |
| Operating voltage indicator | LED green | |
| Functional safety related parameters | ||
| MTTFd | 310 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Analog output | ||
| Output type | 1 current output: 4 ... 20 mA 1 voltage output: 0 ... 10 V | |
| Load resistor | current output: &le 400 &Omega voltage output: &ge 1000 &Omega | |
| Short-circuit protection | voltage output: pulsing | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Standards | EN 60947-5-2:2007 IEC 60947-5-2:2007 | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose, Class 2 Power Source | |
| CCC approval | CCC approval / marking not required for products rated &le36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) | |
| Mechanical specifications | ||
| Connection type | 4-pin, M12 x 1 connector | |
| Housing length L | 250 mm | |
| Degree of protection | IP65 | |
| Material | ||
| Housing | PA 6 / AL | |
| Target | mild steel, e. g. 1.0037, SR235JR (formerly St37-2) | |
| Note | The data relating to accuracy only apply to a distance to the object to be detected of 1 ... 6 mm. | |
| General specifications | ||
|---|---|---|
| Switching element function | PNP | |
| Object distance | 0.5 ... 2 mm | |
| Measurement range | 0 ... 14 mm | |
| Nominal ratings | ||
| Operating voltage | 18 ... 30 V DC | |
| Reverse polarity protection | reverse polarity protected | |
| Voltage drop | &le 3 V | |
| Linearity error | ± 0.3 mm | |
| Repeat accuracy | ± 0.05 mm | |
| Resolution | 33 µm | |
| Temperature drift | ± 0.3 mm (With a target distance of 0.5 mm) | |
| No-load supply current | &le 20 mA | |
| Functional safety related parameters | ||
| MTTFd | 880 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Switching output | ||
| Output type | PNP (2 Channels) | |
| Operating current | per channel 50 mA , Combined max. 80 mA | |
| Switching window | position programmable, width 2 mm | |
| Switching hysteresis | 0.4 mm | |
| Short-circuit protection | pulsing | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Standards | EN 60947-5-2:2007 IEC 60947-5-2:2007 EN 60947-5-7:2003 | |
| Ambient conditions | ||
| Ambient temperature | -10 ... 70 °C (14 ... 158 °F) | |
| Storage temperature | -20 ... 70 °C (-4 ... 158 °F) | |
| Mechanical specifications | ||
| Connection type | 5 x 0.14 mm2 , screened 2 m PUR cable | |
| Degree of protection | IP65 | |
| Material | ||
| Housing | Zinc die-casting, nickel-plated cover , PBT | |
| Target | mild steel, e. g. 1.0037, SR235JR (formerly St37-2) | |
| Mass | 95 g | |
| General specifications | ||
|---|---|---|
| Switching element function | Analog voltage output | |
| Object distance | 0.5 ... 2 mm | |
| Measurement range | 0 ... 14 mm | |
| Nominal ratings | ||
| Operating voltage | 18 ... 30 V | |
| Reverse polarity protection | reverse polarity protected | |
| Linearity error | ± 0.3 mm | |
| Repeat accuracy | ± 0.05 mm | |
| Resolution | 33 µm | |
| Temperature drift | ± 0.4 mm | |
| No-load supply current | &le 20 mA | |
| Analog output | ||
| Output type | 1 voltage output: 0 ... 10 V | |
| Load resistor | &ge 1000 &Omega | |
| Short-circuit protection | pulsing | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Standards | EN 60947-5-2:2007 IEC 60947-5-2:2007 | |
| Ambient conditions | ||
| Ambient temperature | -10 ... 70 °C (14 ... 158 °F) | |
| Mechanical specifications | ||
| Connection type | Male cordset, M12 , 5-pin 1 m, PUR cable | |
| Material | ||
| Housing | Zinc die-casting, nickel-plated cover , PBT | |
| Target | mild steel, e. g. 1.0037, SR235JR (formerly St37-2) | |
| Mass | 71 g | |
| General specifications | ||
|---|---|---|
| Measurement range | max. 360° min. 45° | |
| Adjustment range | 2 switch frames programmable , min. 5°, max. 360° | |
| Rotational speed | max. 100 min-1 | |
| Nominal ratings | ||
| Operating voltage | 18 ... 30 V DC | |
| Reverse polarity protection | reverse polarity protected | |
| Repeat accuracy | ± 0.25 ° | |
| Resolution | 0.2 ° | |
| Temperature drift | 0.02 ° / °C (-25 °C ... 70 °C) | |
| No-load supply current | &le 45 mA | |
| Functional safety related parameters | ||
| MTTFd | 450 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| LED yellow 1 | switching state, Switching output 1 | |
| LED yellow 2 | switching state, Switching output 2 | |
| LED PWR/ERR | Status display LED, green/red (Power on / missing actuator / keylock) | |
| LED U/I | Activator within measuring range | |
| Switching output | ||
| Output type | 2 switch outputs PNP, NO , reverse polarity protected , short-circuit protected , programmable | |
| Operating current | &le 100 mA | |
| Switching hysteresis | 1 ° | |
| Voltage drop | &le 3 V | |
| Short-circuit protection | pulsing | |
| Analog output | ||
| Output type | current output or voltage output (load dependend) 4 ... 20 mA (RL < 400 &Omega) 0 ... 10 V (RL > 3.3 k&Omega) | |
| Linearity error | ± 0.6 ° , (with original actuator) | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Standards | EN 60947-5-2:2007 IEC 60947-5-2:2007 | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose, Class 2 Power Source | |
| CCC approval | CCC approval / marking not required for products rated &le36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) | |
| Mechanical specifications | ||
| Connection type | 5-pin, M12 x 1 connector | |
| Degree of protection | IP67 | |
| Material | ||
| Housing | PBT | |
| Target | mild steel, e. g. 1.0037, SR235JR (formerly St37-2) | |
| Mass | 180 g | |
| General specifications | ||
|---|---|---|
| Installation | non-flush | |
| Measurement range | 360° | |
| Rotational speed | max. 100 min-1 | |
| Nominal ratings | ||
| Operating voltage | 18 ... 30 V | |
| Reverse polarity protection | reverse polarity protected | |
| Repeat accuracy | ± 0.25 ° | |
| Resolution | 0.4° | |
| Temperature drift | 0.02 ° / °C (-25 °C ... 70 °C) | |
| No-load supply current | &le 45 mA | |
| Operating voltage indicator | LED green | |
| Functional safety related parameters | ||
| MTTFd | 265 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Switching output | ||
| Output type | 2 switch outputs PNP, NO , reverse polarity protected , short-circuit protected | |
| Operating current | &le 100 mA | |
| Voltage drop | &le 3 V | |
| Short-circuit protection | pulsing | |
| Analog output | ||
| Output type | 1 current output: 4 ... 20 mA | |
| Linearity error | ± 0.6 ° , (with original actuator) | |
| Load resistor | &le 400 &Omega | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Standards | EN 60947-5-2:2007 IEC 60947-5-2:2007 | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose, Class 2 Power Source | |
| CCC approval | CCC approval / marking not required for products rated &le36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) | |
| Storage temperature | -40 ... 100 °C (-40 ... 212 °F) | |
| Mechanical specifications | ||
| Connection type | 5-pin, M12 x 1 connector | |
| Housing material | PBT | |
| Shaft diameter | max. 27.5 mm Steel | |
| Degree of protection | IP67 | |
| Mass | 180 g | |
| General specifications | ||
|---|---|---|
| Switching element function | analog, current or voltage output | |
| Object distance | 0.5 ... 3 mm , recommended: 2 mm | |
| Measurement range | 0 ... 104 mm | |
| Linearity range | 1 ... 103 mm | |
| Nominal ratings | ||
| Operating voltage | 18 ... 30 V DC | |
| Reverse polarity protection | reverse polarity protected | |
| Linearity error | within measuring range: ± 0.8 mm within linearity range: ± 0.4 mm | |
| Repeat accuracy | ± 0.1 mm | |
| Resolution | 125 µm | |
| Temperature drift | ± 0.5 mm (-25 °C ... 70 °C) | |
| No-load supply current | &le 40 mA | |
| Operating voltage indicator | LED green | |
| Functional safety related parameters | ||
| MTTFd | 320 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Analog output | ||
| Output type | 1 current output: 4 ... 20 mA 1 voltage output: 0 ... 10 V | |
| Load resistor | current output: &le 400 &Omega voltage output: &ge 1000 &Omega | |
| Short-circuit protection | voltage output: pulsing | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Standards | EN 60947-5-2:2007 IEC 60947-5-2:2007 EN 60947-5-7:2003 IEC 60947-5-7:2003 | |
| Approvals and certificates | ||
| EAC conformity | TR CU 020/2011 | |
| UL approval | cULus Listed, General Purpose, Class 2 Power Source | |
| CCC approval | CCC approval / marking not required for products rated &le36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) | |
| Mechanical specifications | ||
| Connection type | 4-pin, M12 x 1 connector | |
| Degree of protection | IP67 | |
| Material | ||
| Housing | ABS | |
| Target | mild steel, e. g. 1.0037, SR235JR (formerly St37-2) | |
| General specifications | ||
|---|---|---|
| Switching element function | Analog current output | |
| Object distance | 0.5 ... 3 mm , recommended: 2 mm | |
| Measurement range | 0 ... 40 mm | |
| Nominal ratings | ||
| Operating voltage | 18 ... 30 V DC | |
| Reverse polarity protection | reverse polarity protected | |
| Linearity error | ± 0.4 mm | |
| Repeat accuracy | ± 0.1 mm | |
| Resolution | 33 µm | |
| Temperature drift | ± 0.5 mm | |
| No-load supply current | &le 60 mA | |
| Operating voltage indicator | LED green | |
| Functional safety related parameters | ||
| MTTFd | 202 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Analog output | ||
| Output type | current output 4 ... 20 mA | |
| Load resistor | current output &le 500 &Omega | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Standards | EN 60947-5-2:2007 IEC 60947-5-2:2007 EN 60947-5-7:2003 IEC 60947-5-7:2003 | |
| Ambient conditions | ||
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) | |
| Mechanical specifications | ||
| Connection type | 5-pin, M12 x 1 connector | |
| Degree of protection | IP67 | |
| Material | ||
| Housing | PBT | |
| Target | mild steel, e. g. 1.0037, SR235JR (formerly St37-2) | |
| General specifications | ||
|---|---|---|
| Switching element function | analog, current or voltage output | |
| Object distance | 0.5 ... 3 mm , recommended: 2 mm | |
| Measurement range | 0 ... 120 mm | |
| Linearity range | 1 ... 119 mm | |
| Nominal ratings | ||
| Operating voltage | 18 ... 30 V DC | |
| Reverse polarity protection | reverse polarity protected | |
| Linearity error | within measuring range: ± 0.8 mm within linearity range: ± 0.4 mm | |
| Repeat accuracy | ± 0.1 mm | |
| Resolution | 125 µm | |
| Temperature drift | ± 0.5 mm (-25 °C ... 70 °C) | |
| No-load supply current | &le 40 mA | |
| Operating voltage indicator | LED green | |
| Analog output | ||
| Output type | 1 current output: 4 ... 20 mA 1 voltage output: 0 ... 10 V | |
| Load resistor | current output: &le 400 &Omega voltage output: &ge 1000 &Omega | |
| Short-circuit protection | voltage output: pulsing | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Standards | EN 60947-5-2:2007 IEC 60947-5-2:2007 EN 60947-5-7:2003 IEC 60947-5-7:2003 | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose, Class 2 Power Source | |
| CCC approval | CCC approval / marking not required for products rated &le36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) | |
| Mechanical specifications | ||
| Connection type | 4-pin, M12 x 1 connector | |
| Degree of protection | IP67 | |
| Material | ||
| Housing | ABS | |
| Target | mild steel, e. g. 1.0037, SR235JR (formerly St37-2) | |
| General specifications | ||
|---|---|---|
| Switching element function | Analog voltage output | |
| Installation | flush | |
| Object distance | max. 2.5 mm | |
| Measurement range | 0 ... 14 mm | |
| Nominal ratings | ||
| Operating voltage | 18 ... 30 V DC | |
| Reverse polarity protection | reverse polarity protected | |
| Linearity error | ± 0.3 mm | |
| Repeat accuracy | ± 0.05 mm | |
| Resolution | 33 µm | |
| Temperature drift | ± 0.5 mm | |
| No-load supply current | &le 20 mA | |
| Operating voltage indicator | LED green | |
| Functional safety related parameters | ||
| MTTFd | 490 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Interface | ||
| Interface type | IO-Link | |
| Mode | COM 2 (38.4 kBaud) | |
| Value range | 0000h ... 7000h | |
| Analog output | ||
| Output type | voltage output 0 ... 10 V | |
| Load resistor | &ge 2000 &Omega | |
| Short-circuit protection | limited to 6 mA | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Standards | EN 60947-5-2:2007 EN 60947-5-2/A1:2012 IEC 60947-5-2:2007 IEC 60947-5-2 AMD 1:2012 IEC 61131-9:2013 | |
| Approvals and certificates | ||
| UL approval | cULus Listed, Class 2 Power Source, Type 1 enclosure | |
| CCC approval | CCC approval / marking not required for products rated &le36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) | |
| Mechanical specifications | ||
| Connection type | 2 m PUR cable , screened | |
| Housing material | diecast zinc, not laquered or coated | |
| Degree of protection | IP67 | |
| Material | ||
| Target | mild steel, e. g. 1.0037, SR235JR (formerly St37-2) | |
| Note | The data relating to accuracy only apply to a distance to the object to be detected of 1 ... 2.5 mm. | |
| General specifications | ||
|---|---|---|
| Switching element function | Analog voltage output | |
| Object distance | 0.5 ... 2 mm | |
| Measurement range | 0 ... 14 mm | |
| Nominal ratings | ||
| Operating voltage | 18 ... 30 V | |
| Reverse polarity protection | reverse polarity protected | |
| Linearity error | ± 0.3 mm | |
| Repeat accuracy | ± 0.05 mm | |
| Resolution | 33 µm | |
| Temperature drift | ± 0.4 mm | |
| No-load supply current | &le 20 mA | |
| Analog output | ||
| Output type | 1 voltage output: 0 ... 10 V | |
| Load resistor | &ge 1000 &Omega | |
| Short-circuit protection | pulsing | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Standards | EN 60947-5-2:2007 IEC 60947-5-2:2007 | |
| Ambient conditions | ||
| Ambient temperature | -10 ... 70 °C (14 ... 158 °F) | |
| Mechanical specifications | ||
| Connection type | 1 m, PUR cable | |
| Core cross-section | 5 x 0.25 mm2 | |
| Material | ||
| Housing | Zinc die-casting, nickel-plated cover , PBT | |
| Target | mild steel, e. g. 1.0037, SR235JR (formerly St37-2) | |
| Mass | 65 g | |
| General specifications | ||
|---|---|---|
| Installation | flush | |
| Object distance | max. 2.5 mm | |
| Measurement range | 0 ... 14 mm | |
| Nominal ratings | ||
| Operating voltage | 10 ... 30 V | |
| Reverse polarity protection | reverse polarity protected | |
| Linearity error | ± 0.3 mm | |
| Repeat accuracy | ± 0.05 mm | |
| Resolution | 33 µm | |
| Temperature drift | ± 0.5 mm | |
| No-load supply current | &le 20 mA | |
| Operating voltage indicator | LED green | |
| Functional safety related parameters | ||
| MTTFd | 490 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Interface | ||
| Interface type | IO-Link | |
| Mode | COM 2 (38.4 kBaud) | |
| Value range | 0000h ... 7000h | |
| Switching output | ||
| Output type | 2 Push-pull (4 in 1) outputs , short-circuit protected , reverse polarity protected , overvoltage protected , programmable | |
| Operating current | &le 100 mA / output | |
| Switching hysteresis | 3-step, adjustable 0.2 m ... 0.8 mm | |
| Voltage drop | &le 3 V | |
| Short-circuit protection | pulsing | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Standards | EN 60947-5-2:2007 EN 60947-5-2/A1:2012 IEC 60947-5-2:2007 IEC 60947-5-2 AMD 1:2012 IEC 61131-9:2013 | |
| Approvals and certificates | ||
| UL approval | cULus Listed, Class 2 Power Source, Type 1 enclosure | |
| CCC approval | CCC approval / marking not required for products rated &le36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) | |
| Mechanical specifications | ||
| Connection type | M8 x 1 connector, 4-pin | |
| Housing material | diecast zinc, not laquered or coated | |
| Degree of protection | IP67 | |
| Material | ||
| Target | mild steel, e. g. 1.0037, SR235JR (formerly St37-2) | |
| Note | The data relating to accuracy only apply to a distance to the object to be detected of 1 ... 2.5 mm. | |
