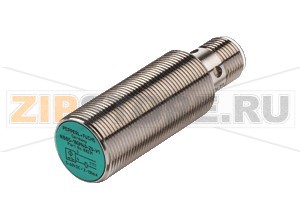

Индуктивный датчик Inductive sensor NRB8-18GS40-E2-V1 Pepperl+Fuchs

Name: Индуктивный датчик Inductive sensor NRB8-18GS40-E2-V1 Pepperl+Fuchs
Brand: Pepperl+Fuchs
SKU: 264613

Каталожный номер 264613

Индуктивный датчик Inductive sensor NRB8-18GS40-E2-V1 Pepperl+Fuchs General specificationsSwitching functionNormally open (NO)Output typePNPRated operating distance8 mmInstallationflushOutput polarityDCAssured operating distance0 ... 6.48 mmReduction factor rAl 1Reduction factor rCu 1Reduction factor r304 1Reduction factor rSt37 1Output type3-wireNominal ratingsOperating voltage10 ... 30 V DCSwitching frequency0 ... 1200 HzHysteresistyp. 5 %Reverse polarity protectionreverse polarity protectedShort-circuit protectionpulsingVoltage drop&le 2 VRated insulation voltage60 VOperating current0 ... 200 mAOff-state current0 ... 0.5 mA typ. 0.1 &microA at 25 °CNo-load supply current&le 12 mAConstant magnetic field200 mTAlternating magnetic field200 mTSwitching state indicatorMultihole-LED, yellowFunctional safety related parametersMTTFd1393 aMission Time (TM)20 aDiagnostic Coverage (DC)0 %Approvals and certificatesProtection classIIRated insulation voltage60 VRated impulse withstand voltage800 VUL approvalcULus Listed, General Purpose Class 2 power sourceCSA approvalcCSAus Listed, General Purpose Class 2 power sourceCCC approvalCCC approval / marking not required for products rated &le36 VAmbient conditionsAmbient temperature-25 ... 70 °C (-13 ... 158 °F)Storage temperature-40 ... 85 °C (-40 ... 185 °F)Mechanical specificationsConnection typeConnector M12 x 1 , 4-pinHousing materialStainless steel 1.4305 / AISI 303Sensing facePBTHousing diameter18 mmDegree of protectionIP67Mass36 gGeneral informationScope of delivery2 self locking nuts in scope of delivery

Розничная цена

114 $ с НДС ≈ 10 838 ₽ с НДС

Последнее обновление цены:

Купить в 1 клик

Скидки от суммы заказа

Гарантия от производителя

Ходовые товары на складе

Наличный и безналичный расчет

Доставка по России и СНГ

Добавлено в корзину!

Товаров: 0

На сумму: 0

Описание

Оплата

Доставка

Гарантия

Инструкции

Описание товара

Индуктивный датчик NRB8-18GS40-E2-V1 Pepperl+Fuchs (артикул 264613) предназначен для бесконтактного обнаружения металлических объектов и используется в станках, транспортерных линиях, упаковочном оборудовании, на позиционирующих узлах и системах подсчета. Корпус из нержавеющей стали и герметичное исполнение обеспечивают стабильную работу в условиях вибраций, пыли и влажности, а светодиодный индикатор упрощает диагностику на месте установки.

Датчик реализует типовую логику PNP с нормально разомкнутым выходом, подходит для подключения к ПЛК и модульным входам постоянного тока. Конструктив с утопленным монтажом снижает влияние окружающих металлических поверхностей, а стандартный разъем M12 облегчает замену и обслуживание. Устойчивость к коротким замыканиям и переполюсовке повышает надежность при пуско-наладке.

Признаки, что датчик вышел из строя

Отсутствует переключение выхода при поднесении стандартной металлической мишени, индикатор не реагирует.
Индикатор горит постоянно или мерцает без наличия объекта, выход «завис» в одном состоянии.
Резкое уменьшение дистанции срабатывания, нестабильное срабатывание, ложные переключения.
На выходе отсутствует ожидаемый уровень сигнала при нормальном питании (контролируется мультиметром).
Нагрев корпуса, следы влаги под чувствительной поверхностью, механические повреждения торца.

Типовые причины отказов

Неправильное подключение по полярности или подача питания вне допустимого диапазона; импульсные перенапряжения от катушек клапанов и реле без снабберов.
Механическое воздействие: удар, перекос при затяжке, абразивный износ торца стружкой и пылью.
Попадание влаги и охлаждающих жидкостей при нарушении герметичности или использовании агрессивной химии, несовместимой с материалом чувствительной поверхности.
Воздействие сильных магнитных полей и сварочных токов, наводки и помехи при неэкранированной проводке.
Неправильный монтаж в металле без соблюдения рекомендаций по утопленному исполнению и взаимному расстоянию сенсоров.
Эксплуатация вне допустимых температур или длительная работа на токах нагрузки, близких к предельным.

Как проверить работоспособность

Убедиться в корректности питания и распиновки разъема M12. Проверить, что «плюс» и «минус» поданы согласно схеме, выход подключен к соответствующему входу ПЛК.
Проверить реакцию индикатора и напряжение на выходе при поднесении стандартной металлической мишени на паспортном расстоянии.
Исключить внешние факторы: убрать магнитные поля, металлическую стружку на торце, проверить надежность контактов и целостность кабеля.
При быстродвижущихся объектах оценить частоту срабатываний—при необходимости проверить осциллографом или счетчиком импульсов.
Для исключения перегрузки временно подключить типовую тестовую нагрузку и измерить ток.

Клиенты

Рекомендуем

Индуктивный датчик Inductive sensor NRB8-18GM50-A2-C Pepperl+Fuchs

Каталожный номер: 292526

General specifications
Rated operating distance		8 mm
Installation		flush
Output polarity		switched high
Assured operating distance		0 ... 6.48 mm
Reduction factor r_Al		1
Reduction factor r_Cu		1
Reduction factor r₃₀₄		1
Reduction factor r_St37		1
Output type		4-wire
Nominal ratings
Operating voltage		10 ... 30 V DC
Switching frequency		0 ... 600 Hz
Hysteresis		typ. 5 %
Reverse polarity protection		reverse polarity protected
Short-circuit protection		pulsing
Voltage drop		&le 2 V
Rated insulation voltage		60 V
Operating current		0 ... 200 mA
Off-state current		0 ... 0.5 mA typ. 0.1 µA at 25 °C
No-load supply current		&le 12 mA
Constant magnetic field		200 mT
Alternating magnetic field		200 mT
Switching state indicator		all direction LED, yellow
Functional safety related parameters
MTTF_d		1393 a
Mission Time (T_M)		20 a
Diagnostic Coverage (DC)		0 %
Approvals and certificates
Protection class		II
	Rated insulation voltage	60 V
	Rated impulse withstand voltage	800 V
UL approval		cULus Listed, General Purpose Class 2 power source
CSA approval		cCSAus Listed, General Purpose Class 2 power source
CCC approval		CCC approval / marking not required for products rated &le36 V
Ambient conditions
Ambient temperature		-25 ... 70 °C (-13 ... 158 °F)
Storage temperature		-40 ... 85 °C (-40 ... 185 °F)
Mechanical specifications
Connection type		cable PUR , 2 m
Core cross-section		0.34 mm²
Housing material		Brass, PTFE coated
Sensing face		PPS
Housing diameter		18 mm
Degree of protection		IP68 / IP69K
Mass		80 g
General information
Scope of delivery		2 self locking nuts in scope of delivery

Индуктивный датчик Inductive sensor NRB8-18GH40-E2 Pepperl+Fuchs

Каталожный номер: 238516

General specifications
Switching function		Normally open (NO)
Output type		PNP
Rated operating distance		8 mm
Installation		flush
Output polarity		DC
Assured operating distance		0 ... 6.48 mm
Reduction factor r_Al		1
Reduction factor r_Cu		1
Reduction factor r₃₀₄		1
Reduction factor r_St37		1
Nominal ratings
Operating voltage		10 ... 30 V DC
Switching frequency		0 ... 1200 Hz
Hysteresis		typ. 5 %
Reverse polarity protection		reverse polarity protected
Short-circuit protection		pulsing
Voltage drop		&le 2 V
Rated insulation voltage		60 V
Operating current		0 ... 200 mA
Off-state current		0 ... 0.5 mA typ. 0.1 µA at 25 °C
No-load supply current		&le 12 mA
Constant magnetic field		200 mT
Alternating magnetic field		200 mT
Switching state indicator		Multihole-LED, yellow
Functional safety related parameters
MTTF_d		1393 a
Mission Time (T_M)		20 a
Diagnostic Coverage (DC)		0 %
Approvals and certificates
Protection class		II
	Rated insulation voltage	60 V
	Rated impulse withstand voltage	800 V
UL approval		cULus Listed, General Purpose Class 2 power source
CSA approval		cCSAus Listed, General Purpose Class 2 power source
CCC approval		CCC approval / marking not required for products rated &le36 V
Ambient conditions
Ambient temperature		-25 ... 85 °C (-13 ... 185 °F)
Storage temperature		-40 ... 85 °C (-40 ... 185 °F)
Mechanical specifications
Connection type		cable PVC , 2 m
Core cross-section		0.34 mm²
Housing material		stainless steel 1.4404 / AISI 316L
Sensing face		LCP, (conforms with FDA)
Housing diameter		18 mm
Degree of protection		IP68 / IP69K
Mass		73 g
General information
Scope of delivery		Supplied with 2 nuts

Индуктивный датчик Inductive ring sensor RC10-14-N3 Pepperl+Fuchs

Каталожный номер: 51666

General specifications
Switching function		Normally closed (NC)
Output type		NAMUR, bistable
Inside diameter		10 mm
Measuring cylinder
	Diameter	2.5 mm
	Length	3 mm
Measuring cone
	Material	9S20K
Output type		2-wire
Nominal ratings
Nominal voltage		8.2 V (R_i approx. 1 k&Omega)
Hysteresis		typ. 1 %
Reverse polarity protection		reverse polarity protected
Current consumption
	Traverse B	3 mA
	Traverse A	1 mA
Functional safety related parameters
MTTF_d		2144 a
Mission Time (T_M)		20 a
Diagnostic Coverage (DC)		0 %
Compliance with standards and directives
Standard conformity
	NAMUR	EN 60947-5-6:2000 IEC 60947-5-6:1999
Approvals and certificates
FM approval
	Control drawing	116-0165F
UL approval		cULus Listed, General Purpose
CSA approval		cCSAus Listed, General Purpose
Ambient conditions
Ambient temperature		-20 ... 100 °C (-4 ... 212 °F)
Mechanical specifications
Connection type		cable PVC , 2 m
Core cross-section		0.14 mm²
Housing material		PBT
Degree of protection		IP67
Cable
	Bending radius	> 10 x cable diameter
General information
Use in the hazardous area		see instruction manuals
	Category	2G

Индуктивный датчик Inductive sensor NJ5-30GK-S1N-15M Pepperl+Fuchs

Каталожный номер: 250950

General specifications
Switching function		Normally open (NO)
Output type		NAMUR with safety function
Rated operating distance		5 mm
Installation		flush in mild steel
Assured operating distance		0 ... 4.05 mm
Reduction factor r_Al		1
Reduction factor r_Cu		1
Reduction factor r₃₀₄		0
Safety Integrity Level (SIL)		up to SIL3 acc. to IEC 61508 Danger! In safety-related applications the sensor must be operated with a qualified fail safe interface from Pepperl+Fuchs, such as KFD2-SH-EX1. Consider the "exida Functional Safety Assessment" document which is available on www.pepperl-fuchs.com as an integral part of this product's documentation.
Nominal ratings
Nominal voltage		8.2 V
Switching frequency		0 ... 150 Hz
Current consumption
	Measuring plate not detected	&le 1 mA
	Measuring plate detected	&ge 3 mA
Functional safety related parameters
MTTF_d		11850 a
Mission Time (T_M)		20 a
Diagnostic Coverage (DC)		0 %
Approvals and certificates
UL approval		cULus Listed, General Purpose
CCC approval		CCC approval / marking not required for products rated &le36 V
Ambient conditions
Ambient temperature		-25 ... 100 °C (-13 ... 212 °F)
Mechanical specifications
Connection type		cable silicone , 15 m
Core cross-section		0.75 mm²
Housing material		Crastin (PBTB), black
Sensing face		Crastin (PBTB), black
Housing diameter		30 mm
Degree of protection		IP68
Cable
	Bending radius	> 10 x cable diameter
Note		only for non-ferrous metal
Equipment protection level Gc (nA)
Certificate of Compliance		PF 15CERT3754 X
Special conditions
	Protection against transients	Ensure transient protection is provided and that the maximum value of the transient protection (140% of 85 V) is not exceeded.
Equipment protection level Dc (tc)
Instruction		Manual electrical apparatus for hazardous areas
Device category 3D		for use in hazardous areas with combustible dust
Certificate of Compliance		PF 15CERT3774 X
CE marking		[PD-Z02586A]
ATEX marking		II 3D Ex tc IIIC T80°C Dc The Ex-related marking can also be printed on the enclosed label.
Standards		EN 60079-0:2012+A11:2013, EN 60079-31:2014 Protection by enclosure "tc" Some of the information in this instruction manual is more specific than the information provided in the datasheet.
General		The corresponding datasheets, declarations of conformity, EC-type examination certificates, certifications, and control drawings, where applicable (see datasheets), form an integral part of this document. These documents can be found at www.pepperl-fuchs.com. The maximum surface temperature of the device was determined without a layer of dust on the apparatus. Some of the information in this instruction manual is more specific than the information provided in the datasheet.
Installation, commissioning		Laws and/or regulations and standards governing the use or intended usage goal must be observed. The adhesive label provided must be affixed in the immediate vicinity of the sensor! The surface to which the label is applied must be clean, flat and free from grease! The affixed adhesive label must be readable and durable, taking account of the possibility of chemical corrosion!
Maintenance		No changes can be made to apparatus, which are operated in hazardous areas. Repairs to these apparatus are not possible.
Special conditions
	Minimum series resistance R_V	A minimum series resistance RV is to be provided between the power supply voltage and the proximity switch in accordance with the following list. This can also be assured by using a switch amplifier.
	Maximum operating voltage U_Bmax	The maximum permissible operating voltage UBmax must be restricted to the values given in the following list. Tolerances are not permitted.
	Maximum permissible ambient temperature T_Umax	Values can be obtained from the following list, depending on the max. operating voltage Ub max and the minimum series resistance Rv.
	at U_Bmax=9 V, R_V=562 &Omega	58 °C (136.4 °F)
	using an amplifier in accordance with EN 60947-5-6	331 K
	Protection from mechanical danger	The sensor must not be exposed to ANY FORM of mechanical danger.
	Protection from UV light	The sensor and the connection cable must be protected from damaging UV-radiation. This can be achieved when the sensor is used in internal areas.
	Protection of the connection cable	The connection cable must be prevented from being subjected to tension and torsional loading.
	Electrostatic charge	Avoid electrostatic charges that can cause electrostatic discharge when installing or operating the device. Information on electrostatic hazards can be found in the technical specification IEC/TS 60079-32-1. Do not attach the nameplate provided in areas where electrostatic charge can build up.
General information
Use in the hazardous area		see instruction manuals
	Category	1G 2G 3G 1D 3D

Индуктивный датчик Inductive sensor NJ50-FP-E-P1 Pepperl+Fuchs

Каталожный номер: 17588

General specifications
Switching function		Normally open (NO)
Output type		NPN
Rated operating distance		50 mm
Installation		non-flush
Output polarity		DC
Assured operating distance		0 ... 40.5 mm
Reduction factor r_Al		0.4
Reduction factor r_Cu		0.3
Reduction factor r₃₀₄		0.85
Nominal ratings
Operating voltage		10 ... 30 V
Switching frequency		0 ... 100 Hz
Hysteresis		typ. 3 %
Reverse polarity protection		reverse polarity protected
Short-circuit protection		pulsing
Voltage drop		&le 3 V
Operating current		0 ... 200 mA
Off-state current		0 ... 0.5 mA typ. 0.1 µA at 25 °C
No-load supply current		&le 20 mA
Operating voltage indicator		LED, green
Switching state indicator		LED, yellow
Approvals and certificates
UL approval		cULus Listed, General Purpose
CSA approval		cCSAus Listed, General Purpose
Ambient conditions
Ambient temperature		-25 ... 70 °C (-13 ... 158 °F)
Mechanical specifications
Connection type		screw terminals
Information for connection		A maximum of two conductors with the same core cross section may be mounted on one terminal connection! tightening torque 1.2 Nm + 10 %
Core cross-section		up to 2.5 mm²
	Minimum core cross-section	without wire end ferrule 0.5 mm² , with connector sleeves 0.34 mm²
	Maximum core cross-section	without wire end ferrule 2.5 mm² , with connector sleeves 1.5 mm²
Housing material		PBT
Sensing face		PBT
Degree of protection		IP67

Индуктивный датчик Inductive sensor NJ40+U1+E1 Pepperl+Fuchs

Каталожный номер: 84527

General specifications
Switching function		Normally closed (NC)
Output type		NPN
Rated operating distance		40 mm
Installation		non-flush
Output polarity		DC
Assured operating distance		0 ... 32.4 mm
Actual operating distance		36 ... 44 mm typ. 40 mm
Reduction factor r_Al		0.5
Reduction factor r_Cu		0.45
Reduction factor r₃₀₄		0.8
Nominal ratings
Operating voltage		10 ... 60 V
Switching frequency		0 ... 100 Hz
Hysteresis		1 ... 10 typ. 5 %
Reverse polarity protection		reverse polarity protected
Short-circuit protection		pulsing
Voltage drop		&le 2.8 V
Voltage drop at I_L
	Voltage drop I_L = 1mA, switching element on	0.5 ... 2.3 V typ. 0.9 V
	Voltage drop I_L = 10mA, switching element on	0.8 ... 2.2 V typ. 1.4 V
	Voltage drop I_L = 20mA, switching element on	0.9 ... 2.3 V typ. 1.5 V
	Voltage drop I_L = 50mA, switching element on	0.9 ... 2.5 V typ. 1.6 V
	Voltage drop I_L = 100mA, switching element on	1 ... 2.6 V typ. 1.8 V
	Voltage drop I_L = 200mA, switching element on	1.2 ... 2.8 V typ. 2 V
Operating current		0 ... 200 mA
Off-state current		0 ... 0.5 mA typ. 0.01 mA
	Off-state current T_U =40 °C, switching element off	&le 100 µA
No-load supply current		&le 10 mA
Operating voltage indicator		LED, green
Switching state indicator		LED, yellow
Approvals and certificates
UL approval		cULus Listed, General Purpose
CSA approval		cCSAus Listed, General Purpose
CCC approval		Certified by China Compulsory Certification (CCC)
Ambient conditions
Ambient temperature		-25 ... 70 °C (-13 ... 158 °F)
Storage temperature		-25 ... 85 °C (-13 ... 185 °F)
Mechanical specifications
Connection type		screw terminals
Information for connection		A maximum of two conductors with the same core cross section may be mounted on one terminal connection! tightening torque 1.2 Nm + 10 %
Core cross-section		up to 2.5 mm²
	Minimum core cross-section	without wire end ferrule 0.5 mm² , with connector sleeves 0.34 mm²
	Maximum core cross-section	without wire end ferrule 2.5 mm² , with connector sleeves 1.5 mm²
Housing material		PBT
Sensing face		PBT
Degree of protection		IP68

Индуктивный датчик Inductive sensor NMB15-30GM55-E0 Pepperl+Fuchs

Каталожный номер: 911282

General specifications
Switching function		Normally open (NO)
Output type		NPN
Rated operating distance		15 mm
Installation		flush (Requirements: see drawing below)
Output polarity		DC
Assured operating distance		0 ... 12.15 mm
Actuating element		Ferrous and nonferrous targets
Reduction factor r_Al		0.4
Reduction factor r_Cu		0.2
Reduction factor r₃₀₄		0.85
Reduction factor r_St37		1
Nominal ratings
Operating voltage		10 ... 30 V DC
Switching frequency		0 ... 150 Hz
Hysteresis		3 ... 15 typ. 10 %
Reverse polarity protection		reverse polarity protected
Short-circuit protection		pulsing
Voltage drop		&le 2 V
Operating current		&le 200 mA
Off-state current		&le 10 µA
No-load supply current		&le 10 mA
Operating voltage indicator		LED, green
Switching state indicator		LED, yellow
Approvals and certificates
UL approval		cULus Listed, General Purpose
CSA approval		cCSAus Listed, General Purpose
CCC approval		CCC approval / marking not required for products rated &le36 V
Ambient conditions
Ambient temperature		-25 ... 70 °C (-13 ... 158 °F)
Mechanical specifications
Connection type		cable PUR , 2 m
Core cross-section		0.5 mm²
Housing material		Stainless steel 1.4305 / AISI 303
Sensing face		Stainless steel 1.4305 / AISI 303
Housing diameter		30 mm
Degree of protection		IP69K

Индуктивный датчик Inductive sensor NJ8-18GK-N-20M Pepperl+Fuchs

Каталожный номер: 124948

General specifications
Switching function		Normally closed (NC)
Output type		NAMUR
Rated operating distance		8 mm
Installation		non-flush
Assured operating distance		0 ... 6.48 mm
Reduction factor r_Al		0.4
Reduction factor r_Cu		0.3
Reduction factor r₃₀₄		0.85
Nominal ratings
Nominal voltage		8 V
Switching frequency		0 ... 200 Hz
Hysteresis		typ. %
Current consumption
	Measuring plate not detected	min. 3 mA
	Measuring plate detected	&le 1 mA
Compliance with standards and directives
Standard conformity
	NAMUR	EN 60947-5-6:2000 IEC 60947-5-6:1999
Approvals and certificates
UL approval		cULus Listed, General Purpose
CSA approval		cCSAus Listed, General Purpose
CCC approval		CCC approval / marking not required for products rated &le36 V
Ambient conditions
Ambient temperature		-25 ... 100 °C (-13 ... 212 °F)
Mechanical specifications
Connection type		cable PVC , 20 m
Core cross-section		0.75 mm²
Housing material		PBT/PPS
Sensing face		PBT
Housing diameter		18 mm
Degree of protection		IP68
Cable
	Bending radius	> 10 x cable diameter
General information
Use in the hazardous area		see instruction manuals
	Category	2G 1D

Индуктивный датчик Inductive sensor NMN20-18GH50-E2 Pepperl+Fuchs

Каталожный номер: 288268

General specifications
Switching function		Normally open (NO)
Output type		PNP
Rated operating distance		20 mm
Installation		non-flush
Output polarity		DC
Assured operating distance		0 ... 16.2 mm
Reduction factor r_Al		1
Reduction factor r_Cu		0.9
Reduction factor r₃₀₄		0.3 (0.6 of material thickness 2 mm)
Reduction factor r_St37		1
Output type		3-wire
Nominal ratings
Installation conditions
	A	34 mm (mild steel) 36 mm (stainless steel) 20 mm (aluminum) 22 mm (brass)
	B	41 mm
	C	60 mm
	F	200 mm
Operating voltage		10 ... 30 V
Switching frequency		0 ... 200 Hz
Hysteresis		3 ... 15 typ. 5 %
Reverse polarity protection		yes
Short-circuit protection		yes
Voltage drop		&le 2 V
Operating current		0 ... 200 mA
Off-state current		&le 0.1 mA
No-load supply current		&le 10 mA
Switching state indicator		LED, yellow
Limit data
Operating pressure statically		60 bar (870.2 psi) max.
Approvals and certificates
UL approval		cULus Listed, General Purpose
CCC approval		CCC approval / marking not required for products rated &le36 V
Ambient conditions
Ambient temperature		-25 ... 85 °C (-13 ... 185 °F)
Mechanical specifications
Connection type		cable TPE-S , 2 m 3 x 0.34 mm²
Housing material		Stainless steel 1.4435 / AISI 316L
Sensing face		Stainless steel 1.4435 / AISI 316L
Degree of protection		IP68 / IP69K
Mass		112 g

Индуктивный датчик Inductive slot sensor SJ3,5-N LED Pepperl+Fuchs

Каталожный номер: 106586

General specifications
Switching function		Normally closed (NC)
Output type		NAMUR
Slot width		3.5 mm
Depth of immersion (lateral)		5 ... 7 mm , typ. 6 mm
Installation
Output type		2-wire
Nominal ratings
Nominal voltage		8.2 V (R_i approx. 1 k&Omega)
Operating voltage		5 ... 25 V
Switching frequency		0 ... 3000 Hz
Hysteresis		0.1 ... 0.4 mm
Reverse polarity protection		reverse polarity protected
Suitable for 2:1 technology		yes , with reverse polarity protection diode
Current consumption
	Measuring plate not detected	&ge 3 mA
	Measuring plate detected	&le 1 mA
Switching state indicator		LED, yellow
Functional safety related parameters
MTTF_d		2370 a
Mission Time (T_M)		20 a
Diagnostic Coverage (DC)		0 %
Compliance with standards and directives
Standard conformity
	NAMUR	EN 60947-5-6:2000 IEC 60947-5-6:1999
Approvals and certificates
UL approval		cULus Listed, General Purpose
CSA approval		cCSAus Listed, General Purpose
CCC approval		CCC approval / marking not required for products rated &le36 V
Ambient conditions
Ambient temperature		-25 ... 100 °C (-13 ... 212 °F)
Mechanical specifications
Connection type		flexible leads LiY , 500 mm
Core cross-section		0.14 mm²
Housing material		PBT
Degree of protection		IP67
General information
Use in the hazardous area		see instruction manuals
	Category	2G

Индуктивный датчик Inductive sensor NJ40+U1+A2-T Pepperl+Fuchs

Каталожный номер: 84809

General specifications
Switching function		complementary
Output type		PNP
Rated operating distance		40 mm
Installation		non-flush
Output polarity		DC
Assured operating distance		0 ... 32.4 mm
Reduction factor r_Al		0.4
Reduction factor r_Cu		0.3
Reduction factor r₃₀₄		0.85
Nominal ratings
Operating voltage		10 ... 60 V
Switching frequency		0 ... 300 Hz
Hysteresis		typ. 3 %
Reverse polarity protection		reverse polarity protected
Short-circuit protection		pulsing
Voltage drop		&le 3 V
Operating current		0 ... 200 mA
No-load supply current		&le 20 mA
Operating voltage indicator		LED, green
Switching state indicator		LED, yellow
Approvals and certificates
UL approval		cULus Listed, General Purpose
CSA approval		cCSAus Listed, General Purpose
CCC approval		Certified by China Compulsory Certification (CCC)
Ambient conditions
Ambient temperature		-25 ... 100 °C (-13 ... 212 °F)
Mechanical specifications
Connection type		screw terminals
Information for connection		A maximum of two conductors with the same core cross section may be mounted on one terminal connection! tightening torque 1.2 Nm + 10 %
Core cross-section		up to 2.5 mm²
	Minimum core cross-section	without wire end ferrule 0.5 mm² , with connector sleeves 0.34 mm²
	Maximum core cross-section	without wire end ferrule 2.5 mm² , with connector sleeves 1.5 mm²
Housing material		PBT
Sensing face		PBT
Degree of protection		IP68

Индуктивный датчик Inductive sensor NRN6-6,5S40-E2-V3 Pepperl+Fuchs

Каталожный номер: 250531

General specifications
Switching function		Normally open (NO)
Output type		PNP
Rated operating distance		6 mm
Installation		non-flush
Output polarity		DC
Assured operating distance		0 ... 4.86 mm
Reduction factor r_Al		1
Reduction factor r_Cu		1
Reduction factor r₃₀₄		1
Reduction factor r_St37		1
Nominal ratings
Operating voltage		10 ... 30 V
Switching frequency		0 ... 2500 Hz
Hysteresis		type 5 %
Reverse polarity protection		reverse polarity protected
Short-circuit protection		pulsing
Voltage drop		&le 2.5 V
Operating current		0 ... 200 mA
Off-state current		0 ... 0.5 mA typ. 0.1 µA at 25 °C
No-load supply current		&le 15 mA
Constant magnetic field		200 mT
Alternating magnetic field		200 mT
Switching state indicator		Multihole-LED, yellow
Functional safety related parameters
MTTF_d		1010.5 a
Mission Time (T_M)		20 a
Diagnostic Coverage (DC)		0 %
Approvals and certificates
UL approval		cULus Listed, General Purpose
CSA approval		cCSAus Listed, General Purpose
CCC approval		CCC approval / marking not required for products rated &le36 V
Ambient conditions
Ambient temperature		-25 ... 70 °C (-13 ... 158 °F)
Storage temperature		-45 ... 85 °C (-49 ... 185 °F)
Mechanical specifications
Connection type		Connector M8 x 1 , 3-pin
Housing material		Stainless steel 1.4305 / AISI 303
Sensing face		LCP , green
Housing diameter		6.5 mm
Degree of protection		IP67

Общие характеристики
Функция переключения		Нормально разомкнутый (NO)
Тип выхода		PNP
Номинальная дистанция срабатывания		8 мм
Монтаж		утопленный
Полярность выхода		DC
Гарантированная дистанция срабатывания		0... 6,48 мм
Коэффициент снижения r_Al		1
Коэффициент снижения r_Cu		1
Коэффициент снижения r₃₀₄		1
Коэффициент снижения r_St37		1
Тип выхода		3-проводный
Номинальные параметры
Рабочее напряжение		10... 30 В DC
Частота переключения		0... 1200 Гц
Гистерезис		тип. 5 %
Защита от переполюсовки		имеется
Защита от короткого замыкания		импульсная
Падение напряжения		≤ 2 В
Номинальное изоляционное напряжение		60 В
Ток нагрузки		0... 200 мА
Ток в выключенном состоянии		0... 0,5 мА, тип. 0,1 мкА при 25 °C
Потребление без нагрузки		≤ 12 мА
Постоянное магнитное поле		200 мТл
Переменное магнитное поле		200 мТл
Индикатор состояния		многоточечный светодиод, жёлтый
Параметры, связанные с функциональной безопасностью
MTTF_d		1393 года
Срок службы (T_M)		20 лет
Охват диагностики (DC)		0 %
Одобрения и сертификаты
Класс защиты		II
	Номинальное изоляционное напряжение	60 В
	Номинальное выдерживаемое импульсное напряжение	800 В
UL		cULus Listed, General Purpose Источник питания класса 2
CSA		cCSAus Listed, General Purpose Источник питания класса 2
CCC		Сертификация CCC/маркировка не требуется для изделий с номиналом ≤36 В
Условия окружающей среды
Температура окружающей среды		-25... 70 °C (-13... 158 °F)
Температура хранения		-40... 85 °C (-40... 185 °F)
Механические характеристики
Тип подключения		Разъём M12 x 1, 4-контактный
Материал корпуса		Нержавеющая сталь 1.4305 / AISI 303
Чувствительная поверхность		PBT
Диаметр корпуса		18 мм
Степень защиты		IP67
Масса		36 г
Общая информация
Комплект поставки		В комплект поставки входят 2 самоконтрящиеся гайки
