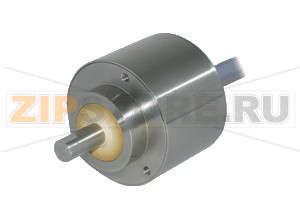

| General specifications | ||
|---|---|---|
| Detection type | photoelectric sampling | |
| Pulse count | max. 25000 , see table | |
| Functional safety related parameters | ||
| MTTFd | 200 a | |
| Mission Time (TM) | 25 a | |
| L10h | 70 E+9 at 6000 rpm | |
| Diagnostic Coverage (DC) | 0 % | |
| Electrical specifications | ||
| Operating voltage | 10 ... 30 V DC or 5 V DC | |
| No-load supply current | max. 100 mA | |
| Output | ||
| Output type | push-pull, incremental or RS 422, incremental | |
| Load current | max. per channel 40 mA , short-circuit prtected (not with Ub), reverse polarity protected | |
| Output frequency | max. 600 kHz | |
| Rise time | 170 ns | |
| Connection | ||
| Cable | 2 m fixed cable | |
| Approvals and certificates | ||
| ECOLAB | material compatibility attested for: P3-topactive DES P3-topax 19 P3-topax 56 P3-topax 66 P3-topax 91 de-mineralized water as zero value | |
| Ambient conditions | ||
| Operating temperature | -20 ... 80 °C (-4 ... 176 °F) | |
| Storage temperature | -20 ... 80 °C (-4 ... 176 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP67 / IP69K | |
| Material | ||
| Housing | stainless steel V4A | |
| Flange | stainless steel V4A | |
| Shaft | stainless steel V4A | |
| Mass | approx. 600 g | |
| Rotational speed | max. 3600 min -1 | |
| Starting torque | approx. 1 Ncm at room temperature | |
| Shaft load | ||
| Axial | max. 100 N | |
| Radial | max. 100 N | |
| Life span | &ge 1 x 109 revolutions (max. shaft loading) | |
| Производитель | Pepperl+Fuchs |
Все информационные материалы, представленные на сайте, носят справочный характер и не могут в полной мере передавать достоверную информацию о свойствах и характеристиках Инкрементальный поворотный шифратор Incremental rotary encoder RVI58L Pepperl+Fuchs.
Фотография на сайте служит дополнительным источником для определения совместимости запчастей с Вашим оборудованием, и не может являться основным. Основной источник по совместимости запчастей - актуальная документация производителя оборудования, из которой значимой информацией для заказа являются: название запчасти и каталожный номер.
Запасные части и комплектующие подбираются самостоятельно покупателем строго по каталожным номерам из официальных деталировок производителей. В случае, если номенклатура товара совпадает с фактически поставленной, но не подходит на оборудование - в ее замене или возврате может быть отказано.
Цена Инкрементальный поворотный шифратор Incremental rotary encoder RVI58L Pepperl+Fuchs на сайте имеет информационный характер и может отличаться от цены в коммерческом предложении.
| General specifications | ||
|---|---|---|
| Detection type | photoelectric sampling | |
| Pulse count | 1024 and 2048 | |
| Functional safety related parameters | ||
| Safety Integrity Level (SIL) | SIL 3 | |
| Performance level (PL) | PL e | |
| MTTFd | 709 a | |
| Mission Time (TM) | 10 a | |
| PFHd | 4.35 E-9 | |
| PFD | 3.1 E-5 | |
| L10h | 70 E+9 at 6000 rpm | |
| Diagnostic Coverage (DC) | 98.9 % | |
| Electrical specifications | ||
| Operating voltage | 5 V DC ± 5 % | |
| No-load supply current | max. 70 mA | |
| Output | ||
| Output type | sine / cosine | |
| Amplitude | 1 Vss ± 10 % | |
| Load current | max. per channel 10 mA , short-circuit protected, reverse polarity protected | |
| Output frequency | max. 200 kHz (3 dB limit) | |
| Connection | ||
| Cable | &empty7.8 mm, 6 x 2 x 0.14 mm2, 1 m | |
| Standard conformity | ||
| Degree of protection | DIN EN 60529, IP65 | |
| Climatic testing | DIN EN 60068-2-78 , no moisture condensation | |
| Emitted interference | EN 61000-6-4:2007/A1:2011 | |
| Noise immunity | DIN EN 61000-6-2 , advanced testing level to IEC 61326-3-1 | |
| Shock resistance | DIN EN 60068-2-27, 100 g, 3 ms | |
| Vibration resistance | DIN EN 60068-2-6, 10 g, 55 ... 2000 Hz | |
| Functional safety | IEC 61508:2000 IEC 62061:2005 ISO 13849-1:2006 IEC 61800-5-2:2007 EN 50178:1997 IEC 61326-3-1:2007 Suitable up to SIL 3, PL e depending from configuration, see manual and report | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose, Class 2 Power Source | |
| Ambient conditions | ||
| Operating temperature | -5 ... 80 °C (23 ... 176 °F) , movable cable -20 ... 80 °C (-4 ... 176 °F), fixed cable | |
| Storage temperature | -40 ... 100 °C (-40 ... 212 °F) | |
| Mechanical specifications | ||
| Material | ||
| Housing | powder coated aluminum | |
| Flange | 3.1645 aluminum | |
| Shaft | Stainless steel 1.4305 / AISI 303 | |
| Mass | approx. 350 g | |
| Rotational speed | max. 12000 min -1 | |
| Moment of inertia | &le 25 gcm2 | |
| Starting torque | &le 1.5 Ncm | |
| Shaft load | ||
| Axial | 40 N at max. 6000 min-1 10 N at max. 12000 min-1 | |
| Radial | 60 N at max. 6000 min-1 20 N at max. 12000 min-1 | |
| General specifications | ||
|---|---|---|
| Pulse count | max. 5000 | |
| Electrical specifications | ||
| Operating voltage | 5 V DC ± 5 % | |
| No-load supply current | max. 150 mA | |
| Output | ||
| Output type | RS 422, incremental | |
| Voltage drop | ||
| Load current | max. per channel 20 mA , conditionally short-circuit proof | |
| Output frequency | max. 100 kHz | |
| Rise time | 100 ns | |
| De-energized delay | 100 ns | |
| Connection | ||
| Connector | type 9416 (M23), 12-pin | |
| Cable | &empty6 mm, 4 x 2 x 0.14 mm2, 2 m | |
| Standard conformity | ||
| Degree of protection | DIN EN 60529, IP65 | |
| Emitted interference | EN 61000-6-4:2007/A1:2011 | |
| Noise immunity | EN 61000-6-2:2005 | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose, Class 2 Power Source | |
| Ambient conditions | ||
| Operating temperature | ||
| Glass disk | -20 ... 70 °C (-4 ... 158 °F) | |
| Plastic disk | -20 ... 60 °C (-4 ... 140 °F) | |
| Storage temperature | ||
| Glass disk | -40 ... 70 °C (-40 ... 158 °F) | |
| Plastic disk | -40 ... 60 °C (-40 ... 140 °F) | |
| Mechanical specifications | ||
| Material | ||
| Combination 1 | housing: stainless steel 1.4301 / AISI 304 flange: aluminum 3.1645 shaft: stainless steel 1.4305 / AISI 303 | |
| Combination 2 (Inox) | housing: stainless steel flange: stainless steel shaft: stainless steel | |
| Mass | approx. 1250 g (combination 1) approx. 2200 g (combination 2) | |
| Rotational speed | max. 6000 min -1 | |
| Moment of inertia | < 270 gcm2 | |
| Starting torque | &le 5 Ncm | |
| Shaft load | ||
| Axial | 60 N | |
| Radial | 80 N | |
| General specifications | ||
|---|---|---|
| Detection type | photoelectric sampling | |
| Pulse count | max. 5000 | |
| Functional safety related parameters | ||
| MTTFd | 140 a | |
| Mission Time (TM) | 20 a | |
| L10h | 70 E+9 at 6000 rpm | |
| Diagnostic Coverage (DC) | 0 % | |
| Electrical specifications | ||
| Operating voltage | 10 ... 30 V DC | |
| No-load supply current | max. 50 mA | |
| Output | ||
| Output type | RS 422, incremental | |
| Load current | max. per channel 20 mA , conditionally short-circuit proof (not with Ub), reverse polarity protected | |
| Output frequency | max. 100 kHz | |
| Rise time | 100 ns | |
| De-energized delay | 100 ns | |
| Connection | ||
| Connector | type 9415 (1-20 UNEF), 7-pin type 9419 (1 1/8-18 UNEF), 10-pin | |
| Cable | &empty7.8 mm, 6 x 2 x 0.14 mm2, 2 m or 5 m | |
| Standard conformity | ||
| Degree of protection | DIN EN 60529, IP54 (without shaft seal)/IP65 (with shaft seal) | |
| Climatic testing | DIN EN 60068-2-3, no moisture condensation | |
| Emitted interference | DIN EN 61000-6-4 | |
| Noise immunity | DIN EN 61000-6-2 | |
| Shock resistance | DIN EN 60068-2-27, 100 g, 3 ms | |
| Vibration resistance | DIN EN 60068-2-6, 10 g, 10 ... 2000 Hz | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose, Class 2 Power Source | |
| Ambient conditions | ||
| Operating temperature | ||
| Glass disk | -20 ... 80 °C (-4 ... 176 °F) | |
| Plastic disk | -20 ... 60 °C (-4 ... 140 °F) | |
| Storage temperature | ||
| Glass disk | -40 ... 100 °C (-40 ... 212 °F) | |
| Plastic disk | -40 ... 70 °C (-40 ... 158 °F) | |
| Mechanical specifications | ||
| Material | ||
| Housing | diecast zinc, not laquered or coated | |
| Flange | 3.1645 aluminum | |
| Shaft | Stainless steel 1.4305 / AISI 303 | |
| Mass | approx. 397 g | |
| Rotational speed | max. 12000 min -1 | |
| Moment of inertia | &le 25 gcm2 | |
| Starting torque | &le 1.5 Ncm (with shaft seal) &le 1 Ncm (without shaft seal) | |
| Shaft load | ||
| Axial | 40 N at max. 6000 min-1 10 N at max. 12000 min-1 | |
| Radial | 60 N at max. 6000 min-1 20 N at max. 12000 min-1 | |
| General specifications | ||
|---|---|---|
| Detection type | photoelectric sampling | |
| Pulse count | 512 , 600 , 1024 , 2048 | |
| Functional safety related parameters | ||
| MTTFd | 140 a | |
| Mission Time (TM) | 20 a | |
| L10h | 50 E+9 at 1750 rpm | |
| Diagnostic Coverage (DC) | 0 % | |
| Electrical specifications | ||
| Operating voltage | 10 ... 30 V DC or 5 V DC ± 5 % (see "Output circuit" in the ordering information) | |
| No-load supply current | max. 70 mA | |
| Output | ||
| Output type | push-pull, incremental or RS 422, incremental (see "Output circuit" in the ordering information) | |
| Voltage drop | < 2.5 V (push-pull, incremental) | |
| Load current | max. per channel 40 mA , short-circuit protected, reverse polarity protected (push-pull, incremental) max. per channel 20 mA , short-circuit protected, reverse polarity protected (RS 422, incremental) | |
| Output frequency | max. 200 kHz | |
| Rise time | 600 ns | |
| De-energized delay | 600 ns | |
| Connection | ||
| Cable | &empty6.5 mm, 4 x 2 x 0.14 mm2, 1 m | |
| Standard conformity | ||
| Degree of protection | DIN EN 60529, IP54 | |
| Climatic testing | DIN EN 60068-2-78 | |
| Emitted interference | EN 61000-6-4:2007/A1:2011 | |
| Noise immunity | EN 61000-6-2:2005 | |
| Shock resistance | DIN EN 60068-2-27, 100 g, 6 ms | |
| Vibration resistance | DIN EN 60068-2-6, 10 g, 10 ... 2000 Hz | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose, Class 2 Power Source | |
| Ambient conditions | ||
| Operating temperature | -5 ... 70 °C (23 ... 158 °F) , movable cable -20 ... 70 °C (-4 ... 158 °F), fixed cable | |
| Storage temperature | -40 ... 80 °C (-40 ... 176 °F) | |
| Mechanical specifications | ||
| Material | ||
| Housing | aluminum | |
| Flange | 3.1645 aluminum | |
| Shaft | Stainless steel 1.4305 / AISI 303 | |
| Mass | approx. 900 g | |
| Rotational speed | max. 3500 min -1 | |
| Starting torque | &le 6 Ncm | |
| Shaft load | ||
| Angle offset | 1 ° | |
| Axial offset | max. 1 mm | |
| General specifications | ||
|---|---|---|
| Detection type | photoelectric sampling | |
| Pulse count | max. 5000 | |
| Electrical specifications | ||
| Operating voltage | 10 ... 30 V DC | |
| No-load supply current | max. 150 mA | |
| Output | ||
| Output type | RS 422, incremental | |
| Load current | max. per channel 20 mA , conditionally short-circuit proof, reverse polarity protected | |
| Output frequency | max. 100 kHz | |
| Rise time | 100 ns | |
| De-energized delay | 100 ns | |
| Connection | ||
| Cable | &empty11.2 mm, 9-core, 2 m | |
| Standard conformity | ||
| Degree of protection | DIN EN 60529, IP66 | |
| Emitted interference | EN 61000-6-4:2007/A1:2011 | |
| Noise immunity | EN 61000-6-2:2005 | |
| Ambient conditions | ||
| Operating temperature | ||
| Gas Ex-area | -40 ... 55 °C (-40 ... 131 °F) | |
| Dust Ex-area | -30 ... 55 °C (-22 ... 131 °F) | |
| Storage temperature | ||
| Gas Ex-area | -40 ... 70 °C (-40 ... 158 °F) | |
| Dust Ex-area | -30 ... 70 °C (-22 ... 158 °F) | |
| Mechanical specifications | ||
| Material | ||
| Housing | 3.1645 aluminum | |
| Flange | 3.1645 aluminum | |
| Shaft | Stainless steel 1.4305 / AISI 303 | |
| Mass | approx. 3000 g | |
| Rotational speed | max. 6000 min -1 | |
| Moment of inertia | 400 gcm2 | |
| Starting torque | < 5 Ncm | |
| Shaft load | ||
| Axial | 60 N | |
| Radial | 80 N | |
| Data for application in connection with hazardous areas | ||
| EC-Type Examination Certificate | ZELM 02 ATEX 0078 X | |
| Group, category, type of protection |  II 2G Ex db IIC T6 Gb II 2D Ex tb IIIC T80°C Db IP66 | |
| Directive conformity | ||
| Directive 94/9/EC | EN 60079-0:2012 EN 60079-1:2007 EN 60079-31:2009 | |
| General specifications | ||
|---|---|---|
| Pulse count | max. 5000 | |
| Electrical specifications | ||
| Operating voltage | 10 ... 30 V DC | |
| No-load supply current | max. 80 mA | |
| Output | ||
| Output type | push-pull, incremental | |
| Voltage drop | < 4 V | |
| Load current | max. per channel 40 mA , short-circuit protected, reverse polarity protected | |
| Output frequency | max. 100 kHz | |
| Rise time | 250 ns | |
| De-energized delay | 250 ns | |
| Connection | ||
| Connector | type 9416 (M23), 12-pin | |
| Cable | &empty6 mm, 4 x 2 x 0.14 mm2, 2 m | |
| Standard conformity | ||
| Degree of protection | DIN EN 60529, IP65 | |
| Emitted interference | EN 61000-6-4:2007/A1:2011 | |
| Noise immunity | EN 61000-6-2:2005 | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose, Class 2 Power Source | |
| Ambient conditions | ||
| Operating temperature | ||
| Glass disk | -20 ... 70 °C (-4 ... 158 °F) | |
| Plastic disk | -20 ... 60 °C (-4 ... 140 °F) | |
| Storage temperature | ||
| Glass disk | -40 ... 70 °C (-40 ... 158 °F) | |
| Plastic disk | -40 ... 60 °C (-40 ... 140 °F) | |
| Mechanical specifications | ||
| Material | ||
| Combination 1 | housing: stainless steel 1.4301 / AISI 304 flange: aluminum 3.1645 shaft: stainless steel 1.4305 / AISI 303 | |
| Combination 2 (Inox) | housing: stainless steel flange: stainless steel shaft: stainless steel | |
| Mass | approx. 1250 g (combination 1) approx. 2200 g (combination 2) | |
| Rotational speed | max. 6000 min -1 | |
| Moment of inertia | < 270 gcm2 | |
| Starting torque | &le 5 Ncm | |
| Shaft load | ||
| Axial | 60 N | |
| Radial | 80 N | |
| General specifications | ||
|---|---|---|
| Detection type | photoelectric sampling | |
| Pulse count | max. 5000 | |
| Functional safety related parameters | ||
| MTTFd | 140 a | |
| Mission Time (TM) | 20 a | |
| L10h | 70 E+9 at 6000 rpm | |
| Diagnostic Coverage (DC) | 0 % | |
| Electrical specifications | ||
| Operating voltage | 5 V DC ± 5 % | |
| No-load supply current | max. 70 mA | |
| Output | ||
| Output type | RS 422, incremental | |
| Load current | max. per channel 20 mA , conditionally short-circuit proof (not with Ub) | |
| Output frequency | max. 200 kHz | |
| Rise time | 100 ns | |
| Connection | ||
| Cable | &empty7.8 mm, 6 x 2 x 0.14 mm2, 1 m | |
| Standard conformity | ||
| Degree of protection | DIN EN 60529, IP64 | |
| Climatic testing | DIN EN 60068-2-3, no moisture condensation | |
| Emitted interference | EN 61000-6-4:2007/A1:2011 | |
| Noise immunity | EN 61000-6-2:2005 | |
| Shock resistance | DIN EN 60068-2-27, 100 g, 3 ms | |
| Vibration resistance | DIN EN 60068-2-6, 10 g, 10 ... 2000 Hz | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose, Class 2 Power Source | |
| Ambient conditions | ||
| Operating temperature | ||
| Glass disk | -30 ... 70 °C (-22 ... 158 °F) , fixed cable | |
| Plastic disk | -30 ... 60 °C (-22 ... 140 °F) , fixed cable | |
| Storage temperature | ||
| Glass disk | -30 ... 70 °C (-22 ... 158 °F) | |
| Plastic disk | -30 ... 70 °C (-22 ... 158 °F) | |
| Mechanical specifications | ||
| Material | ||
| Housing | powder coated aluminum | |
| Flange | aluminum | |
| Shaft | Stainless steel | |
| Mass | approx. 350 g | |
| Rotational speed | max. 6000 min -1 | |
| Moment of inertia | &le 25 gcm2 | |
| Starting torque | &le 1.5 Ncm | |
| Shaft load | ||
| Axial | 40 N | |
| Radial | 60 N | |
| Data for application in connection with hazardous areas | ||
| EC-Type Examination Certificate | ||
| Group, category, type of protection | II 3G Ex nA IIB T4 Gc II 3D Ex tc IIIC T105°C Dc IP64 | |
| Directive conformity | ||
| Directive 94/9/EC | EN 60079-0:2012 , EN 60079-15:2010 , EN 60079-31:2009 | |
| General specifications | ||
|---|---|---|
| Pulse count | max. 1250 | |
| Electrical specifications | ||
| Operating voltage | 10 ... 30 V DC | |
| No-load supply current | max. 80 mA | |
| Output | ||
| Output type | push-pull, incremental | |
| Voltage drop | < 4 V | |
| Load current | max. per channel 40 mA , short-circuit protected, reverse polarity protected | |
| Output frequency | max. 50 kHz | |
| Rise time | 250 ns | |
| De-energized delay | 250 ns | |
| Connection | ||
| Terminal compartment | with cable gland PG7 | |
| Standard conformity | ||
| Degree of protection | DIN EN 60529, IP50 | |
| Emitted interference | EN 61000-6-4:2007/A1:2011 | |
| Noise immunity | EN 61000-6-2:2005 | |
| Ambient conditions | ||
| Operating temperature | ||
| Plastic disk | -20 ... 60 °C (-4 ... 140 °F) | |
| Storage temperature | ||
| Plastic disk | -40 ... 60 °C (-40 ... 140 °F) | |
| Mechanical specifications | ||
| Material | ||
| Housing | nickel-plated plastic | |
| Flange | Diecast zinc | |
| Shaft | Stainless steel 1.4305 / AISI 303 | |
| Mass | approx. 400 g | |
| Rotational speed | max. 6000 min -1 | |
| Moment of inertia | &le 36 gcm2 | |
| Starting torque | &le 1 Ncm | |
| Shaft load | ||
| Axial | 40 N | |
| Radial | 60 N | |
| General specifications | ||
|---|---|---|
| Detection type | photoelectric sampling | |
| Pulse count | max. 50000 | |
| Functional safety related parameters | ||
| MTTFd | 140 a | |
| Mission Time (TM) | 20 a | |
| L10 | 50 E+9 at 1750 rpm | |
| Diagnostic Coverage (DC) | 0 % | |
| Electrical specifications | ||
| Operating voltage | 10 ... 30 V DC or 5 V DC ± 5 % (see "Output circuit" in the ordering information) | |
| No-load supply current | max. 70 mA | |
| Output | ||
| Output type | push-pull, incremental or RS-422, incremental (see "Output circuit" in the ordering information) | |
| Voltage drop | < 2.5 V (push-pull, incremental) | |
| Load current | max. per channel 40 mA , short-circuit protected, reverse polarity protected (push-pull, incremental) max. per channel 20 mA , short-circuit protected, reverse polarity protected (RS 422, incremental) | |
| Output frequency | max. 200 kHz | |
| Rise time | 600 ns | |
| De-energized delay | 600 ns | |
| Connection | ||
| Connector | type 9416 (M23), 12-pin, type 9416L (M23), 12-pin | |
| Cable | &empty6.5 mm, 4 x 2 x 0.14 mm2, 1 m | |
| Standard conformity | ||
| Degree of protection | DIN EN 60529, IP65 | |
| Climatic testing | DIN EN 60068-2-78 | |
| Emitted interference | EN 61000-6-4:2007/A1:2011 | |
| Noise immunity | EN 61000-6-2:2005 | |
| Shock resistance | DIN EN 60068-2-27, 100 g, 6 ms | |
| Vibration resistance | DIN EN 60068-2-6, 10 g, 10 ... 2000 Hz | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose, Class 2 Power Source | |
| Ambient conditions | ||
| Operating temperature | -5 ... 70 °C (23 ... 158 °F) , movable cable -20 ... 70 °C (-4 ... 158 °F), fixed cable | |
| Storage temperature | -40 ... 80 °C (-40 ... 176 °F) | |
| Mechanical specifications | ||
| Material | ||
| Housing | aluminum, blank | |
| Flange | 3.1645 aluminum | |
| Shaft | Stainless steel 1.4305 / AISI 303 With insulating sleeve provided as an option, made from PPS GF40 material with internal diameters of 16 mm, 25 mm, 30 mm, 38 mm, isolation voltage of 3 kV (see type code) | |
| Mass | approx. 900 g | |
| Rotational speed | max. 3500 min -1 | |
| Starting torque | &le 6 Ncm | |
| Shaft load | ||
| Angle offset | 1 ° | |
| Axial offset | max. 1 mm | |
| General specifications | ||
|---|---|---|
| Detection type | photoelectric sampling | |
| Pulse count | max. 2048 | |
| Electrical specifications | ||
| Operating voltage | 5 V DC ± 5 % | |
| No-load supply current | max. 70 mA | |
| Output | ||
| Output type | sine / cosine | |
| Amplitude | 1 Vss ± 10 % | |
| Load current | max. per channel 10 mA , short-circuit protected, reverse polarity protected | |
| Output frequency | max. 200 kHz (3 dB limit) | |
| Connection | ||
| Cable | &empty6.5 mm, 4 x 2 x 0.14 mm2, 1 m | |
| Standard conformity | ||
| Degree of protection | DIN EN 60529, IP65 | |
| Climatic testing | DIN EN 60068-2-78 | |
| Emitted interference | EN 61000-6-4:2007/A1:2011 | |
| Noise immunity | DIN EN 61000-6-2 | |
| Shock resistance | DIN EN 60068-2-27, 100 g, 6 ms | |
| Vibration resistance | DIN EN 60068-2-6, 10 g, 10 ... 2000 Hz | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose, Class 2 Power Source | |
| Ambient conditions | ||
| Operating temperature | -5 ... 70 °C (23 ... 158 °F) , movable cable -20 ... 70 °C (-4 ... 158 °F), fixed cable | |
| Storage temperature | -40 ... 80 °C (-40 ... 176 °F) | |
| Mechanical specifications | ||
| Material | ||
| Housing | aluminum, blank | |
| Flange | 3.1645 aluminum | |
| Shaft | Stainless steel 1.4305 / AISI 303 | |
| Mass | approx. 900 g | |
| Rotational speed | max. 3500 min -1 | |
| Starting torque | &le 6 Ncm | |
| Shaft load | ||
| Angle offset | 1 ° | |
| Axial offset | max. 1 mm | |
| General specifications | ||
|---|---|---|
| Pulse count | max. 5000 | |
| Electrical specifications | ||
| Operating voltage | 10 ... 30 V DC | |
| No-load supply current | max. 150 mA | |
| Output | ||
| Output type | RS 422, incremental | |
| Load current | max. per channel 20 mA , conditionally short-circuit proof, reverse polarity protected | |
| Output frequency | max. 100 kHz | |
| Rise time | 100 ns | |
| De-energized delay | 100 ns | |
| Connection | ||
| Connector | type 42306 (M16), 6-pin type 42308 (M16), 8-pin type 9414 (M16), 5-pin type 9416 (M23), 12-pin | |
| Cable | &empty6 mm, 4 x 2 x 0.14 mm2, 2 m | |
| Standard conformity | ||
| Degree of protection | DIN EN 60529, IP65 | |
| Climatic testing | DIN EN 60068-2-3, no moisture condensation | |
| Emitted interference | EN 61000-6-4:2007/A1:2011 | |
| Noise immunity | EN 61000-6-2:2005 | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose, Class 2 Power Source | |
| Ambient conditions | ||
| Operating temperature | ||
| Glass disk | -20 ... 70 °C (-4 ... 158 °F) | |
| Plastic disk | -20 ... 60 °C (-4 ... 140 °F) | |
| Storage temperature | ||
| Glass disk | -40 ... 70 °C (-40 ... 158 °F) | |
| Plastic disk | -40 ... 60 °C (-40 ... 140 °F) | |
| Mechanical specifications | ||
| Material | ||
| Combination 1 | housing: diecast zinc flange: aluminum 3.1645 shaft: stainless steel 1.4305 / AISI 303 | |
| Combination 2 (Inox) | housing: stainless steel flange: stainless steel shaft: stainless steel | |
| Mass | approx. 335 g (combination 1) approx. 1400 g (combination 2) | |
| Rotational speed | max. 10000 min -1 | |
| Moment of inertia | &le 30 gcm2 | |
| Starting torque | &le 1.5 Ncm | |
| Shaft load | ||
| Axial | 60 N | |
| Radial | 80 N | |
| General specifications | ||
|---|---|---|
| Pulse count | max. 5000 | |
| Electrical specifications | ||
| Operating voltage | 10 ... 30 V DC | |
| No-load supply current | max. 80 mA | |
| Output | ||
| Output type | push-pull, incremental | |
| Voltage drop | < 4 V | |
| Load current | max. per channel 40 mA , short-circuit protected, reverse polarity protected | |
| Output frequency | max. 100 kHz | |
| Rise time | 250 ns | |
| De-energized delay | 250 ns | |
| Connection | ||
| Connector | type 42306 (M16), 6-pin | |
| Cable | &empty6 mm, 5 x 0.38 mm2, 2 m | |
| Standard conformity | ||
| Degree of protection | DIN EN 60529, IP65 | |
| Emitted interference | EN 61000-6-4:2007/A1:2011 | |
| Noise immunity | EN 61000-6-2:2005 | |
| Shock resistance | DIN EN 60068-2-27, 100 g, 3 ms | |
| Vibration resistance | DIN EN 60068-2-6, 10 g, 10 ... 2000 Hz | |
| Ambient conditions | ||
| Operating temperature | ||
| Glass disk | -20 ... 70 °C (-4 ... 158 °F) | |
| Plastic disk | -20 ... 60 °C (-4 ... 140 °F) | |
| Storage temperature | ||
| Glass disk | -40 ... 70 °C (-40 ... 158 °F) | |
| Plastic disk | -40 ... 60 °C (-40 ... 140 °F) | |
| Mechanical specifications | ||
| Material | ||
| Housing | powder coated aluminum | |
| Flange | 3.1645 aluminum | |
| Shaft | Stainless steel 1.4305 / AISI 303 | |
| Mass | approx. 630 g | |
| Rotational speed | max. 6000 min -1 | |
| Moment of inertia | 100 gcm2 | |
| Starting torque | &le 1.5 Ncm | |
| Shaft load | ||
| Axial | 50 N | |
| Radial | 100 N | |
