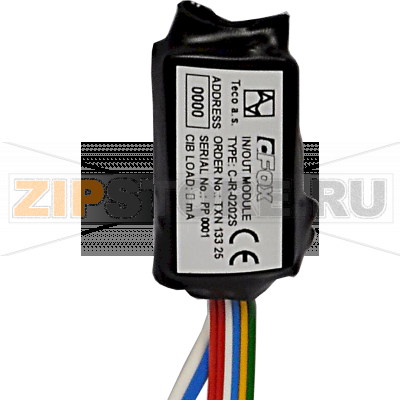

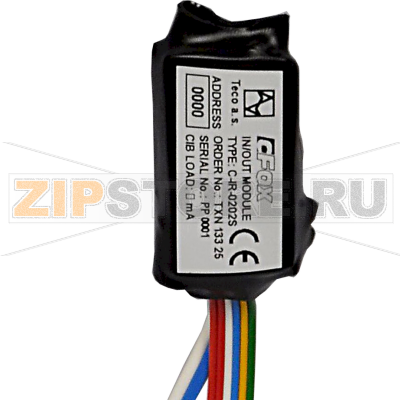

TECO C-IR-0202S

Каталожный номер TXN 133 25
Розничная цена
214 EUR с НДС
array(34) { ["id"]=> string(6) "446960" ["product_id"]=> string(6) "509229" ["id_1c"]=> NULL ["sku"]=> string(10) "TXN 133 25" ["sort"]=> string(1) "0" ["name"]=> string(0) "" ["image_id"]=> NULL ["price"]=> float(21121) ["primary_price"]=> string(10) "222.319646" ["purchase_price"]=> float(0) ["compare_price"]=> float(0) ["count"]=> NULL ["available"]=> string(1) "1" ["stock_base_ratio"]=> NULL ["order_count_min"]=> NULL ["order_count_step"]=> NULL ["status"]=> string(1) "1" ["dimension_id"]=> NULL ["file_name"]=> string(0) "" ["file_size"]=> string(1) "0" ["file_description"]=> NULL ["virtual"]=> string(1) "0" ["ymleasyimport_price_id"]=> string(32) "06140267e13d79c673e3b0f8481665d5" ["id_xmlimport"]=> NULL ["stock"]=> array(0) { } ["unconverted_currency"]=> string(3) "EUR" ["currency"]=> string(3) "RUB" ["frontend_price"]=> float(21121) ["unconverted_price"]=> float(214) ["frontend_compare_price"]=> float(0) ["unconverted_compare_price"]=> float(0) ["original_price"]=> float(21121) ["original_compare_price"]=> float(0) ["features"]=> array(0) { } }
21121 с НДС
Последнее обновление базы:
-
+
Купить в 1 клик
Скидки от суммы заказа
Гарантия от производителя
Ходовые товары на складе
Наличный и безналичный расчет
Доставка по России и СНГ
Добавлено в корзину!

Товаров: 0

На сумму: 0

Продолжить покупки
Оформить заказ
Описание
Оплата
Доставка
Гарантия
Инструкции

Описание товара

The C-IR-0202S module is a dimensionally minimalist module on the CIB bus for relay contact control or for continuous control via voltage analog output. At the same time, it is intended for connection of two passive temperature sensors or binary signals from contacts and their conversion into data for the CIB wiring bus.

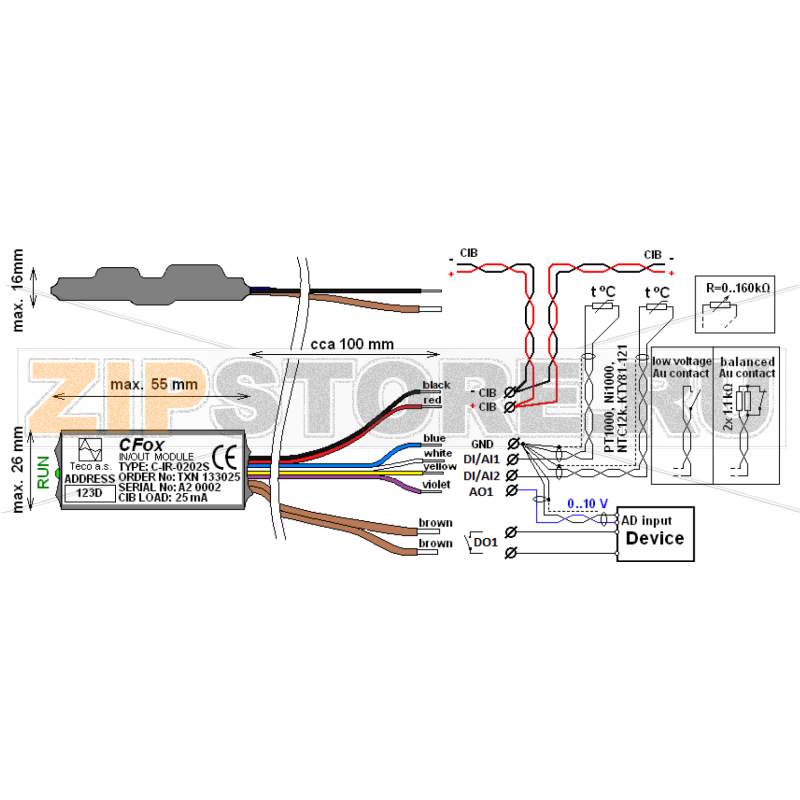

- The resistance from the optional Pt1000, Ni1000, NTC 12k, KTY81-121 sensors against the common GND conductor is linearized in the module and converted directly to a numerical temperature value and then transferred to the basic module via the CIB bus. It is possible to choose the measurement of other resistances in the range of 0 to 160 kΩ, but the conversion to temperature and linearization must be performed in the control panel at the level of the application program.
- Binary signals are connected to the inputs only as a free contact against the common GND conductor.

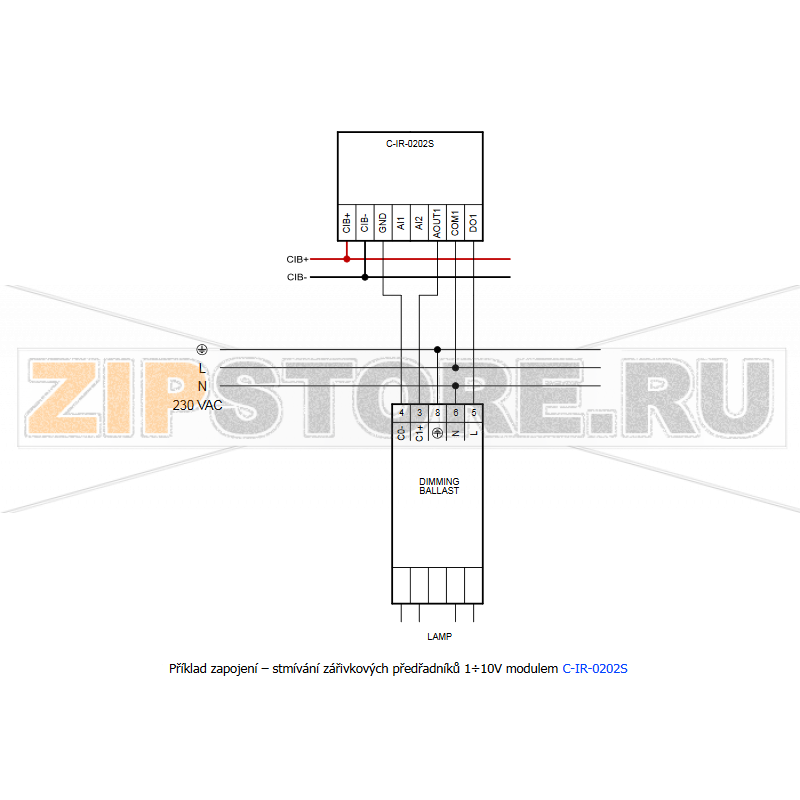

- The voltage of the analog output 0 - 10 V is connected on the conductor against the common conductor GND.
- The output switching contact of the relay is led out by two separate conductors with increased insulation.

Характеристики

Важная информация

Все информационные материалы, представленные на сайте, носят справочный характер и не могут в полной мере передавать достоверную информацию о свойствах и характеристиках TECO C-IR-0202S.

Фотография на сайте служит дополнительным источником для определения совместимости запчастей с Вашим оборудованием, и не может являться основным. Основной источник по совместимости запчастей - актуальная документация производителя оборудования, из которой значимой информацией для заказа являются: название запчасти и каталожный номер.

Запасные части и комплектующие подбираются самостоятельно покупателем строго по каталожным номерам из официальных деталировок производителей. В случае, если номенклатура товара совпадает с фактически поставленной, но не подходит на оборудование - в ее замене или возврате может быть отказано.

Цена TECO C-IR-0202S на сайте имеет информационный характер и может отличаться от цены в коммерческом предложении.
