TECO CP-2090.11NSNN

Каталожный номер TXN 120 90.11NSNN
Розничная цена
1495 EUR с НДС
array(34) { ["id"]=> string(6) "446863" ["product_id"]=> string(6) "509132" ["id_1c"]=> NULL ["sku"]=> string(17) "TXN 120 90.11NSNN" ["sort"]=> string(1) "0" ["name"]=> string(0) "" ["image_id"]=> NULL ["price"]=> float(147547) ["primary_price"]=> string(11) "1553.079722" ["purchase_price"]=> float(0) ["compare_price"]=> float(0) ["count"]=> NULL ["available"]=> string(1) "1" ["stock_base_ratio"]=> NULL ["order_count_min"]=> NULL ["order_count_step"]=> NULL ["status"]=> string(1) "1" ["dimension_id"]=> NULL ["file_name"]=> string(0) "" ["file_size"]=> string(1) "0" ["file_description"]=> NULL ["virtual"]=> string(1) "0" ["ymleasyimport_price_id"]=> string(32) "06140267e13d79c673e3b0f8481665d5" ["id_xmlimport"]=> NULL ["stock"]=> array(0) { } ["unconverted_currency"]=> string(3) "EUR" ["currency"]=> string(3) "RUB" ["frontend_price"]=> float(147547) ["unconverted_price"]=> float(1495) ["frontend_compare_price"]=> float(0) ["unconverted_compare_price"]=> float(0) ["original_price"]=> float(147547) ["original_compare_price"]=> float(0) ["features"]=> array(0) { } }
147547 с НДС
Последнее обновление базы:
-
+
Купить в 1 клик
Скидки от суммы заказа
Гарантия от производителя
Ходовые товары на складе
Наличный и безналичный расчет
Доставка по России и СНГ
Добавлено в корзину!

Товаров: 0

На сумму: 0

Продолжить покупки
Оформить заказ
Описание
Оплата
Доставка
Гарантия
Инструкции

Описание товара

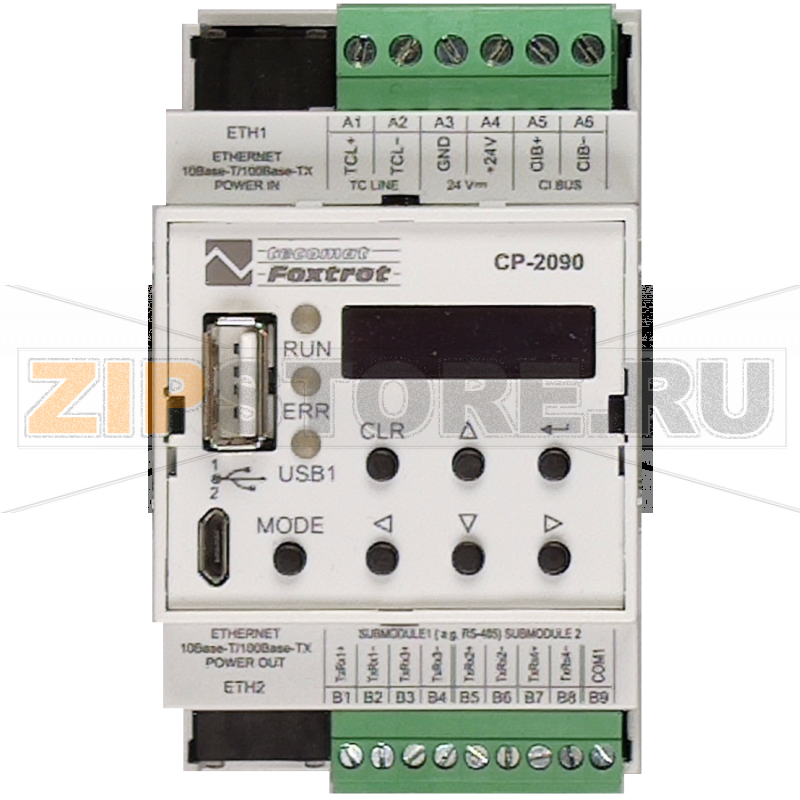

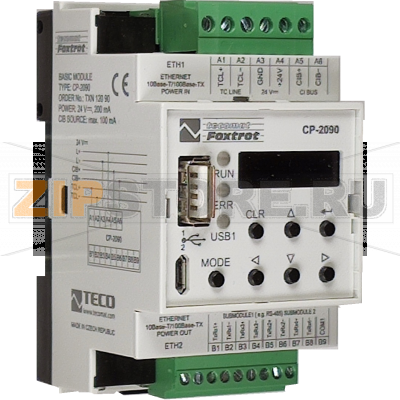

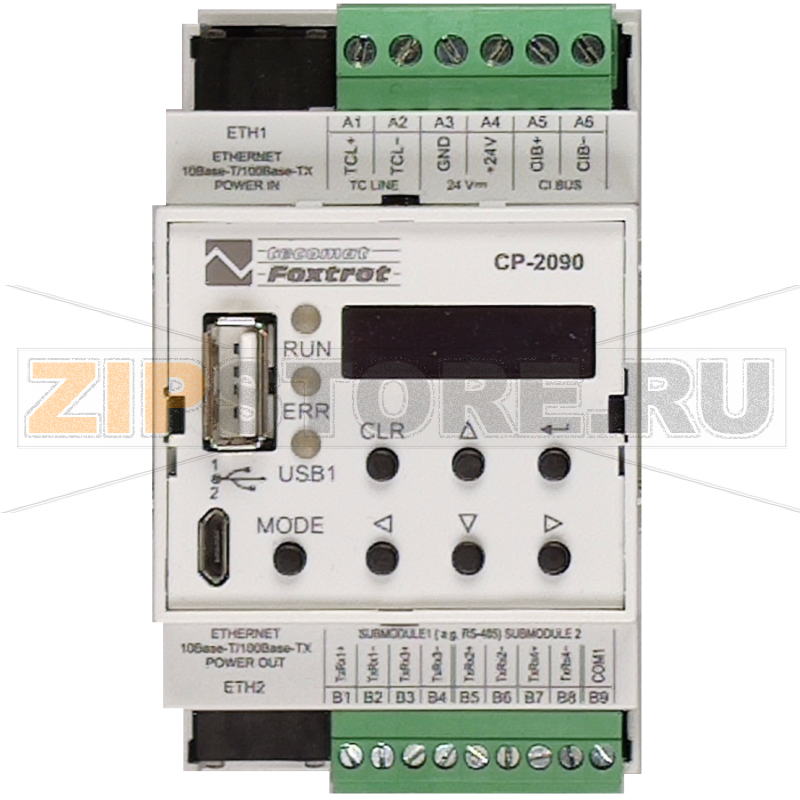

The CP-2090 is the smallest, second-generation Foxtrot base module. It only occupies the width of 3 modules on the DIN rail. It reaches this size due to the absence of any inputs / outputs.
The masters of both system expansion buses - TCL2 and CIB Common Installation Bus® - are a matter of course. It can therefore be extended in the same way as other basic modules.
CP-2090 is therefore suitable as a flexible freely programmable communication center, programmable converter of interfaces and protocols, data logger with its own web server,
with fast and high-capacity data storage up to 1 TB with file system, etc.

Except for the built-in LTE modem, which requires a minimum width of 6M modules, the basic module CP-2090 has all the attributes of the new generation of the central unit:

Communication capabilities of the basic module CP-2090:
  •
  •     2x Ethernet interface 100 Mbit / s, each with up to 32 simultaneous connections (programming and general IP communication)
  •     USB micro (programming)
  •     USB A for Flas memory, WiFi adapter (client and AP - Access point) etc.
  •     Variant with built-in LTE modem for direct wireless connection to the Internet via a mobile network operator

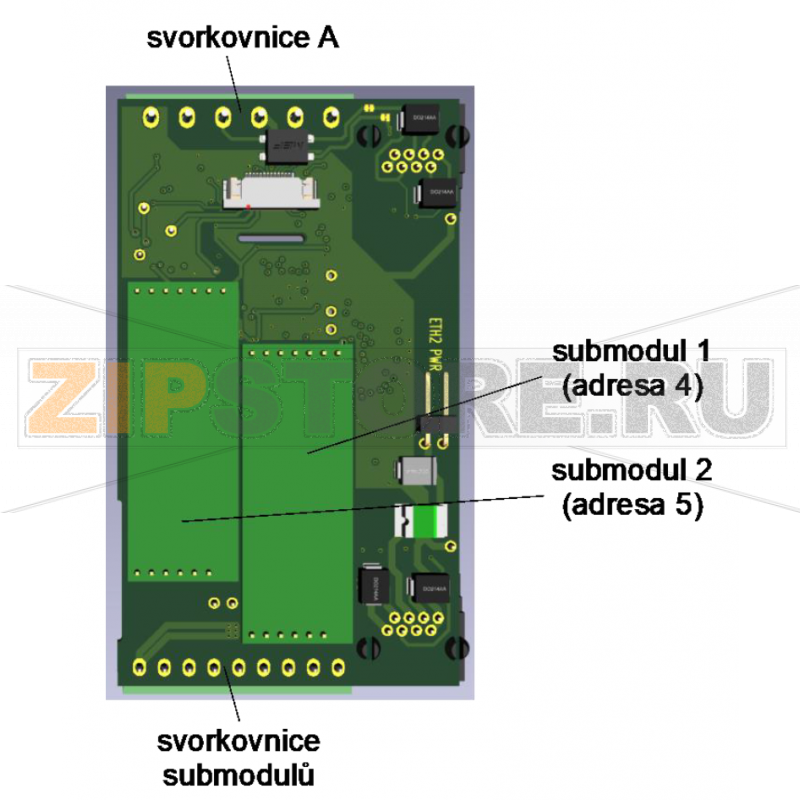

  •     Slots for up to 4 optional serial interfaces RS-485, RS-232

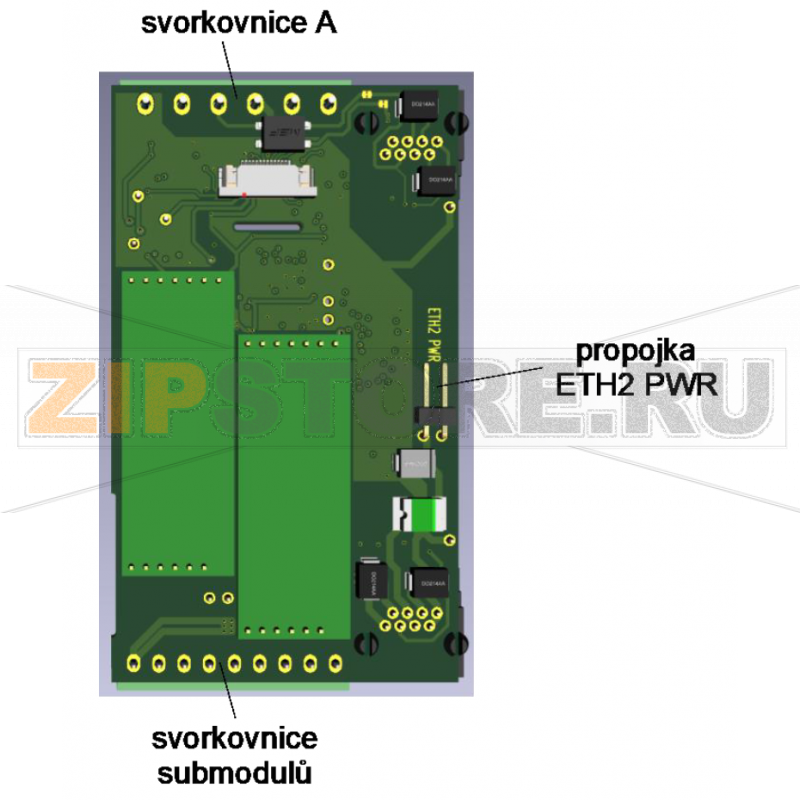

Power supply 24 V DC or via passive PoE - (power over Ethernet)

CP-2090 is equipped with a new powerful central unit (CPU series L) with memory
  •     1 MB for user program,
  •     128 MB internal disk for storing files with parallel access from the LAN as a network disk,
  •     16MB fast RAM disk
  •     microSD card slot up to 1 TB
  •     File management is provided by a journaling file system
  •     Local communication with the user via OLED display (4 lines / graphic) and 6-key keyboard
