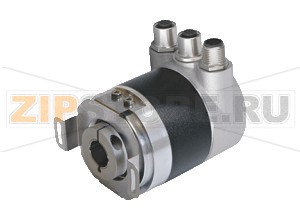

Многооборотный абсолютный шифратор Multiturn absolute encoder ESM58-PN Pepperl+Fuchs

Name: Многооборотный абсолютный шифратор Multiturn absolute encoder ESM58-PN Pepperl+Fuchs
Brand: Pepperl+Fuchs
SKU: T37194

Каталожный номер T37194

Многооборотный абсолютный шифратор Multiturn absolute encoder ESM58-PN Pepperl+Fuchs General specificationsDetection typephotoelectric samplingDevice typeMultiturn absolute encoderFunctional safety related parametersMTTFd120 aMission Time (TM)20 aL10h1.9 E+11 at 6000&nbsprpm and 20/40&nbspN axial/radial shaft loadDiagnostic Coverage (DC)0 %Electrical specificationsOperating voltage10 ... 30 V DCPower consumptionmax. 4 WLinearity&plusmn 0.5 LSB (12 Bit) ,Output codebinary codeCode course (counting direction)programmable,cw ascending (clockwise rotation, code course ascending)cw descending (clockwise rotation, code course descending)InterfaceInterface typePROFINET IOResolutionSingle turnup to 16 BitMultiturn14 BitOverall resolutionup to 30 BitTransfer rate100 MBit/sCycle time&le 1 ms (IRT) &le 10 ms (RT)ConnectionConnectorEthernet: 2 sockets M12 x 1, 4-pin, D-codedSupply: 1 plug M12 x 1, 4-pin, A-codedStandard conformityDegree of protectionDIN&nbspEN&nbsp60529,shaft side: IP64 (without shaft seal)/IP66 (with shaft seal)housing side: IP65 Stainless steel version (INOX): completely IP67Climatic testingDIN&nbspEN&nbsp60068-2-3, no moisture condensationEmitted interferenceEN&nbsp61000-6-4:2007Noise immunityEN&nbsp61000-6-2:2005Shock resistanceDIN&nbspEN&nbsp60068-2-27, 100&nbspg, 6&nbspmsVibration resistanceDIN&nbspEN&nbsp60068-2-6, 10&nbspg, 10&nbsp...&nbsp2000&nbspHzApprovals and certificatesUL approvalcULus Listed, General Purpose, Class 2 Power SourceAmbient conditionsOperating temperature-40 ... 85 °C (-40 ... 185 °F)Storage temperature-40 ... 85 °C (-40 ... 185 °F)Mechanical specificationsMaterialhousing: powder coated aluminumflange: aluminumshaft: stainless steelCombination 1housing: powder coated aluminumflange: aluminumshaft: stainless steelCombination 2 (Inox)housing: stainless steel 1.4305 / AISI 303flange: stainless steel 1.4301 / AISI 304shaft: stainless steel 1.4305 / AISI 303Massapprox. 360 g (combination 1) approx. 910 g (combination 2)Rotational speedmax. 12000 min -1Moment of inertia30 gcm2Starting torque&le 3 Ncm (version without shaft seal)Tightening torque, fastening screwsmax. 1.8 NmShaft loadAngle offset&plusmn 0.9 °Axial offsetstatic: &plusmn 0.3 mm, dynamic: &plusmn 0.1 mmRadial offsetstatic: &plusmn 0.5 mm, dynamic: &plusmn 0.2 mm

Скидки от суммы заказа

Гарантия от производителя

Ходовые товары на складе

Наличный и безналичный расчет

Доставка по России и СНГ

Добавлено в корзину!

Товаров: 0

На сумму: 0

Описание

Оплата

Доставка

Гарантия

Инструкции

Описание товара

General specifications
Detection type		photoelectric sampling
Device type		Multiturn absolute encoder
Functional safety related parameters
MTTF_d		120 a
Mission Time (T_M)		20 a
L_10h		1.9 E+11 at 6000 rpm and 20/40 N axial/radial shaft load
Diagnostic Coverage (DC)		0 %
Electrical specifications
Operating voltage		10 ... 30 V DC
Power consumption		max. 4 W
Linearity		± 0.5 LSB (12 Bit) ,
Output code		binary code
Code course (counting direction)		programmable, cw ascending (clockwise rotation, code course ascending) cw descending (clockwise rotation, code course descending)
Interface
Interface type		PROFINET IO
Resolution
	Single turn	up to 16 Bit
	Multiturn	14 Bit
	Overall resolution	up to 30 Bit
Transfer rate		100 MBit/s
Cycle time		&le 1 ms (IRT) &le 10 ms (RT)
Connection
Connector		Ethernet: 2 sockets M12 x 1, 4-pin, D-coded Supply: 1 plug M12 x 1, 4-pin, A-coded
Standard conformity
Degree of protection		DIN EN 60529, shaft side: IP64 (without shaft seal)/IP66 (with shaft seal) housing side: IP65 Stainless steel version (INOX): completely IP67
Climatic testing		DIN EN 60068-2-3, no moisture condensation
Emitted interference		EN 61000-6-4:2007
Noise immunity		EN 61000-6-2:2005
Shock resistance		DIN EN 60068-2-27, 100 g, 6 ms
Vibration resistance		DIN EN 60068-2-6, 10 g, 10 ... 2000 Hz
Approvals and certificates
UL approval		cULus Listed, General Purpose, Class 2 Power Source
Ambient conditions
Operating temperature		-40 ... 85 °C (-40 ... 185 °F)
Storage temperature		-40 ... 85 °C (-40 ... 185 °F)
Mechanical specifications
Material		housing: powder coated aluminum flange: aluminum shaft: stainless steel
	Combination 1	housing: powder coated aluminum flange: aluminum shaft: stainless steel
	Combination 2 (Inox)	housing: stainless steel 1.4305 / AISI 303 flange: stainless steel 1.4301 / AISI 304 shaft: stainless steel 1.4305 / AISI 303
Mass		approx. 360 g (combination 1) approx. 910 g (combination 2)
Rotational speed		max. 12000 min ^-1
Moment of inertia		30 gcm²
Starting torque		&le 3 Ncm (version without shaft seal)
Tightening torque, fastening screws		max. 1.8 Nm
Shaft load
	Angle offset	± 0.9 °
	Axial offset	static: ± 0.3 mm, dynamic: ± 0.1 mm
	Radial offset	static: ± 0.5 mm, dynamic: ± 0.2 mm

Характеристики

Производитель

Pepperl+Fuchs

Важная информация

Все информационные материалы, представленные на сайте, носят справочный характер и не могут в полной мере передавать достоверную информацию о свойствах и характеристиках Многооборотный абсолютный шифратор Multiturn absolute encoder ESM58-PN Pepperl+Fuchs.

Фотография на сайте служит дополнительным источником для определения совместимости запчастей с Вашим оборудованием, и не может являться основным. Основной источник по совместимости запчастей - актуальная документация производителя оборудования, из которой значимой информацией для заказа являются: название запчасти и каталожный номер.

Запасные части и комплектующие подбираются самостоятельно покупателем строго по каталожным номерам из официальных деталировок производителей. В случае, если номенклатура товара совпадает с фактически поставленной, но не подходит на оборудование - в ее замене или возврате может быть отказано.

Цена Многооборотный абсолютный шифратор Multiturn absolute encoder ESM58-PN Pepperl+Fuchs на сайте имеет информационный характер и может отличаться от цены в коммерческом предложении.
